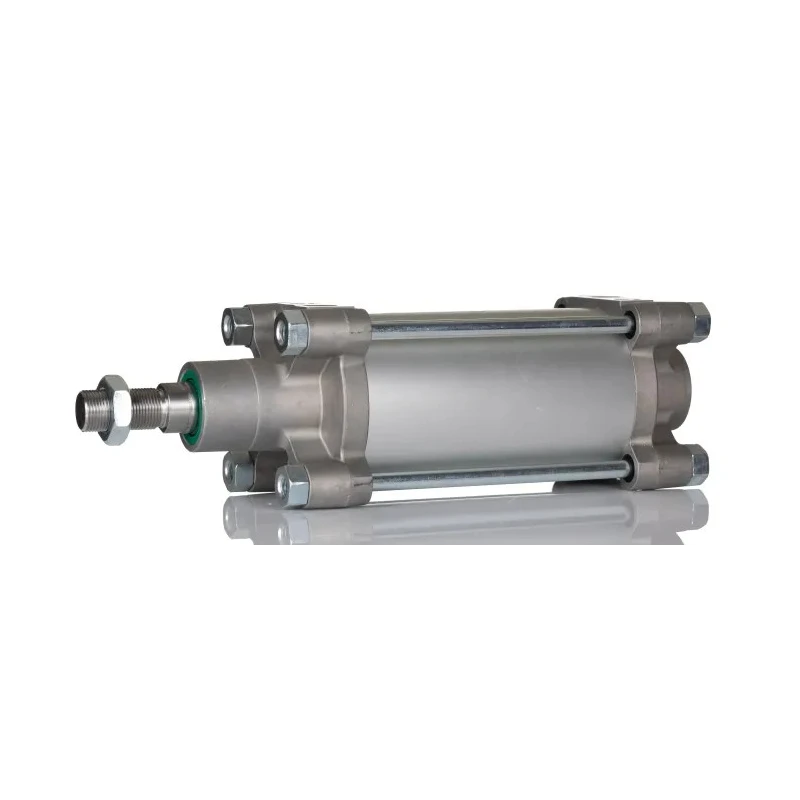

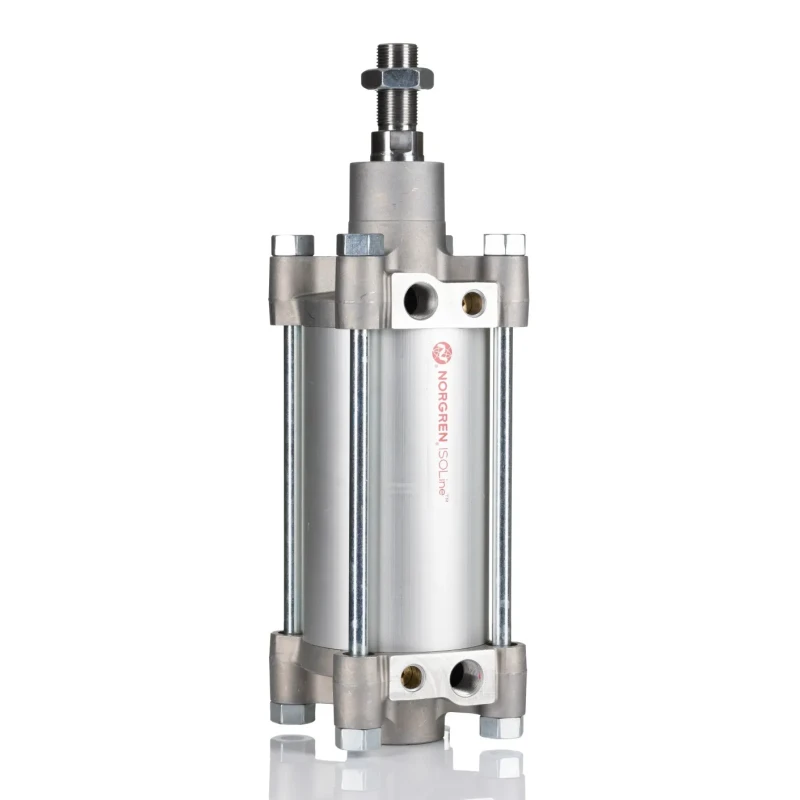

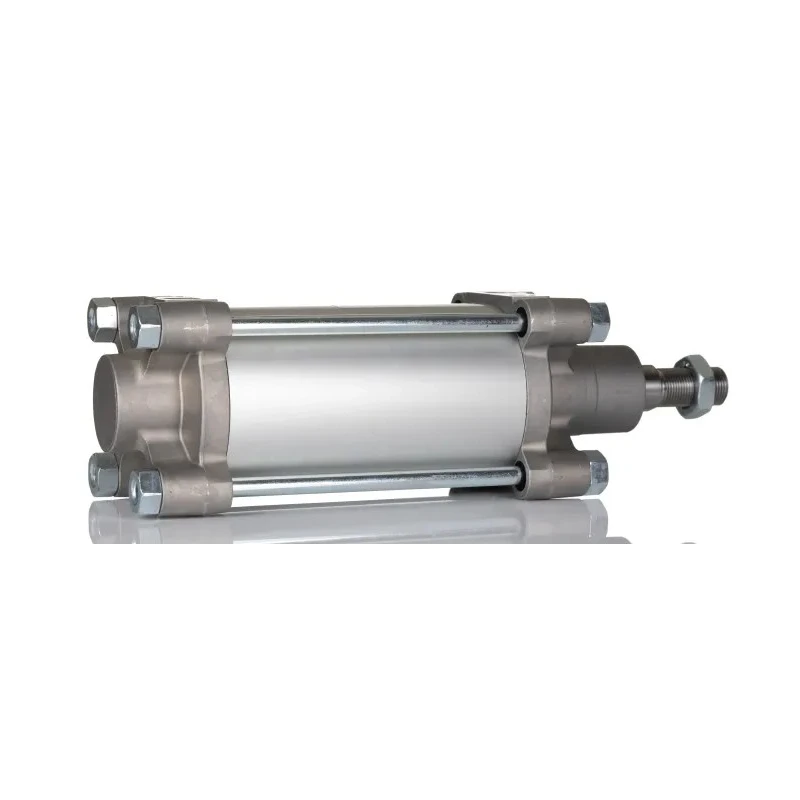

Norgren Double Acting Cylinder RA Series 80mm Bore, 100mm Stroke, Cushioned Aluminium Body RA/802080/M/100

Norgren RA/802080/M/100 Double Acting Cylinder is engineered for precision pneumatic motion control with an 80mm bore and 100mm stroke. This cylinder belongs to the RA series and operates using a double acting mechanism to push and pull the piston rod via air pressure at both ends. Its anodised aluminium body offers excellent resistance to mechanical wear, ensuring durability in industrial environments.

The adaptive cushioning system dynamically absorbs energy from the piston stroke, providing smooth deceleration and reducing shock impact at the ends of the stroke. This intelligent cushioning extends the life of the cylinder and connected machinery. The piston rod is crafted from corrosion-resistant stainless steel, enhancing performance reliability in harsh conditions.

Mounting is simplified with tapped holes at both ends, allowing versatile installation options to fit a wide range of pneumatic setups. The maximum operating pressure is 12 bar, and the cylinder withstands temperature extremes from -20°C to 80°C, making it suitable for diverse industrial applications such as laboratories, aviation engineering, chemical plants, and conveyor systems.

Seals comprising NBR O-rings and polyurethane components maintain airtight operation while blocking dirt and moisture ingress, vital for maintaining efficiency and longevity in pneumatic systems. The unit’s dimensions (length 217.5mm, height and width 95mm) and a weight of 2kg make it compact yet robust.

Rugged anodised aluminium barrel resists mechanical wear. Double acting function eliminates the need for a spring reset. Adaptive cushioning system automatically adjusts based on piston position. Stainless steel piston rod resists corrosion.

Both ends tapped mounting type for flexible installation. Maximum operating pressure of 12 bar. Operates in temperatures from -20°C to 80°C. NBR O-rings and PUR seals provide airtight and contamination resistance. Piston rod thread size 3/8 inch G, male gender fitting.

Compact size with 217.5mm length, 95mm height and width, weighing 2kg.

This Norgren pneumatic cylinder is ideal for industrial automation, fluid power applications, and machinery requiring precise linear motion control. Its durable build and adaptive features ensure long-term performance in challenging operational settings. Browse more pneumatic cylinders and actuators at EnvMart for comprehensive fluid power solutions.
