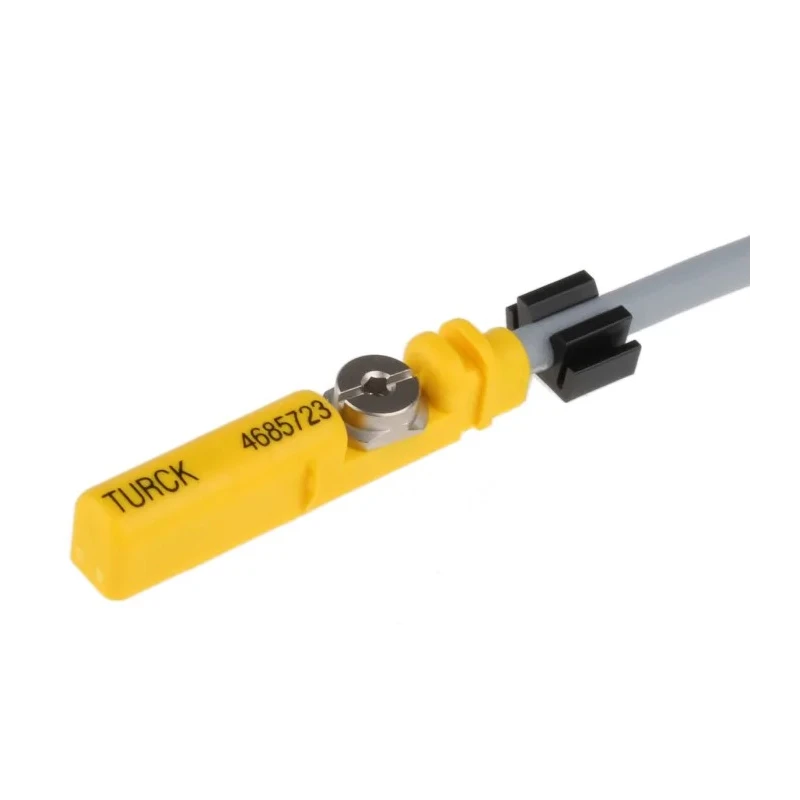

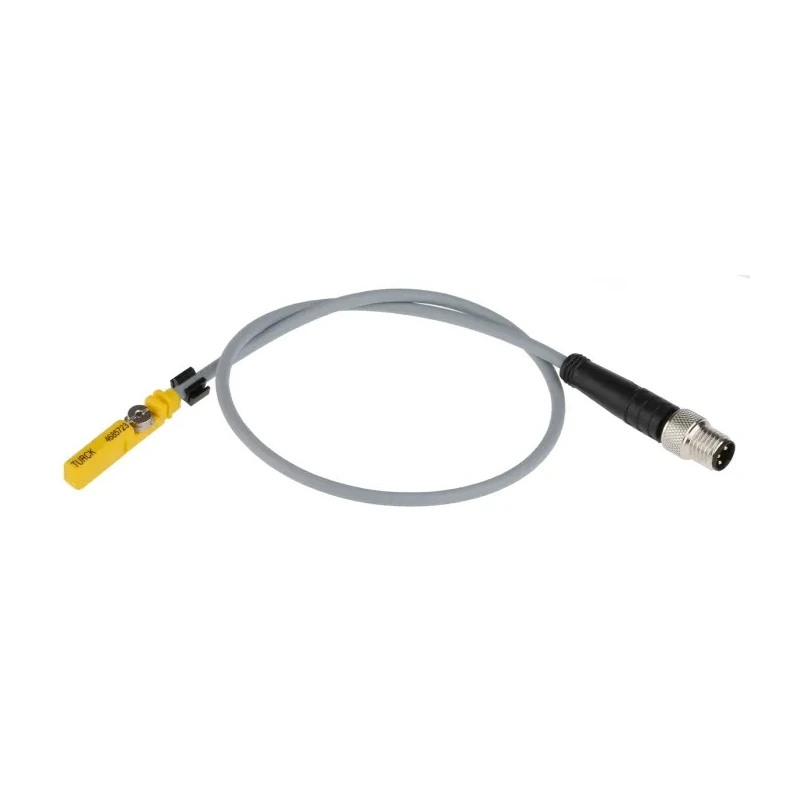

Turck Rectangular Rotatable Thread M8X1 Magnetic Field Sensor, 10-30V DC, IP67, LED Indicator BIM-UNT-AP6X-0.3-PSG3M

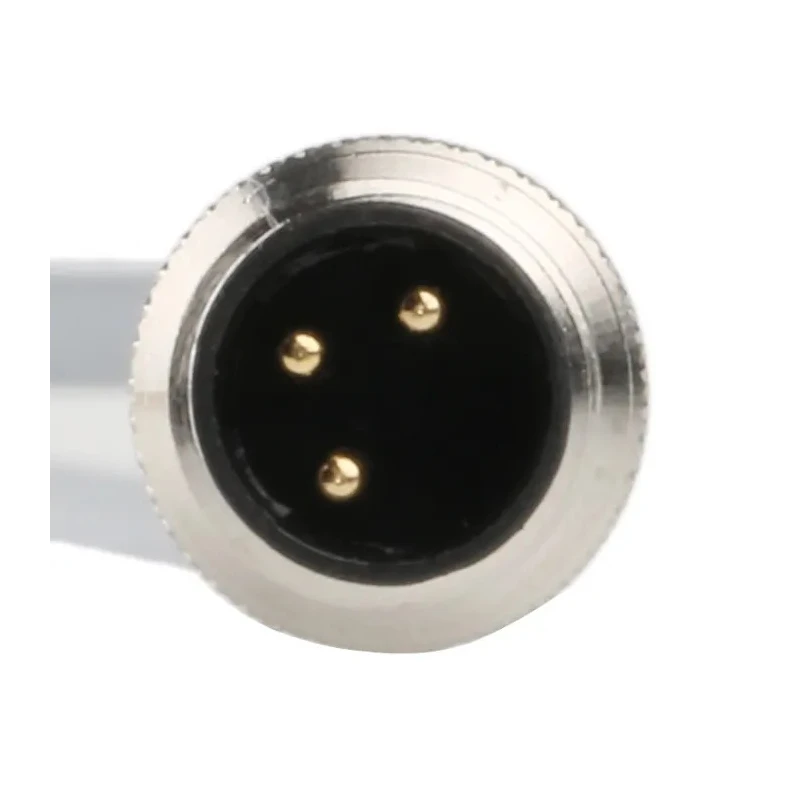

Turck BIM-UNT-AP6X-0.3-PSG3M is a rectangular magnetic field sensor designed for pneumatic cylinder position monitoring in industrial automation and fluid power applications. It operates within a supply voltage range of 10 to 30 V DC and features a rotatable M8X1 threaded electrical connection that facilitates easy integration and installation. The sensor housing is constructed of robust plastic polypropylene material, making it highly resistant to wear, impact, and environmental stresses.

This magnetic pickup sensor uses magneto-resistive technology to provide precise detection of pneumatic cylinder positions. It supports a 3-wire, normally open (NO) PNP output configuration, delivering reliable switching signals to control systems.

The built-in LED indicator enables quick visual verification of the sensor's switching state, improving maintenance efficiency. The sensor's IP67 rating certifies that it is completely dust-tight and capable of withstanding water immersion up to 1 meter for 30 minutes, making it suitable for harsh industrial environments.

Operating temperatures range from -25°C up to 70°C, accommodating typical factory automation, material handling, and medical equipment environments. Additional electrical protections include integrated short circuit and reverse polarity safeguards, enhancing product longevity and operational safety.

This sensor is typically used in pneumatic cylinder sensor roles within factories, medical device assemblies, and automated equipment requiring precise positional feedback. Its straightforward installation involves inserting it into a dovetail mount and securing with a clamping screw, eliminating complex setup tools.

Overall, Turck BIM-UNT-AP6X-0.3-PSG3M combines durability, accuracy, and ease of installation for various industrial pneumatic sensing applications. Operates at supply voltages from 10 to 30 V DC. Features a durable plastic polypropylene housing for impact resistance.

Provides NO contact switching with PNP 3-wire output. Equipped with LED indicator showing switching status clearly. IP67 rated for protection against dust and immersion up to 1 meter depth. Operating temperature range from -25°C to 70°C for demanding environments.

Designed for use with pneumatic cylinders with integrated rotatable thread connection. Incorporates magneto-resistive measurement technology for accurate positioning. Includes built-in short circuit and reverse polarity protection for electrical safety.
