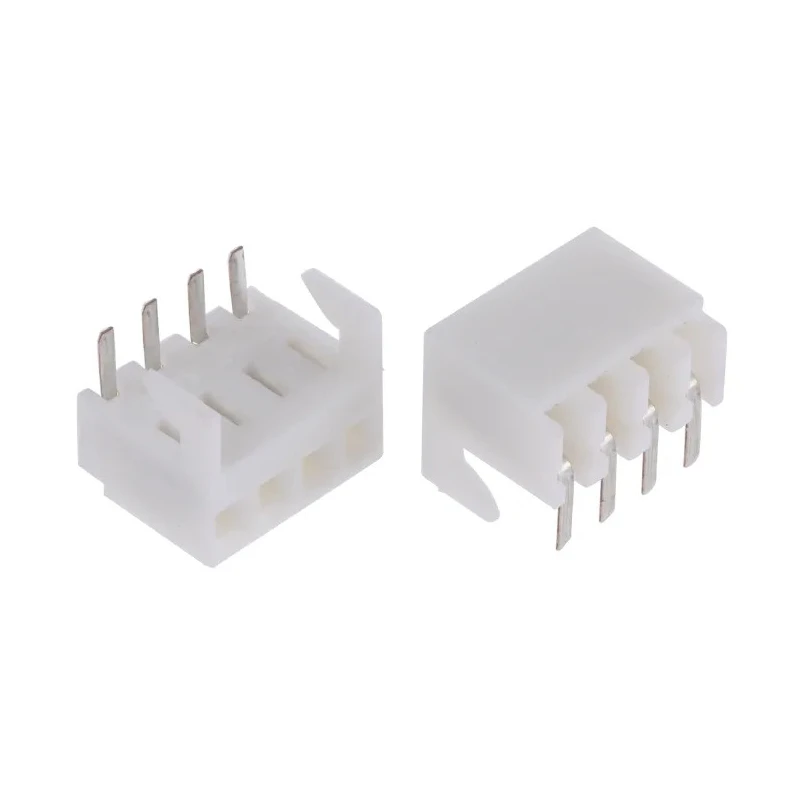

Molex KK 254 Series Right Angle Through Hole PCB Socket, 4-Contact, 1 Row, 2.54 mm Pitch, 250V, 2.5A, Nylon 38-00-1334

Free Delivery in India | Lowest Global Shipping Charges

Molex KK 254 Series Right Angle Through Hole PCB Socket, 4-Contact, 1 Row, 2.54 mm Pitch, 250V, 2.5A, Nylon 38-00-1334

Name: Molex KK 254 Series Right Angle Through Hole PCB Socket, 4-Contact, 1 Row, 2.54 mm Pitch, 250V, 2.5A, Nylon 38-00-1334
Brand: Molex
SKU: 117284
Price: 0.81 USD
Availability: InStock



Category PCB Socket Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	2.5A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Bronze
Series	KK 254
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Female
Connector System	Signal, Board-to-Board

Key Features

The housing is made of UL94 V-0 rated Nylon for heat resistance and durability.
Contacts are female, made of bronze, and plated with tin for reliable conductivity.
Orientation is right angle to facilitate PCB mounting with through-hole fitment.
Operating temperature range extends from -40°C to 105°C allowing use in diverse environments.
Compatible with the KK 254 series for optimized PCB connector solutions.
Ideal for electronics manufacturing, industrial, and laboratory applications requiring robust board connections.
Designed as a solder termination type for secure mounting on printed circuit boards.
Durable phosphor bronze cats ear terminals provide long-lasting mechanical and electrical performance.

Product Description

Molex 38-00-1334 KK 254 Series Right Angle Through Hole PCB Socket is a high-quality connector designed for electronics and industrial applications. It features 4 female contacts arranged in a single row with a 2.54 mm pitch, making it suitable for patching signal circuits on PCBs. The housing is constructed of UL94 V-0 Nylon, providing excellent flame retardance and mechanical strength during soldering processes and operation.

The contacts are made from bronze and coated with tin plating to ensure reliable electrical conductivity and corrosion resistance. This socket supports a voltage rating of 250V and current rating of 2.5A, fitting typical board-to-board signal transmission needs. Its right angle orientation and through-hole mounting style enable secure installation on printed circuit boards with optimal space usage.

Designed for operation across a wide temperature range from -40°C to 105°C, it withstands harsh industrial and laboratory conditions. The phosphor bronze cats ear terminals provide enhanced mechanical retention and electrical performance. Typical uses include electronic component assembly, industrial automation equipment, instrumentation, and control systems.

Key features include solder termination for durable connection, compatibility with KK 254 series connectors, and a robust UL94 V-0 rated nylon housing. The product is engineered to enhance manufacturing efficiency and ensure consistent signal integrity in demanding environments.

This Molex socket provides a trusted solution for engineers and manufacturers who need dependable, standardized PCB connectors. The package supports easy integration into automated assembly lines and manual soldering operations.

The housing meets stringent UL94 V-0 flame retardant standards. Fitted with phosphor bronze cats ear terminals for superior durability. Has a 2.54 mm contact pitch for standardized PCB layouts. Rated for operation from -40°C to 105°C for versatile environment compatibility.

Supports 250V voltage and 2.5A current for typical signal applications. Right angle orientation optimizes board space usage. Designed for through-hole solder mounting ensuring mechanical stability. Female contacts with tin plating for reliable conductivity and corrosion resistance.

Explore our extensive range of PCB Sockets and connectors on EnvMart for comprehensive electronic assembly solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business
