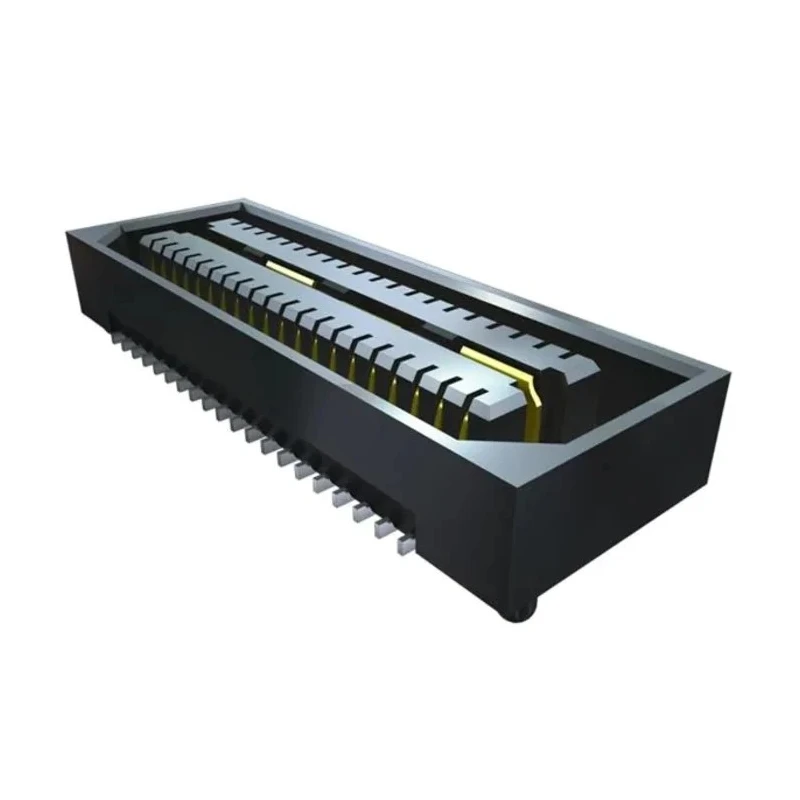

Samtec QSE Series Straight Surface PCB Socket 120-Contact 2 Row 0.8 mm Pitch Solder QSE-060-01-F-D-A-K-TR

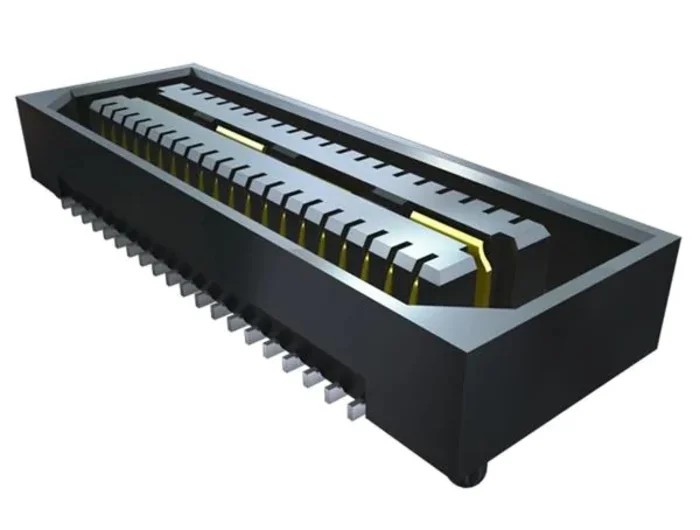

Samtec QSE-060-01-F-D-A-K-TR is a high-performance PCB socket from the QSE series designed for surface mount applications requiring a reliable board-to-board connection system. With 120 contacts distributed evenly in 2 rows, it features a pitch of 0.8 mm ensuring tight signal integrity for high-speed electronic circuits.

The housing is made of liquid crystal polymer, providing excellent durability and resistance to thermal cycling from -55°C to 125°C. Each contact is crafted from phosphor bronze and plated with gold to optimize conductivity and mechanical reliability, suited for currents up to 23 amperes and voltages up to 225V.

This socket's straight orientation and 5 mm stacking height allow precise connector alignment and vertical board stacking in compact electronic assemblies. The 5.73 mm row pitch maintains proper signal separation, critical in high frequency and digital applications.

Termination by solder offers robust mounting stability on printed circuit boards, compatible with automated soldering processes. The product’s tape and reel packaging facilitate streamlined manufacturing and component placement.

Ideal for industrial, laboratory, telecommunications, computing, and automotive electronics, this versatile socket meets demanding operational conditions with no specific approvals required.

The socket supports a current rating of 23A suitable for demanding electrical applications. Constructed using liquid crystal polymer housing for durability and thermal resistance. Features gold-plated phosphor bronze contacts for superior conductivity and corrosion resistance.

Operates from -55°C up to 125°C, allowing usage in diverse environments. Designed for board-to-board connection with a straight orientation and surface mount style. Stacking height is 5 mm with a row pitch of 5.73 mm ensuring compact PCB designs.

Termination type is solder, providing secure and reliable electrical connections. Suitable for industrial electronics, telecommunications, and high-speed digital interfaces. Packaging includes tape and reel for automated assembly processes.
