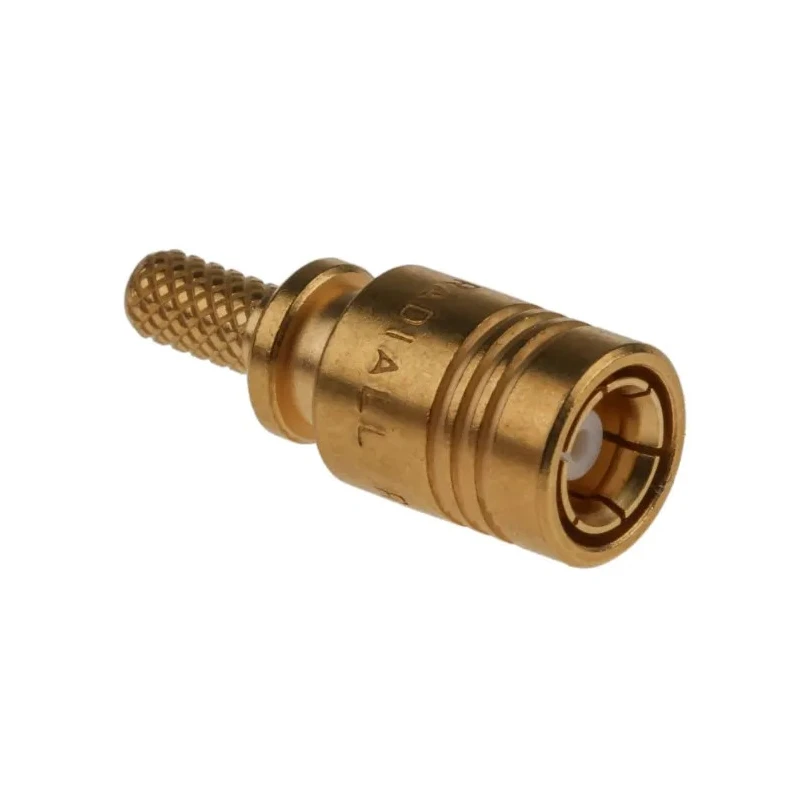

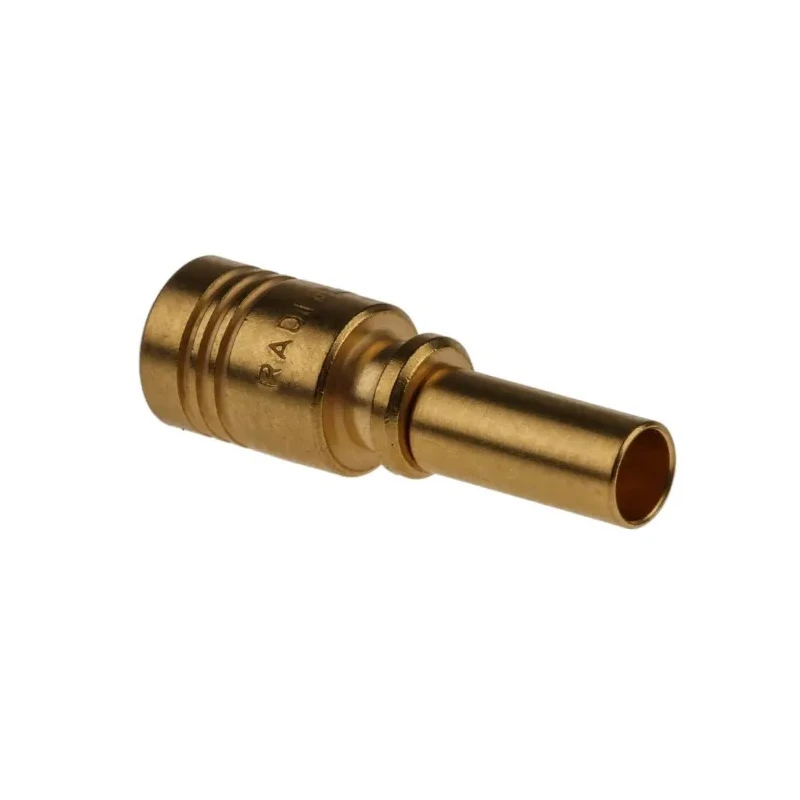

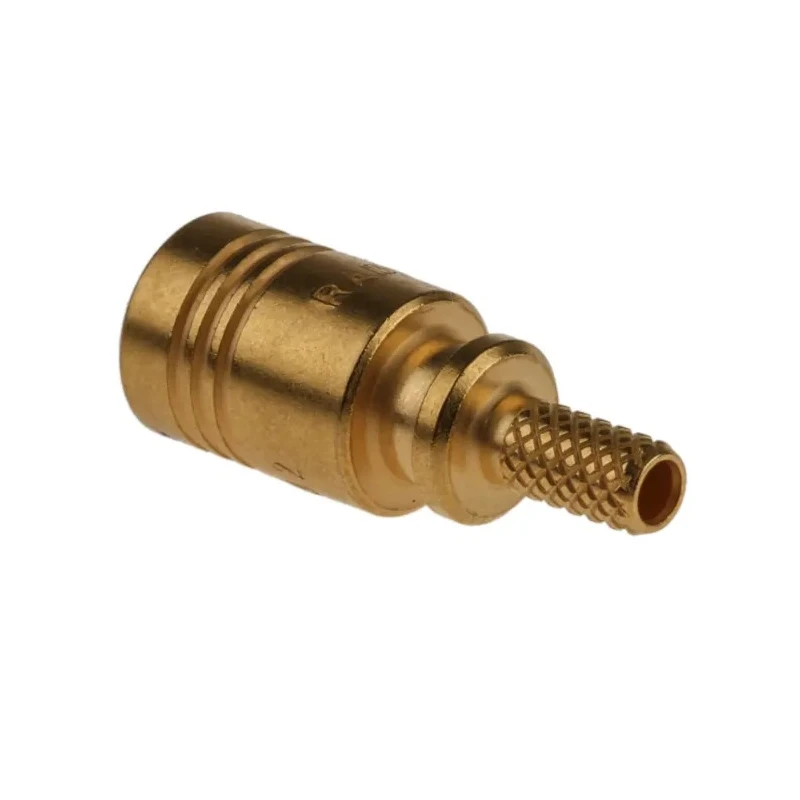

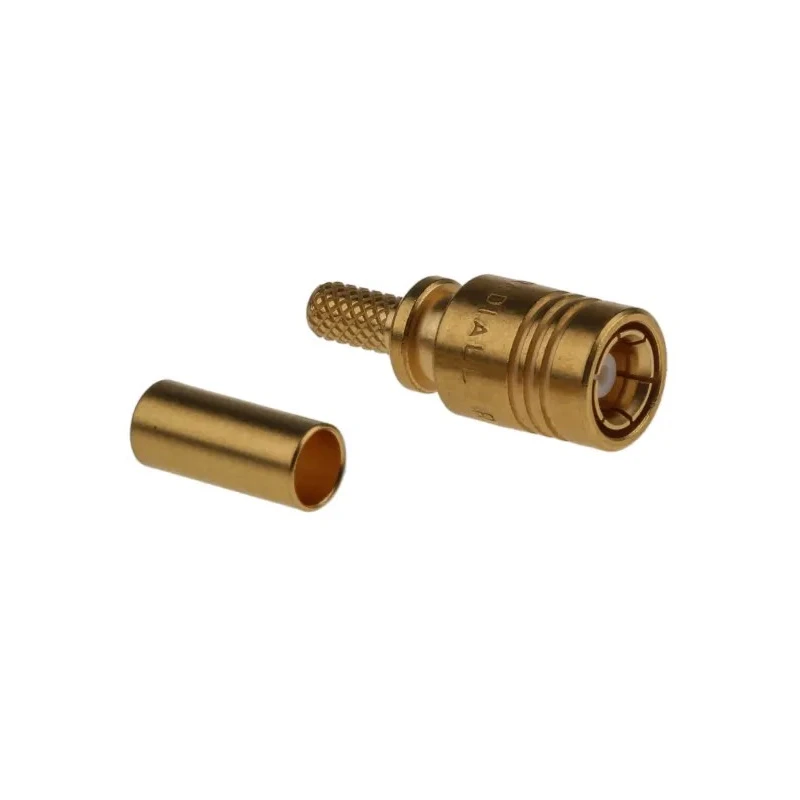

Radiall SMB Series 50 Ω Coaxial Connector Cable Male SMB Straight Body Crimp R114082000W
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Straight |
| Model | R114082000W |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | SMB |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG-316, RG188, RG187, RG179 |
| Minimum Operating Temperature | -65°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- This coaxial connector type is SMB with a cable mount.
- The product supports operating frequencies up to 4 GHz.
- The connector features a gold-plated body and gold-over-nickel contact plating.
- The contact material is durable beryllium copper for enhanced conductivity.
- It supports multiple cable types including RG-316, RG188, RG187, and RG179.
- The product is rated for a temperature range of -65°C to 165°C for reliability in harsh environments.
- The termination type is crimp, suitable for robust cable fastening.
- The connector is designed with a male gender and reverse polarity.
Product Description
Radiall R114082000W SMB Series Coaxial Connector Cable Male is a high-quality 50 Ω Coaxial Connector designed for professional RF and electronic applications. Featuring a straight body crimp construction, this connector ensures reliable and stable cable connections with minimal signal loss. The gold-plated body and gold over nickel plating on the contacts enhance corrosion resistance and signal integrity.
Constructed with beryllium copper contacts, the connector provides excellent conductivity and mechanical strength. Its crimp termination type enables secure attachment to RG-316, RG188, RG187, and RG179 coaxial cables, making it versatile for multiple cable configurations.
This SMB series connector operates effectively in demanding temperature environments from -65°C to 165°C, ensuring durability and performance in industrial, laboratory, communication, and commercial sectors. With an operating frequency up to 4 GHz, it supports high-frequency signal transmission for RF systems.
The connector design includes a snap-on coupling conforming to MIL-C-39012 standards, providing fast and reliable mating and disengagement, suitable for frequent connection changes in testing and measurement applications. The reverse polarity female contact plug is standard for ensuring compatibility with specific RF setups.
This connector is ideal for use in telecommunications, aerospace, laboratory instrumentation, broadcast, and other high-frequency electronic systems. The product's standard size and bulkhead mount provide ease of integration into existing cable assemblies.
Explore the Radiall SMB Series on EnvMart for advanced coaxial solutions designed for precision and durability in professional environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports operating frequencies up to 4 GHz, making it suitable for high-frequency signal transmission in RF applications.
It is compatible with RG-316, RG188, RG187, and RG179 coaxial cables, allowing for versatile cable configurations.
The connector operates effectively in a temperature range from -65°C to 165°C, ensuring reliability in harsh environments.
This model features a crimp termination type, which ensures a secure attachment to the coaxial cable.
The connector has a gold-plated body and gold-over-nickel contact plating, with contacts made from beryllium copper for enhanced conductivity.
It is rated for an impedance of 50 Ω, which is standard for many RF applications.
This model is suitable for telecommunications, aerospace, laboratory instrumentation, and broadcast applications, among others.
The connector features a male gender, which is standard for many coaxial connections.
It includes a snap-on coupling that conforms to MIL-C-39012 standards, allowing for fast and reliable mating and disengagement.
The country of origin for this connector is India.
The body of this connector is plated with gold, enhancing its corrosion resistance and signal integrity.
This model has a straight orientation, which is typical for many coaxial connections.
