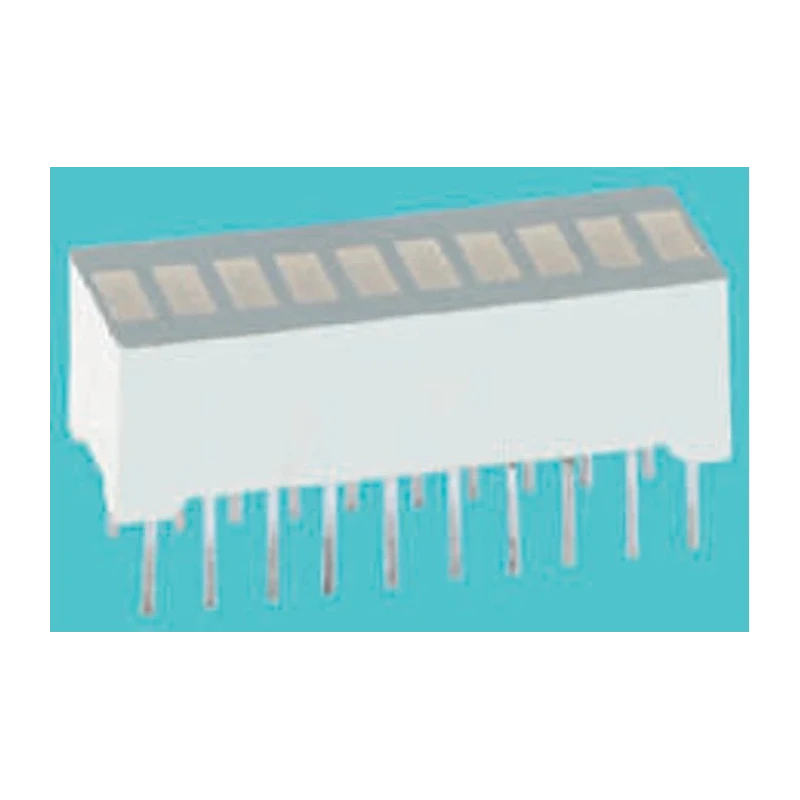

Kingbright 10 Segment Green Light Bar LED Display 12mcd 5.08mm DC-10GWA
Specifications
| Country of Origin | India |
|---|---|
| Display Type | Light Bar |
| Brand | Kingbright |
| Model | DC-10GWA |
| Mount Type | Through Hole |
| Character height | 5.08mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 10 |
| External Width | 25.4mm |
| External Depth | 8mm |
| External Height | 10.2mm |
| Power Dissipation | 105mW |
| Luminous Intensity | 12mcd |
| Standards/Approvals | RoHS, CIE127-2007 |
| LED Colour | Green |
| Dominant Wavelength | 565nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 25mA |
| Array dimensions | 25.4 x 10.16 x 8 mm |
| Segment dimensions | 5.08 x 1.78 mm |
| LED, lightbar, array, high eff, 10 segment, DIL, greenBrand | Fairchild Semiconductor |
| DC-10SGWA Kingbright 10 Light Bar LED Display Green 21mcd 5.08 mmBrand | Kingbright |
Key Features
- The LED display has 10 segments for clear level indication.
- Its external dimensions are 25.4mm width, 10.2mm height, and 8mm depth.
- The LED color is green with a dominant wavelength of 565nm.
- Designed for low current operation with a forward current of 25mA and forward voltage of 2V.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- The grey colored face offers high on/off contrast for visibility.
- Mechanically rugged design supports end stackability for flexible installations.
- Power dissipation is rated at 105mW for optimized efficiency.
Product Description
Kingbright DC-10GWA 10 Segment Green Light Bar LED Display is a high-efficiency light bar designed for use in electronic components and display modules. Featuring a 10-segment bar graph array, it displays levels with clear visual precision. The LED has a green color with a dominant wavelength of 565nm and a luminous intensity of 12 millicandela (mcd). It offers a character height of 5.08mm suitable for compact visual indicators.
The device incorporates a through-hole mounting type for secure attachment on printed circuit boards. External dimensions of the array are compact at 25.4 x 10.2 x 8 mm, with each segment measuring 5.08 x 1.78 mm, making it ideal for space-constrained environments.
The display is engineered for low power consumption with a forward current of 25mA, forward voltage of 2V, and power dissipation of 105mW. It supports a wide operating temperature range from -40°C to 85°C, making it suitable for industrial, laboratory, and commercial applications. The grey face of the array enhances the contrast and visual clarity of the illuminated segments.
The 10-segment configuration allows accurate indication of levels or statuses in measurement and control systems. Its rugged mechanical design supports end stackable arrangements for modular setups. This LED bar graph array complies with RoHS and CIE127-2007 standards, ensuring environmental and quality compliance.
Common industrial use includes electronic instrumentation panels, control equipment displays, and status indicator modules. Its green illumination with high luminance is suitable for indoor and outdoor signal displays.
Kingbright is a recognized brand in LED display modules assuring reliable performance for electronic and automation systems. This model DC-10GWA is widely used in level indicator applications across various industrial and commercial sectors.
Explore more LED Displays and related electronic components in EnvMart’s Electronics & Electricals category for advanced and quality assured products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this model is 12 millicandela (mcd).
The external dimensions are 25.4mm in width, 10.2mm in height, and 8mm in depth.
The forward voltage is 2V, and the forward current is 25mA.
It operates reliably within a temperature range of -40°C to 85°C.
This model uses a through-hole mounting type for secure attachment on printed circuit boards.
The display features 10 segments for clear level indication.
The dominant wavelength of the green LED is 565nm.
Each segment measures 5.08mm in height and 1.78mm in width.
The power dissipation is rated at 105mW for optimized efficiency.
This model complies with RoHS and CIE127-2007 standards.
The face of the display is grey, which enhances the contrast and visibility of the illuminated segments.
It is commonly used in electronic instrumentation panels, control equipment displays, and status indicator modules.
