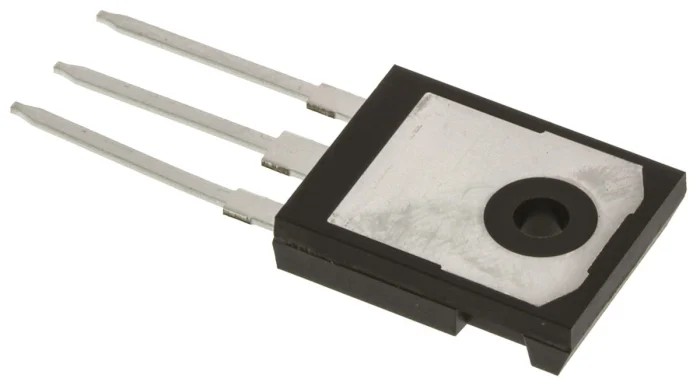

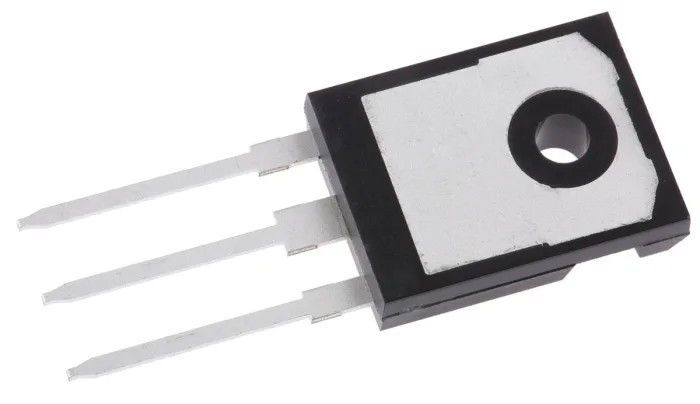

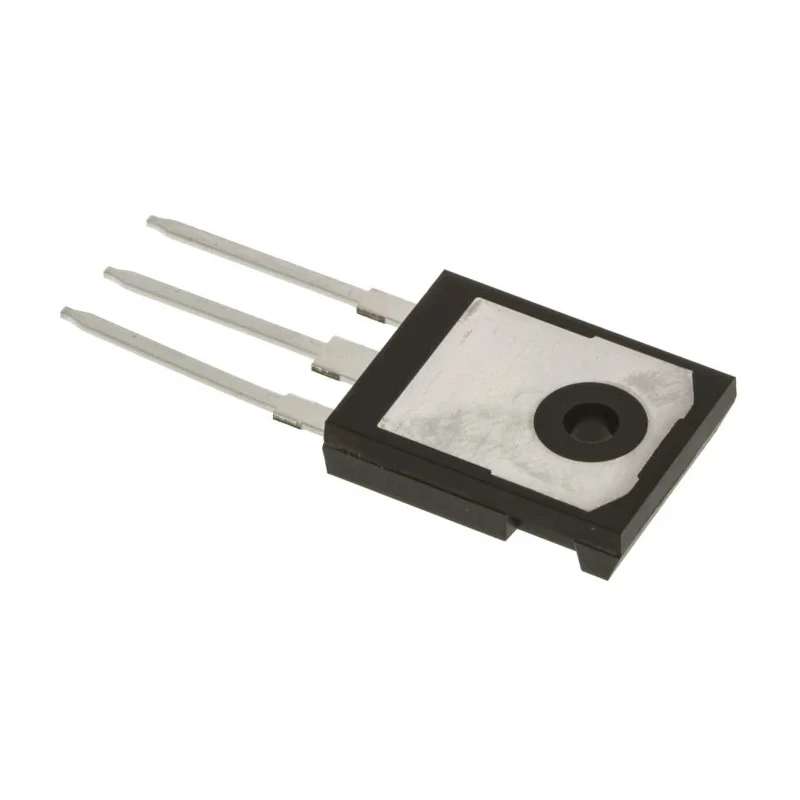

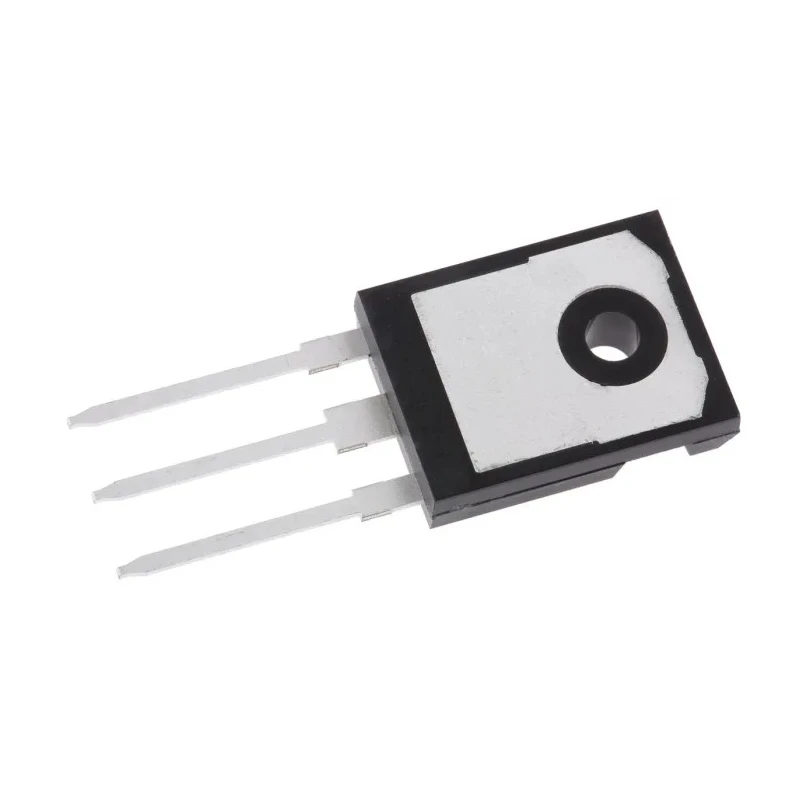

IXYS Thyristor SCR with TO-247 Package, 1600 V VDRM, 48 A Rated Average On-State Current, 100 mA Gate Trigger CS45-16IO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Model | CS45-16IO1 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 140°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 48A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 560A |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 100mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 1.64V |
| Repetitive Peak Off-State Current | 5mA |
Key Features
- Encapsulated TO-247 package for through-hole mounting.
- Maximum gate trigger current of 100 mA ensures reliable switching.
- Surge current rating of 560 A provides robustness against transient currents.
- Operating temperature range from -40°C to 140°C suits diverse environments.
- Peak on-state voltage of 1.64 V minimizes conduction losses.
- Repetitive peak off-state current is 5 mA, ensuring low leakage.
- Three-pin configuration ideal for phase control applications.
- Designed for industrial power control including battery chargers and welding equipment.
Product Description
The IXYS CS45-16IO1 is a solid-state silicon-controlled rectifier (SCR) thyristor designed for power control applications. Featuring a TO-247 through-hole package, it facilitates easy mounting and enhanced thermal management.
With a repetitive peak reverse voltage (VDRM) of 1600 V and a rated average on-state current of 48 A RMS, this device is suitable for medium-power phase control tasks. Its surge current rating of 560 A allows it to tolerate transient high current conditions common in industrial equipment.
The thyristor includes a gate trigger current specification of 100 mA maximum, aiding reliable firing in switching circuits. It operates effectively within a temperature range from -40°C to 140°C, making it applicable in various industrial and commercial environments.
Additional electrical specifications include a peak on-state voltage of 1.64 V and a repetitive peak off-state current of 5 mA, which together ensure efficient operation with minimal losses and leakage.
This device is widely used in regulating power supplies, battery chargers, welders, and speed control equipment. The three-pin configuration supports typical phase control inputs. Encapsulated TO-247 package for enhanced durability and thermal dissipation.
High surge current capacity for transient tolerance. Wide operating temperature range for diverse applications. Designed for robust industrial usage including power regulation and control. Electrically isolated base plate ensures safety and easy integration.
Explore our Semiconductor category to find more power control and discrete semiconductor devices suitable for your industrial and electronics projects.
Explore more products in our Thyristors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 140°C.
It has a rated average on-state current of 48 A RMS.
The repetitive peak reverse voltage (VDRM) is 1600 V.
This thyristor has a surge current rating of 560 A.
The maximum gate trigger current is 100 mA.
The TO-247 package supports through-hole mounting.
The peak on-state voltage is 1.64 V.
The minimum operating temperature is -40°C.
This thyristor has a three-pin configuration.
The repetitive peak off-state current is 5 mA.
It is commonly used in power regulation, battery chargers, welders, and speed control equipment.
The country of origin is India.
