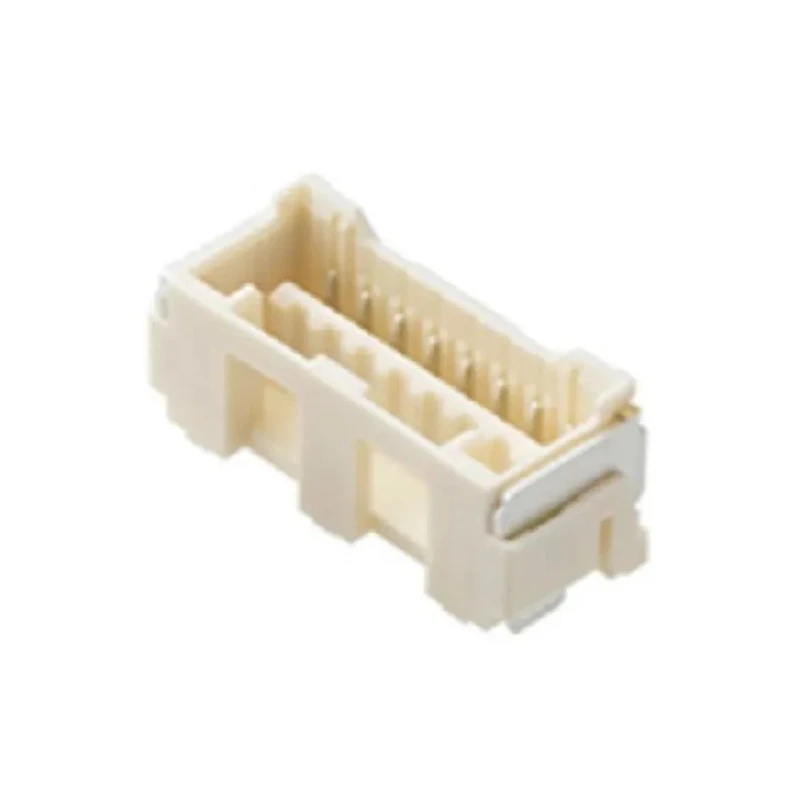

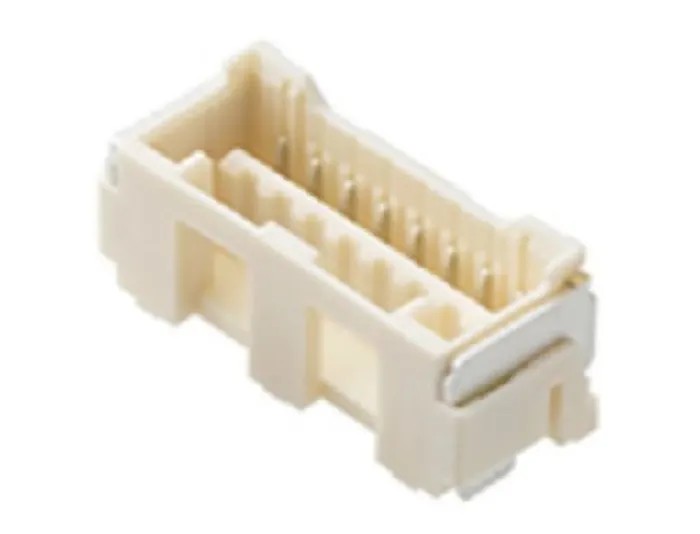

Molex 502584 Series Vertical Surface PCB Socket, 3-Contact, 1 Row, 1.5 mm Pitch, 100V, 2A, Thermoplastic Housing 502584-0360
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 502584 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Standards/Approvals | CHINA RoHS, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector System | Wire-to-Board |
Key Features
- Designed for wire-to-board connection with vertical orientation.
- Rated for 100 V voltage and 2 A current for reliable electrical performance.
- Housing constructed from durable thermoplastic material.
- Operating temperature range from -40°C to 105°C ensures versatile applications.
- Features copper alloy contacts with tin plating for excellent conductivity and corrosion resistance.
- Beige color body provides clear identification on PCB assemblies.
- Compact 1.5 mm pitch supports high-density PCB designs.
Product Description
The Molex 502584-0360 is a high-quality vertical surface PCB socket designed for wire-to-board applications. It offers 3 contacts in a single row with a compact 1.5 mm pitch, making it suitable for densely packed electronic assemblies.
This PCB socket supports a nominal operating voltage of 100 V and a current rating of 2 A, ensuring safe and reliable electrical connections in industrial and commercial electronic devices. The housing is made from thermoplastic material, providing durability and excellent insulating properties.
Its vertical orientation and surface mount termination type enable efficient PCB layout and assembly processes.
The contact components are manufactured using copper alloy with tin plating, delivering superior electrical conductivity and resistance to corrosion. The device operates reliably within a wide temperature range from -40°C to +105°C, allowing its use across various environmental conditions.
Compliance with China RoHS and EU RoHS standards verifies the socket’s environmental and safety certifications. Wire-to-board vertical PCB socket with surface mount termination. 3 contacts arranged in 1 row with 1.5 mm pitch.
Rated voltage: 100 V and current: 2 A. Thermoplastic beige housing for durability and insulation. Copper alloy contacts with tin plating for conductivity and corrosion resistance. Wide operating temperature range from -40°C to 105°C.
RoHS compliant for environmental safety.
This Molex PCB socket is essential for electronic manufacturing, industrial devices, consumer electronics, and laboratory instrumentation requiring reliable, compact PCB connections.
Explore the Electronics Components category at EnvMart for comprehensive solutions in connectors and PCB Sockets.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for a nominal operating voltage of 100 V and a current rating of 2 A.
The pitch size of this model is 1.5 mm, suitable for high-density PCB designs.
It features a surface mount termination type, allowing for efficient PCB layout and assembly.
The housing is made from thermoplastic material, and the contacts are constructed from copper alloy with tin plating for excellent conductivity.
The operating temperature range for this PCB socket is from -40°C to +105°C, making it suitable for various environmental conditions.
This model has 3 contacts arranged in a single row.
Yes, it is compliant with China RoHS and EU RoHS standards, verifying its environmental and safety certifications.
This PCB socket is designed for vertical orientation, which is beneficial for wire-to-board connections.
The connector system type for this model is Wire-to-Board, facilitating direct connections between wires and PCBs.
The housing of this socket is beige, providing clear identification on PCB assemblies.
The country of origin for this PCB socket is Japan.
It is suitable for electronic manufacturing, industrial devices, consumer electronics, and laboratory instrumentation requiring reliable PCB connections.
