| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BC857BQC-QZ |
| Mount Type | Surface |
| Series | BC857xQC-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -45V |
| Minimum DC Current Gain hFE | 220 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -6V |
| Maximum Collector Base Voltage VCBO | -50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |

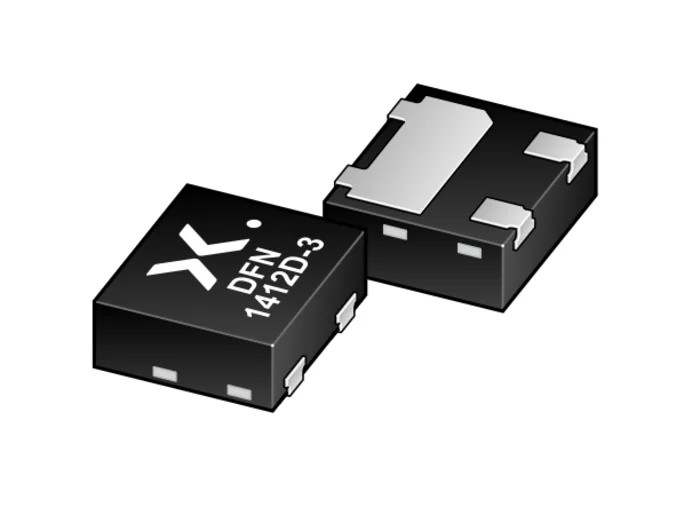

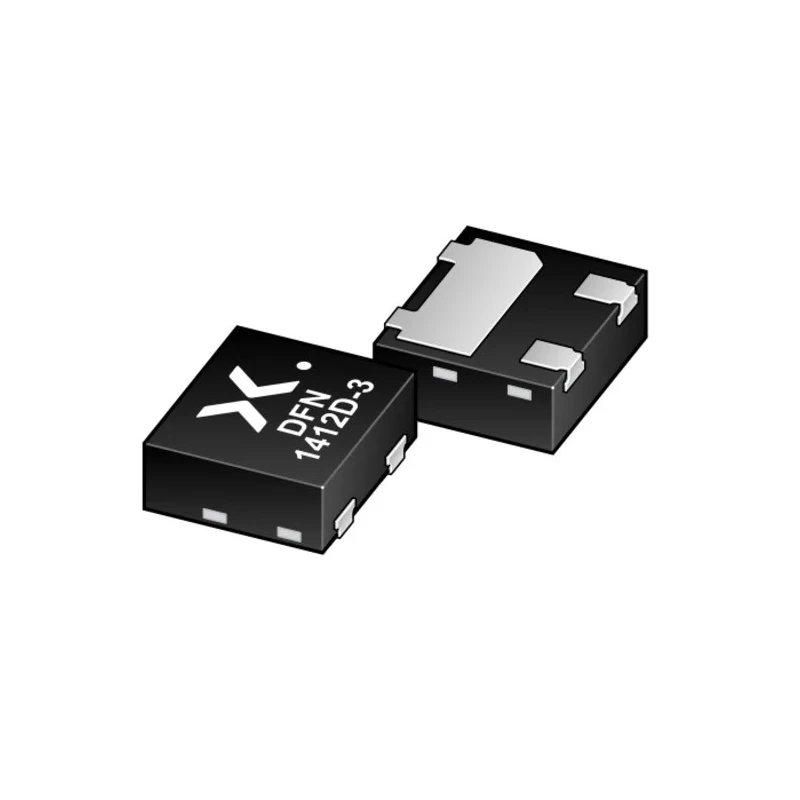

Nexperia BC857BQC-QZ PNP Transistor in a 3-Pin DFN1412D-3 surface mount package offers reliable general-purpose switching and amplification with a maximum DC collector current of -100 mA and maximum collector emitter voltage of -45 V. It is designed in a compact leadless ultra-small DFN1412D-3 plastic package with side-wettable flanks.
This transistor supports high power dissipation capability and a minimum DC current gain (hFE) of 220, making it ideal for both industrial and automotive applications requiring robust performance.
It operates across a wide temperature range from -55°C to 150°C and is qualified to the AEC-Q101 automotive standard, ensuring suitability for demanding environments. The low-profile 0.5 mm package height and surface-mount design are optimal for space-restricted and automated optical inspection (AOI) processes during PCB assembly.
Being RoHS compliant, it meets environmental safety regulations, enabling its use in a variety of industrial electronics, automotive systems, and power control circuits. This transistor has a maximum DC collector current of -100 mA.
The maximum collector emitter voltage is rated at -45 V. The device features a 3-pin DFN1412D-3 surface mount package. It is RoHS compliant and qualified to AEC-Q101 automotive standards. Suitable operating temperature range is -55°C to 150°C.
The minimum DC current gain (hFE) is 220. Polarity is PNP, suitable for switching and amplification. Low package height of 0.5 mm enables compact PCB layouts. High power dissipation capability supports demanding applications.
Recommended for automotive and industrial electronics use cases. Explore a wide selection of Bipolar Transistors and semiconductor products on EnvMart for advanced electronics and automotive applications.
