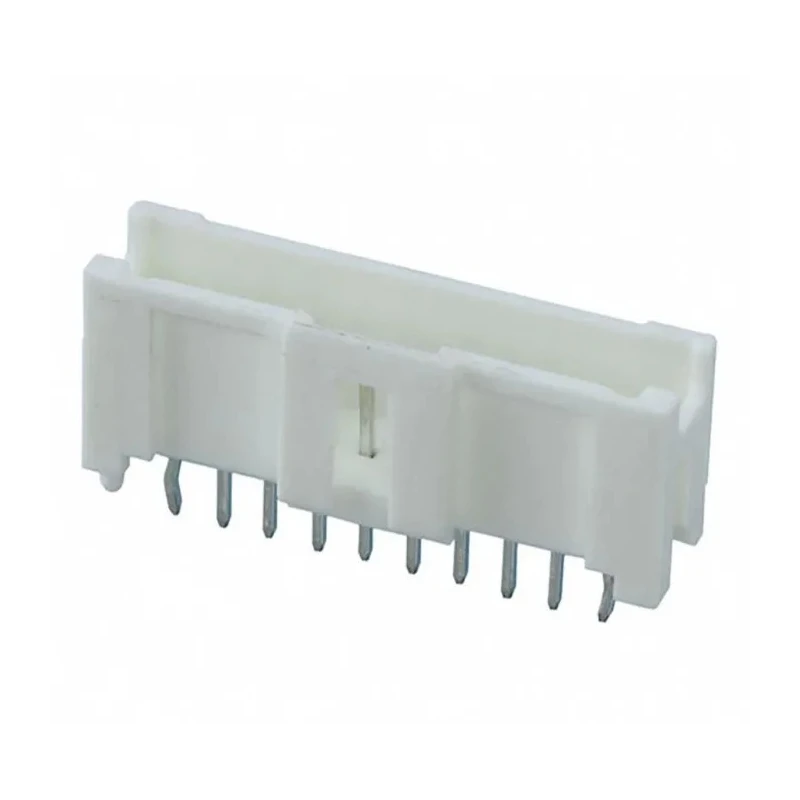

Molex MicroClasp Series Straight Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 1 Row, Shrouded 55932-1010

Free Delivery in India | Lowest Global Shipping Charges

Molex MicroClasp Series Straight Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 1 Row, Shrouded 55932-1010

Name: Molex MicroClasp Series Straight Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 1 Row, Shrouded 55932-1010
Brand: Molex
SKU: 115362



Category Electronic Components Brand Molex Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Tin
Series	MicroClasp
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Interfaces	lance system
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	2mm

Key Features

Features a compact 2.00 mm pitch for efficient PCB space utilization.
Constructed with polyester housing for electrical insulation and durability.
Male contact gender with tin-plated terminals ensures excellent conductivity and corrosion resistance.
Shrouded design provides protection and secure mating with audible click retention.
Rated for 3A current at voltages up to 250V, suitable for moderate power applications.
Through-hole mount type facilitates stable mechanical and electrical connection on PCB.
Operates reliably within a temperature range of -40°C to 105°C.
Includes a unique inner positive lock to prevent accidental unmating and ensure secure retention.

Product Description

Molex 55932-1010 MicroClasp Series Straight Through Hole PCB Header is a high-quality single row vertical wire-to-board connector designed for industrial and commercial electronic applications. This shrouded connector features a 2.00 mm pitch and 10 male contacts with tin-plated terminals, ensuring robust electrical conductivity and resistance to corrosion.

The polyester housing provides excellent mechanical strength and electrical insulation, making it suitable for use in harsh environments. Its through-hole mount design guarantees secure attachment to printed circuit boards, providing reliable performance in machinery, control panels, and electronic assemblies.

Designed to handle currents up to 3A and voltages up to 250V, this PCB header supports moderate power transmission while maintaining compact dimensions to optimize PCB real estate. It operates reliably across a wide temperature range from -40°C to 105°C, accommodating various industrial operating conditions.

The MicroClasp series is distinguished by its inner positive lock mechanism, which offers enhanced retention force, latch protection, and an audible click upon mating to ensure secure and reliable connections. The shrouded design further protects the contacts from damage and accidental disconnections.

Compact 2.00 mm pitch and single row structure for space-efficient PCB design. Polyester housing for electrical insulation and durability. Reliable male tin-plated contacts with solder termination. Through-hole mount type for stable mechanical connection.

3A current rating at 250V suitable for various electronic uses. Wide operating temperature range from -40°C to 105°C. Inner positive lock and shrouded design for secure mating and protection. Tail pin length 3.2 mm and mating pin length 2 mm for precision fit.

Manufactured in Japan ensuring quality standards.

This PCB header is ideal for electronics manufacturing, industrial machinery, laboratory equipment, and other commercial applications requiring secure, reliable wire-to-board connections.
