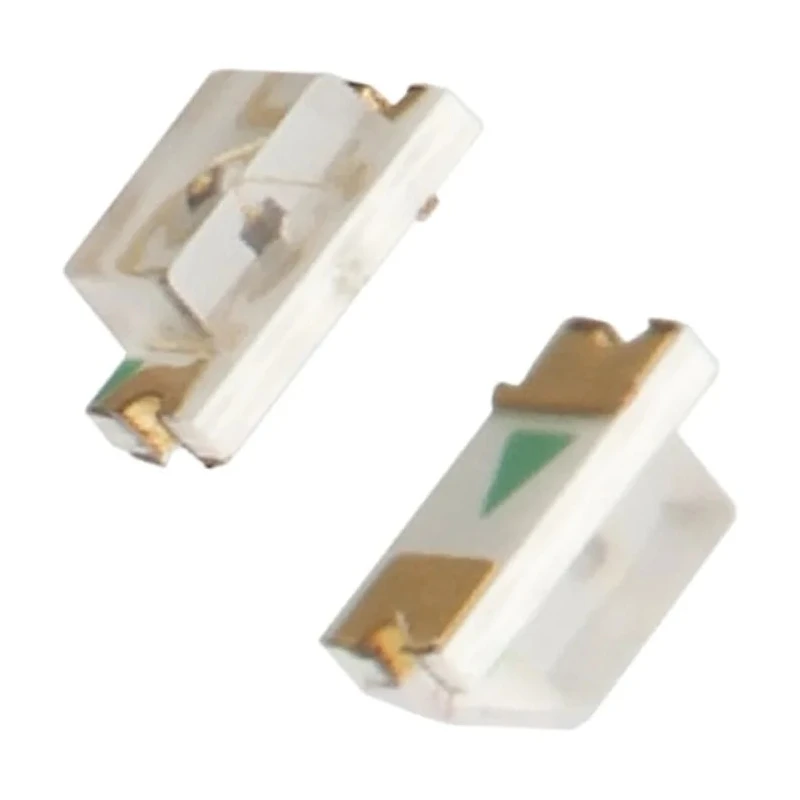

Wurth Elektronik 2.4 V Red LED 0603 Surface Mount WL-SMCW 150060SS75000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Model | 150060SS75000 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMCW |
| Maximum forward current | 30mA |
| Viewing angle | 140 ° |
| Package Type | 0603 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Forward Voltage | 2.4V |
| Number of Pins | 2 |
| LED Luminosity | 60 mcd |
| Maximum Power Dissipation | 72mW |
| Lens Dimensions | 1.1 x 0.7 mm |
| Lens Shape | Rectangular |
| Industry-standard packages | 0603 / 0805 / 1206 |
Key Features
- This LED has a maximum forward current of 30mA ensuring efficient operation.
- The 0603 package size offers compact surface mount installation.
- Features clear rectangular lens with dimensions of 1.1 x 0.7 mm for focused light output.
- Offers a wide viewing angle of 140 degrees for broad area illumination.
- Maximum power dissipation is 72mW for reliable performance under load.
- Emits red light with a dominant wavelength of 630nm and luminosity of 60 mcd.
- Complies with RoHS standards ensuring environmental safety.
- Suitable for applications including backlighting, indicator illumination, message boards, and optoelectronics.
Product Description
Wurth Elektronik 150060SS75000 Red LED 0603 Surface Mount is a high-performance single-color SMD chip LED designed for industrial and electronic applications. Operating at a forward voltage of 2.4 V with a maximum forward current of 30mA, this LED delivers reliable and efficient light output from an ultra-compact 0603 package.
The WL-SMCW series is characterized by a water-clear rectangular lens, measuring 1.1 x 0.7 mm, which provides excellent light focus and a wide viewing angle of 140 degrees. This configuration results in bright illumination with a luminous intensity of 60 mcd at a dominant wavelength of 630nm, ideal for red light indications.
With a maximum power dissipation of 72mW, the LED ensures stable operation while maintaining low energy consumption. Manufactured with RoHS-compliant materials, it supports sustainable electronic design requirements. The package includes tape and reel mounting optimized for automated assembly and surface mounting technology.
The product is suited for a multitude of industrial, electronic, and commercial uses, including backlighting for mobile and portable devices, switch and indicator lighting, message boards, optical indicators, and general illumination in laboratory, manufacturing, and construction environments.
This LED features a compact 0603 surface mount package for space-saving designs. It emits bright red light with a dominant wavelength of 630nm and luminosity of 60 mcd. The wide 140 degree viewing angle ensures visibility from various angles.
Low power consumption at 2.4 V forward voltage and 30mA current draw for efficiency. Constructed with water-clear rectangular lens for consistent light output. Complies with RoHS for environmental and safety standards. Includes tape & reel packaging optimized for automated PCB assembly lines.
Perfect for use in electronic displays, indicator lights, and backlight applications. Explore more solutions in the LED category for versatile electronic component needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 30mA, ensuring efficient operation.
The forward voltage of this LED is 2.4V.
It has a wide viewing angle of 140 degrees, providing broad area illumination.
The luminous intensity of this red LED is 60 mcd.
The lens dimensions are 1.1 x 0.7 mm, featuring a rectangular shape for focused light output.
The maximum power dissipation is 72mW, allowing for reliable performance under load.
This LED is packaged in tape and reel, optimized for automated assembly and surface mounting technology.
Yes, this LED complies with RoHS standards, ensuring environmental safety.
It is suitable for applications including backlighting, indicator illumination, message boards, and optoelectronics.
This LED has 2 pins.
The package type for this LED is 0603, which is compact for space-saving designs.
The dominant wavelength of the emitted light is 630nm, which corresponds to the red color.
