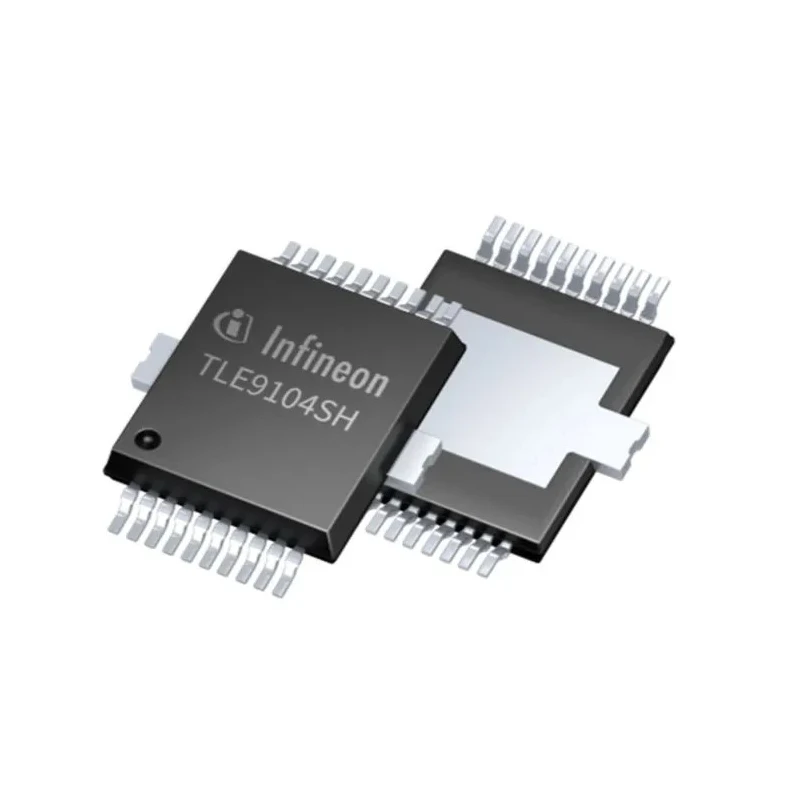

Infineon Low Side Powertrain Switch Power Switch IC 20-Pin PG-DSO-20 3-5V 5A TLE9104SHXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.35mm |
| Length | 7.5mm |
| Model | TLE9104SHXUMA1 |
| Width | 6.4mm |
| Mount Type | Surface |
| Series | TLE9104SH |
| Maximum Operating Temperature | 150°C |
| Package Type | PG-DSO-20 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 5A |
| Number of outputs | 4 |
| Interface Type | Serial |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Automotive Standard | AEC-Q101, AEC-Q100 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| Switch On Resistance RdsOn | 150mΩ |
Key Features
- The device provides four independently controlled output channels for versatile load management.
- It features a low on resistance of 150 milliohms to minimize conduction losses.
- Designed for surface mount applications using a compact PG-DSO-20 package.
- Operating temperature range from -40°C to 150°C ensures reliable performance in harsh automotive environments.
- The switch is compliant with automotive standards AEC-Q101 and AEC-Q100.
- Supports serial interface control enabling seamless communication in vehicle networks.
- Suitable for controlling resistive and inductive loads such as actuators, motors, and lighting.
- Constructed with RoHS-compliant materials for environmental safety.
Product Description
Infineon TLE9104SHXUMA1 is a low side powertrain switch power switch IC tailored for automotive electrical control systems. It integrates four individually controlled outputs within a 20-pin PG-DSO-20 surface mount package, operating on low voltage supplies from 3 V to 5 V and supporting load currents up to 5 A.
With a switch on resistance of 150mΩ, this device minimizes power dissipation, improving system efficiency during load switching operations. It is engineered to withstand demanding conditions with an extensive operating temperature range from -40°C to 150°C, making it suitable for engine compartments and under-hood environments.
The device interfaces via a serial communication protocol, facilitating easy integration with vehicle controllers such as ECUs and CAN networks. Its compliance with automotive quality standards AEC-Q101 and AEC-Q100 ensures robustness and long-term reliability required in automotive electronics.
Applications include multiplexed actuator control, lighting switching, and motor driver loads in powertrain systems where precise and reliable low-side switching is required. This power switch IC is manufactured using RoHS-compliant materials, complying with environmental and regulatory norms.
Four independent output channels for flexible load control. Supports 5 A operating current per channel. Low switch on resistance of 150 milliohms. Surface mount PG-DSO-20 package simplifies board design. Wide operating temperature range from -40°C to 150°C.
Automotive compliant with AEC-Q101 and AEC-Q100 standards. Serial interface control compatible with automotive networks. Ideal for controlling inductive and resistive loads in powertrain systems.
The Infineon TLE9104SHXUMA1 is a critical component for demanding automotive power management, enabling reliable switching performance in compact, high-temperature environments. Browse EnvMart’s range of Power Switch ICs for automotive and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the TLE9104SHXUMA1 is 150°C, making it suitable for harsh automotive environments.
This power switch IC features four independently controlled output channels for versatile load management.
It operates on a supply voltage range from 3 V to 5 V.
The switch on resistance (RdsOn) is 150 milliohms, which helps minimize conduction losses.
It supports a serial interface control, facilitating easy communication with vehicle networks such as ECUs and CAN.
This model is packaged in a PG-DSO-20 surface mount type, which simplifies board design.
It is compliant with automotive standards AEC-Q101 and AEC-Q100, ensuring reliability in automotive applications.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
It supports a maximum load current of 5 A per channel, suitable for various applications.
It is suitable for controlling both resistive and inductive loads, such as actuators, motors, and lighting.
The dimensions are 7.5 mm in length, 6.4 mm in width, and 2.35 mm in height.
Yes, the TLE9104SHXUMA1 is constructed with RoHS-compliant materials for environmental safety.
