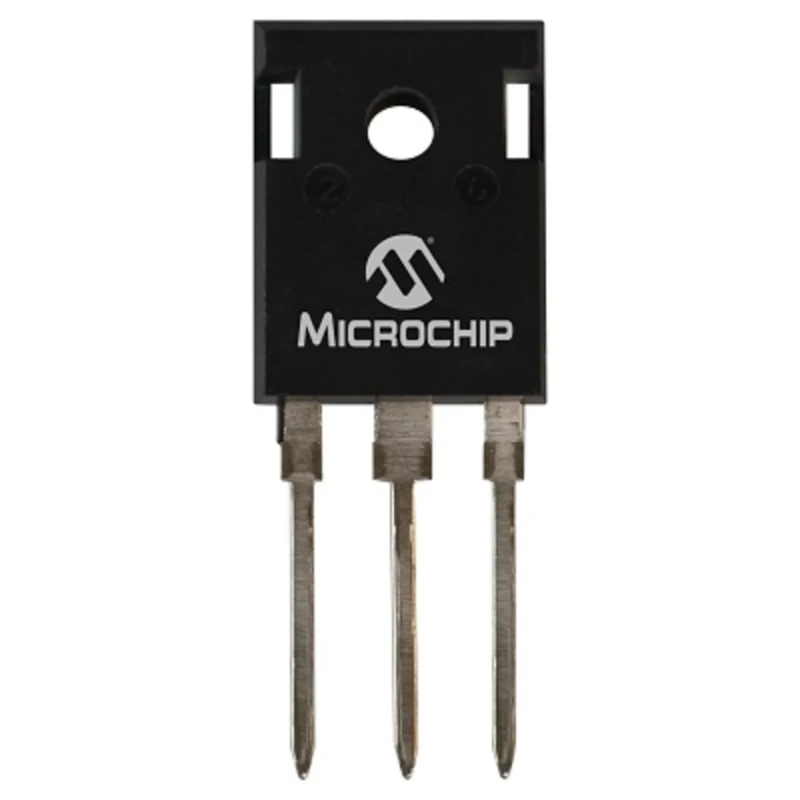

Microchip Type N-Channel MOSFET 20 A, 700 V, TO-247 Package MSC090SMA070B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC090SMA070B |
| Mount Type | Through Hole |
| Series | MSC090SMA070B |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 20A |
| Maximum Drain Source Voltage Vds | 700V |
| Maximum Drain Source Resistance Rds | 8Ω |
| Maximum Power Dissipation Pd | 1.6W |
| Typical Gate Charge Qg @ Vgs | 38nC |
| Maximum Gate Source Voltage Vgs | 2V |
| Forward Voltage Vf | 1.8V |
Key Features
- Offers low capacitances and low gate charge for improved switching efficiency.
- Fast switching speed enabled by low internal gate resistance.
- Stable operation at high junction temperature up to 175°C.
- Features a fast and reliable body diode with superior avalanche ruggedness.
- RoHS compliant, suitable for high voltage industrial applications.
- Designed for use in power conversion and motor control systems.
- Package type supports through-hole mounting for easy PCB integration.
- Typical gate charge of 38 nC at Vgs ensures rapid response.
Product Description
Microchip MSC090SMA070B is a high performance Type N-Channel MOSFET designed for demanding industrial and power electronics applications. It features a maximum continuous drain current of 20 A and a maximum drain-source voltage of 700 V packaged in a TO-247 through-hole package. Its silicon carbide technology offers significant improvements over traditional silicon MOSFETs and IGBTs, resulting in greater efficiency and reliability.
Low internal gate resistance and low gate charge of 38 nC allow for fast switching speeds, enhancing overall circuit performance and reducing power loss. The device operates stably at high junction temperatures up to 175°C, making it suitable for harsh environments. It includes a fast and dependable body diode with excellent avalanche ruggedness, ensuring robustness during switching transitions.
This MOSFET complies with RoHS standards, supporting environmentally friendly manufacturing processes. It is ideal for use in industrial motor drives, power conversion, renewable energy systems, and other high voltage equipment requiring efficient switching components.
Key attributes include a maximum forward voltage of 1.8 V and a maximum gate-source voltage of 2 V, enabling precise control in various circuit topologies. The through-hole TO-247 package facilitates easy mounting and heat dissipation on printed circuit boards.
Low capacitances and low gate charge improve system efficiency. Fast switching speeds provided by low internal gate resistance. Stable high temperature operation up to 175°C junction temperature. Robust body diode with superior avalanche ruggedness for reliability.
RoHS compliant for environmental safety. Suitable for power electronics, motor control, and industrial automation.
This product provides a high-performance, reliable solution for applications demanding efficient power handling and thermal stability. Choose Microchip MSC090SMA070B for enhancing your semiconductor component designs with durable and efficient switching technology.
Explore more semiconductor devices and power MOSFET solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the Microchip MSC090SMA070B is 20 A.
This model has a maximum drain-source voltage of 700 V.
The typical gate charge at Vgs for this MOSFET is 38 nC.
The operating temperature range for this MOSFET is from -55°C to 175°C.
This model is packaged in a TO-247 through-hole package.
The maximum gate-source voltage for the MSC090SMA070B is 2 V.
The forward voltage of this MOSFET is 1.8 V.
It supports through-hole mounting for easy PCB integration.
Yes, this MOSFET is RoHS compliant, supporting environmentally friendly manufacturing processes.
The maximum power dissipation for the MSC090SMA070B is 1.6 W.
This MOSFET is suitable for power conversion, motor control systems, and industrial automation applications.
The maximum drain-source resistance for the MSC090SMA070B is 8 Ω.
