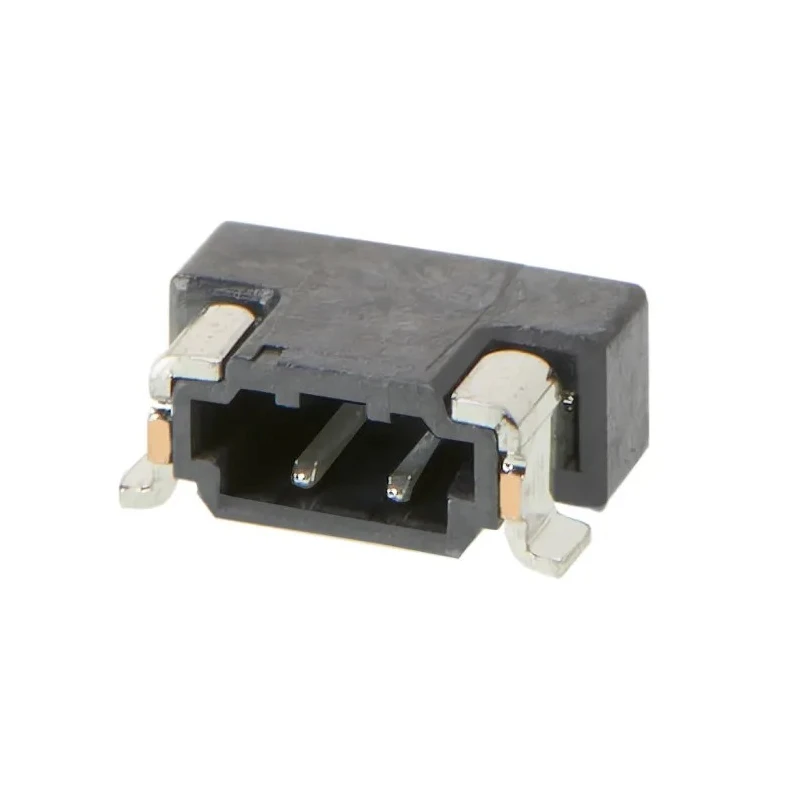

Molex Zero-Hachi Series Right Angle Surface Mount PCB Header 2 Contacts 0.8 mm Pitch 1 Row Shrouded 214721-0020
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Zero-Hachi |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 0.8mm |
| Standards/Approvals | RoHS, UL |
| Contact Plating | Matt Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 2mm |
Key Features
- The connector features a shrouded design for enhanced protection.
- It supports a current rating of 1A, suitable for low power PCB applications.
- The thermoplastic housing material ensures durability and electrical insulation.
- Designed with a dual-point contact system for reliable electrical connection and mating retention.
- Right angle orientation allows efficient PCB space utilization in compact devices.
- Contact plating is matt tin over a copper alloy material to ensure conductivity and corrosion resistance.
- This product operates reliably between -20°C to 105°C, suitable for diverse industrial environments.
- Termination is surface mount type, ideal for automated PCB assembly processes.
Product Description
Molex 214721-0020 Zero-Hachi Series is a high-precision right angle surface mount PCB Header featuring 2 contacts with a 0.8 mm pitch and a single row. It is designed to provide robust wire-to-board connection in applications demanding compact footprint and reliable electrical performance.
The header’s thermoplastic housing is shrouded, protecting against physical damage and ensuring secure retention on the PCB. The dual-point contact design enhances the connector's mating reliability and electrical contact stability, crucial for industrial, electronics manufacturing, and instrumentation applications.
The connector supports 1A current and operates in a temperature range of -20°C to 105°C, making it well suited for environments including industrial automation, telecommunications, consumer electronics, and automotive electronics. The matt tin plating on copper alloy contacts safeguards against oxidation and improves signal integrity.
Surface mount termination simplifies automated assembly on printed circuit boards, supporting high-volume production efficiency. Manufactured in Korea, this product adheres to RoHS and UL compliance ensuring environmental and safety standards are met.
The connector features a shrouded design for enhanced protection. Supports current rating of 1A suitable for low power circuit applications. Thermoplastic housing material provides electrical insulation and durability. Dual-point contact system secures reliable electrical connection and mating retention.
Right angle orientation optimizes PCB space in compact device design. Matt tin plated copper alloy contact material resists corrosion and maintains conductivity. Operating temperature range of -20°C to 105°C supports diverse applications.
Surface mount design enables efficient automated PCB assembly. Manufactured in Korea with RoHS and UL certification compliance. Explore more PCB connectors and headers designed for modern electronics and industrial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1A, making it suitable for low power PCB applications.
The pitch size of this header is 0.8 mm, allowing for compact connections on printed circuit boards.
It operates reliably within a temperature range of -20°C to 105°C, suitable for diverse industrial environments.
The housing is made of thermoplastic, while the contacts are composed of copper alloy with matt tin plating for corrosion resistance.
This model features 2 contacts, designed for reliable wire-to-board connections.
It utilizes a surface mount termination type, which is ideal for automated PCB assembly processes.
The header has a right angle orientation, optimizing PCB space utilization in compact devices.
Yes, the connector adheres to RoHS compliance, ensuring it meets environmental standards.
The shrouded design enhances protection against physical damage and ensures secure retention on the PCB.
This model has a single row configuration, which is common for compact PCB designs.
The mating pin length is 2 mm, facilitating a secure connection with compatible components.
It is suitable for applications in industrial automation, telecommunications, consumer electronics, and automotive electronics.
