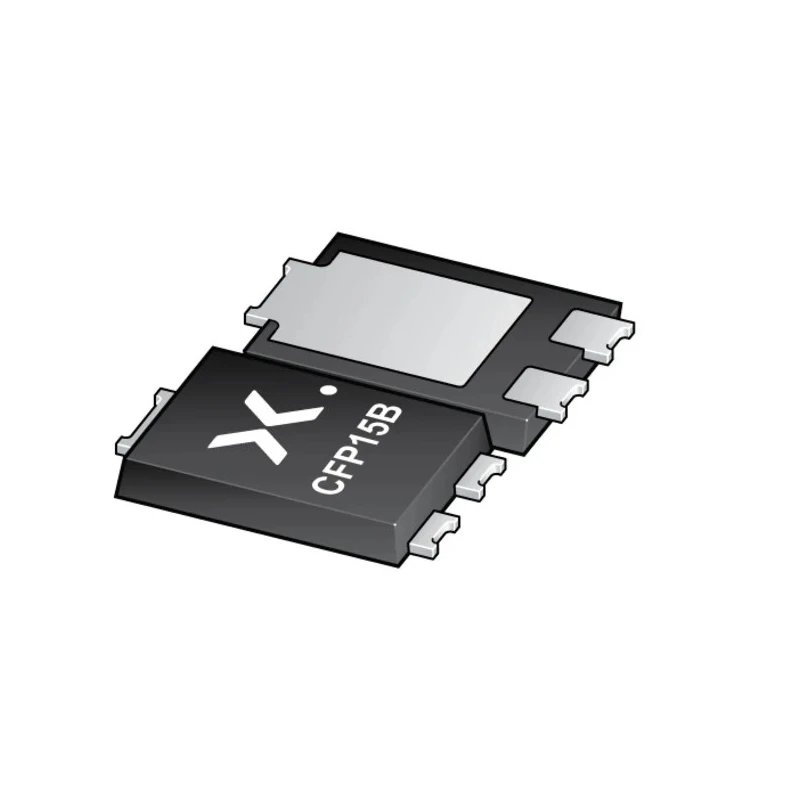

Nexperia 60 V 2 A Surface-Mount Schottky Diode CFP15B Package PMEG060T040CLPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG060T040CLPEZ |
| Mount Type | Surface |
| Series | PMEG060T040CLPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Maximum Forward Voltage Vf | 620mV |
Key Features
- Encapsulated in a CFP15B flat lead surface-mounted plastic package.
- Low forward voltage drop of 620 mV for efficient operation.
- Low leakage current due to advanced Trench MEGA Schottky technology.
- Operating temperature range from -55°C to 175°C for robust industrial use.
- High peak non-repetitive forward surge current rating of 110 A.
- Automotive grade device meeting AEC-Q101 standard for reliability.
- Power clip-bond technology enables high power handling capability.
- Ideal for power and general application rectification in electronics.
Product Description
Nexperia PMEG060T040CLPEZ is a high-efficiency dual Schottky barrier rectifier diode designed for surface mounting in a CFP15B power and flat lead plastic package. It features a common cathode configuration suitable for a wide range of industrial, automotive, and electronic power applications.
This diode supports a maximum continuous forward current of 2 A per diode and can withstand peak reverse repetitive voltages up to 60 V. The device offers a low forward voltage of 620 mV, minimizing power loss and enhancing efficiency in circuit designs.
Constructed using Trench MEGA Schottky technology, it ensures low leakage currents and high reliability under extended temperature ranges from -55°C to 175°C. It supports high surge currents up to 110 A for short duration events, enhancing robustness against electrical transients.
The PMEG060T040CLPEZ complies with automotive standard AEC-Q101 and is RoHS compliant, making it suitable for automotive and industrial system integrations requiring stringent quality and environmental standards.
Its compact CFP15B package measuring approximately 0.95 mm height, combined with clip-bond technology, provides excellent power density and thermal performance, suitable for space-constrained PCB layouts.
Encapsulated in a surface-mount CFP15B plastic package optimized for power handling. Low forward voltage drop minimizes power dissipation in circuits. Wide operating temperature range supports harsh environments. High surge current capability for transient spike tolerance.
Compliance with RoHS and automotive AEC-Q101 standards ensures quality and environmental safety. Ideal for general purpose diode applications in power supply, automotive electronics, and industrial equipment. Explore more high-quality Schottky diodes and rectifiers in the Electronics & Electricals category on EnvMart for your specialized electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the PMEG060T040CLPEZ is 2 A per diode.
This model can withstand a peak reverse repetitive voltage of up to 60 V.
The forward voltage drop is 620 mV, which helps minimize power loss in circuit designs.
The operating temperature range for the PMEG060T040CLPEZ is from -55°C to 175°C.
It is encapsulated in a CFP15B flat lead surface-mounted plastic package.
The diode has a peak non-repetitive forward surge current rating of 110 A.
Yes, it complies with the automotive standard AEC-Q101, ensuring reliability for automotive applications.
It is constructed using advanced Trench MEGA Schottky technology, which ensures low leakage currents.
The CFP15B package has an approximate height of 0.95 mm, making it suitable for space-constrained PCB layouts.
RoHS compliance indicates that the PMEG060T040CLPEZ meets environmental safety standards by restricting hazardous substances.
This model is ideal for power and general application rectification in electronics, automotive electronics, and industrial equipment.
The PMEG060T040CLPEZ is manufactured in India.
