Nexperia Bipolar Transistor PNP, 3-Pin DFN1110D-3 Package, -500 mA Collector Current, -45 V Collector Emitter BC807-40QB-QZ

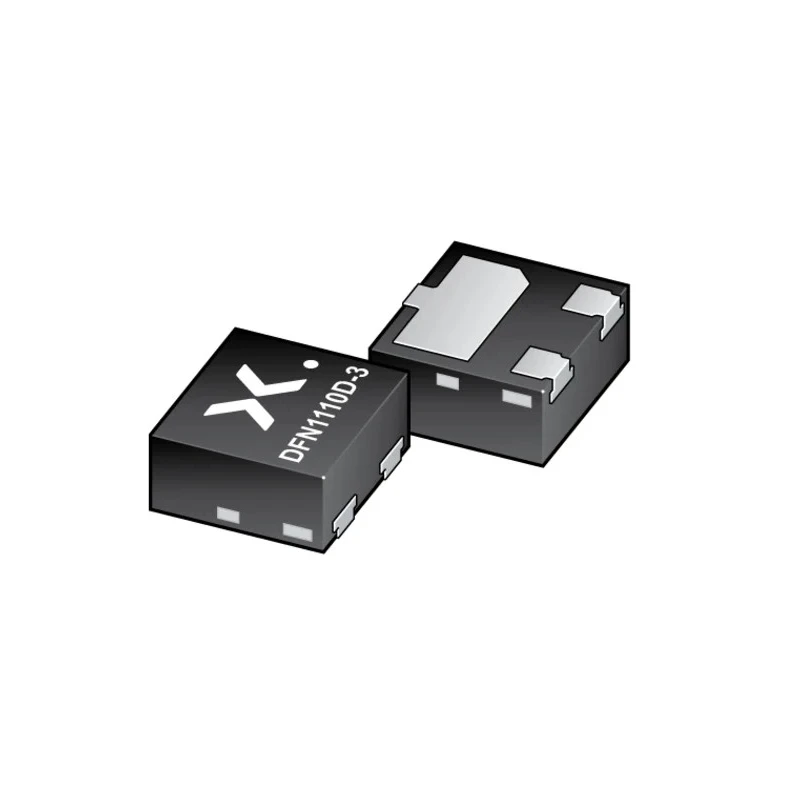

The Nexperia BC807-40QB-QZ is a high-quality bipolar transistor featuring a PNP configuration designed for general-purpose applications in electronic circuits. It is housed in an ultra-compact DFN1110D-3 plastic surface-mount package, also known as SOT8015, that includes side-wettable flanks facilitating reliable solder inspection during automated optical inspection (AOI) processes.

This transistor supports a maximum DC collector current of -500 mA and a maximum collector-emitter voltage of -45 V, making it well-suited for moderate power amplification needs. The device operates efficiently across a wide temperature range from -55°C to 150°C, ensuring stable performance in industrial, automotive, and consumer electronic applications.

Its minimum DC current gain (hFE) of 250 guarantees solid amplification characteristics, while the maximum emitter-base voltage of -5 V and maximum collector-base voltage of -50 V define its robust electrical limits. The package's low height of 0.5 mm and small footprint enable designers to save PCB space without compromising reliability.

Meeting the stringent AEC-Q101 automotive standard certification, this transistor is ideal for automotive electronics and other demanding environments. The product complies with the RoHS directive, ensuring environmentally responsible production and usage.

Supports a collector current up to -500 mA. Maximum collector-emitter voltage of -45 V. Complies with AEC-Q101 automotive standard. Low profile DFN1110D-3 surface-mount plastic package. Wide operating temperature range from -55°C to 150°C.

Minimum current gain of 250 (hFE). High power dissipation capability. Side-wettable flanks for automated optical inspection. RoHS compliant for environmental safety. Smaller footprint compared to conventional leaded SMD packages.

This transistor is suitable for various industrial, automotive, laboratory, manufacturing, and consumer electronic applications where reliable switching and amplification are required. Designers benefit from its compact size, high reliability, and proven electrical performance. Explore more semiconductor components and Bipolar Transistors on EnvMart for integrated circuit design and repair needs.
