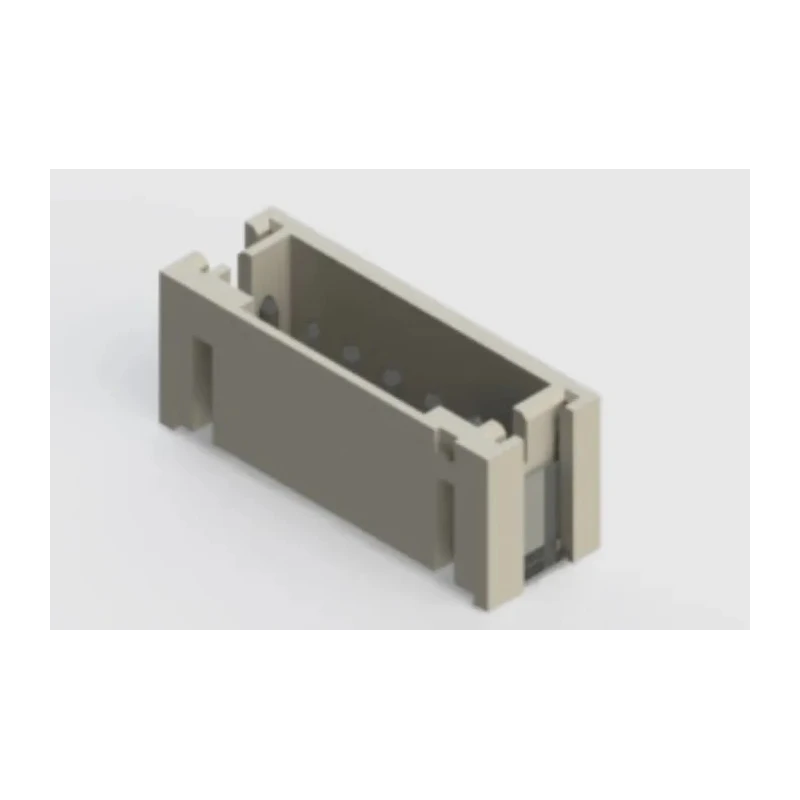

EDAC 140 Series Vertical Surface PCB Header, 6 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-506-417-011

Free Delivery in India | Lowest Global Shipping Charges

EDAC 140 Series Vertical Surface PCB Header, 6 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-506-417-011

Name: EDAC 140 Series Vertical Surface PCB Header, 6 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-506-417-011
Brand: EDAC
SKU: 114169
Price: 0.88 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand EDAC Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	EDAC
Orientation	Vertical
Current	2A
Mount Type	Surface
Housing Material	Polyamide 9T
Contact Material	Brass
Series	140
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Female
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a shrouded housing made of Polyamide 9T with UL94V-0 rated insulation.
Supports a maximum current of 2A and voltage of 100V for robust electrical performance.
Constructed with brass contacts plated with tin for corrosion resistance.
Designed for vertical orientation with top entry wire connection and solder termination.
Suitable for operating temperatures from -40°C to 105°C, ensuring reliability under diverse conditions.
Offers high insulation resistance of 1000 megaohms minimum for electrical isolation.
Compliant with RoHS standards, ensuring environmentally safe manufacturing.
Ideal for high-density internal wire to PCB connections in electronic devices.

Product Description

EDAC 140-506-417-011 Vertical Surface PCB Header is a high-density, reliable wire-to-board connector designed with 6 female contacts arranged in a single row with a 2 mm pitch. This shrouded connector features a polyamide 9T housing that is UL94V-0 rated for flame retardance and durability in demanding electronics applications.

The brass contacts with tin plating ensure excellent conductivity and corrosion resistance. With a current rating of 2A and voltage rating of 100V, this component provides stable electrical connections. It is suited for vertical orientation and surface mount assembly with solder termination for secure mechanical and electrical integration.

Operating temperature ranges from -40°C to 105°C, making it suitable for various industrial, electronic manufacturing, and automated machinery environments. Its high insulation resistance of 1000 megaohms minimum guarantees efficient isolation between connections, meeting high-quality electrical standards.

The connector complies with RoHS directives, facilitating environmentally conscious product designs. It is typically deployed in electronics manufacturing, PCB assembly, instrumentation, and electrical component industries requiring compact, dependable PCB interface solutions.

Shrouded polyamide 9T housing with UL94V-0 rating. 6 female brass contacts plated with tin for enhanced durability. 2 mm pitch, single-row configuration for compact PCB layouts. 2A current and 100V voltage ratings ensure stable power delivery.

Surface mount solder termination with vertical mount orientation. Wide operating temperature range from -40°C to 105°C. High insulation resistance of 1000 megaohms for electrical isolation. RoHS compliant for environmentally safe production.

Suitable for industrial electronics, manufacturing, and automation. Made in China with strict quality control standards. Explore further in EnvMart's Electronics Components section for compatible PCB connectors and high-performance electronic components.

Explore more products in our PCB Connectors & Wire Housings category.
