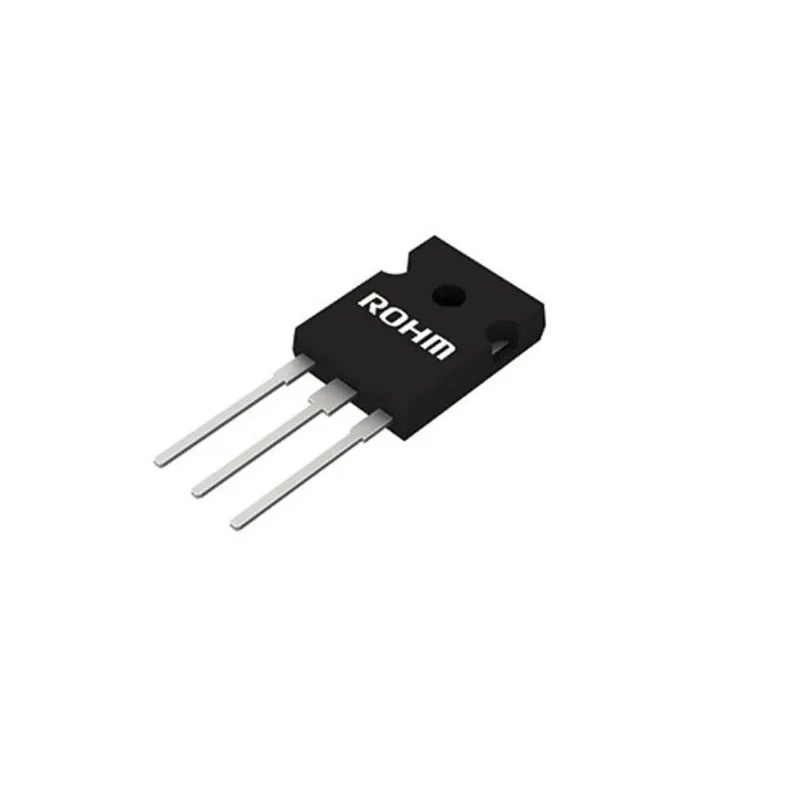

ROHM N-Channel IGBT 40 A 650 V TO-247N 3-Pin Through Hole RGW80TS65EHRC11
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RGW80TS65EHRC11 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247N |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 40A |
| Maximum Collector Emitter Voltage Vceo | 650V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.9V |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Power Dissipation Pd | 214W |
| Maximum Gate Emitter Voltage VGEO | ±30 V |
Key Features
- Designed for high-speed switching up to 1 MHz improving efficiency in electronic applications.
- Maximum power dissipation of 214 W enables handling of considerable loads.
- Equipped with low collector emitter saturation voltage for reduced power loss.
- Wide operating temperature range from -40°C to 175°C suits harsh conditions.
- AEC-Q101 qualified ensuring automotive-grade reliability and standards compliance.
- Pb-free lead plating and RoHS compliant supporting environmental safety standards.
- Type N-Channel facilitates efficient switching in power applications.
- Through hole mount with 3-pin configuration for ease of PCB insertion and thermal management.
Product Description
The ROHM RGW80TS65EHRC11 is a high-performance N-Channel Insulated Gate Bipolar Transistor (IGBT) designed for power electronics applications requiring robust switching capabilities. Featuring a maximum continuous collector current of 40 A and a collector emitter voltage rating of 650 V, this component delivers reliable performance in demanding environments.
Housed in a durable TO-247N 3-pin through hole package, the device supports a maximum power dissipation of 214 W, making it ideal for use in automotive electronics, DC-DC converters, power factor correction (PFC) circuits, and industrial inverters. Its high-speed switching capability up to 1 MHz enhances energy efficiency and reduces switching losses, vital for modern power supply and motor control applications.
With a maximum gate emitter voltage of ±30 V and a low collector emitter saturation voltage of 1.9 V, this IGBT ensures minimal conduction losses during operation. The device operates effectively within a wide temperature range from -40°C to 175°C, confirming its suitability for automotive and industrial usage where thermal stability is critical.
This component is manufactured following the AEC-Q101 automotive standard, guaranteeing high reliability and quality in automotive applications. It is RoHS compliant with Pb-free lead plating, aligning with environmental protection directives.
High-speed switching with low loss characteristics improving overall system efficiency. Wide operating temperature range for reliable use in automotive and industrial sectors. Robust TO-247N package facilitates heat dissipation and easy PCB mounting.
Compliance with automotive quality standards ensures dependable performance. Environmental compliance including RoHS and lead-free plating.
Applications include automotive electronics, industrial inverters, DC-DC converters, power supplies, and power switching circuits. This IGBT’s reliable and efficient design makes it suitable for usage in various industrial, automotive, and commercial power electronics systems.
Explore more components in the Electronics & Electricals category for your industrial power control requirements on EnvMart.
Explore more products in our IGBTs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for the ROHM RGW80TS65EHRC11 is 40 A.
This IGBT has a collector emitter voltage rating of 650 V.
It supports a maximum power dissipation of 214 W, which allows it to handle considerable loads.
The operating temperature range for this model is from -40°C to 175°C.
The ROHM RGW80TS65EHRC11 is housed in a TO-247N 3-pin through hole package.
The maximum gate emitter voltage for this IGBT is ±30 V.
This model has a low collector emitter saturation voltage of 1.9 V, which helps reduce conduction losses during operation.
Yes, it is manufactured following the AEC-Q101 automotive standard, ensuring high reliability and quality for automotive applications.
This IGBT is suitable for automotive electronics, industrial inverters, DC-DC converters, power supplies, and power switching circuits.
The pin count for the ROHM RGW80TS65EHRC11 is 3.
It is RoHS compliant and features Pb-free lead plating, aligning with environmental safety standards.
This model utilizes an N-channel type, which facilitates efficient switching in power applications.
