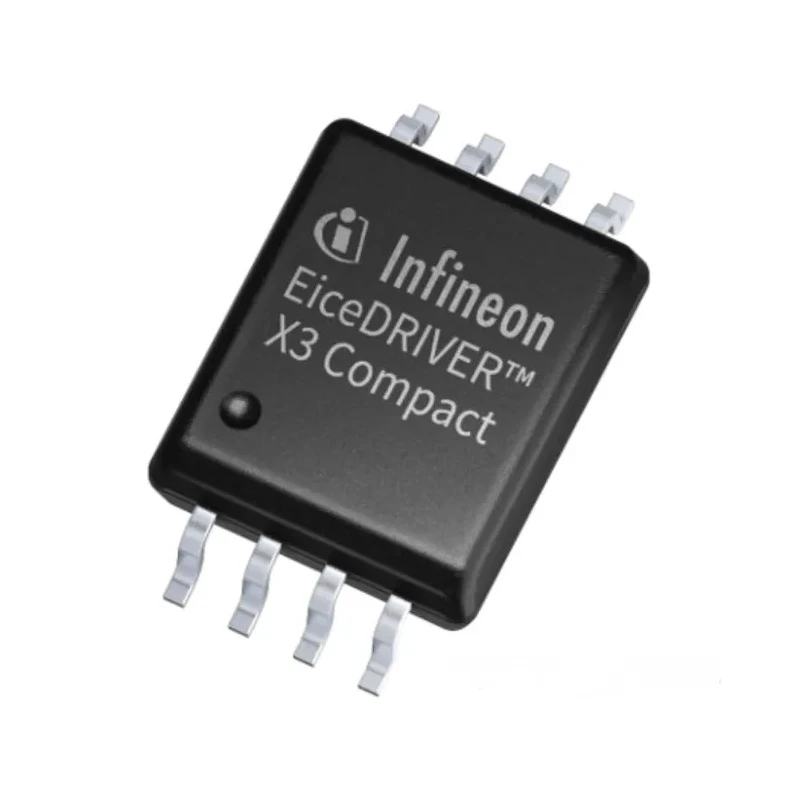

Infineon MOSFET Gate Driver Dual Output 5.5 A 15V 8-Pin DSO Package 1ED3120MC12HXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.64mm |
| Length | 7.5mm |
| Model | 1ED3120MC12HXUMA1 |
| Width | 6.4mm |
| Mount Type | Surface |
| Series | 1ED3120MC12H |
| Output Current | 5.5A |
| Maximum Operating Temperature | 125°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Rise Time | 30ns |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 2 |
| Fall Time | 30ns |
| Driver Type | MOSFET |
Key Features
- Features fast rise and fall times of 30ns for efficient switching.
- Supports operation in ambient temperatures from -40°C to 125°C.
- Includes active shutdown for safe IGBT turn-off in disconnected states.
- Compact surface-mount design measuring 7.5mm length, 6.4mm width, and 2.64mm height.
- Suitable for high ambient temperature and fast switching applications.
- Integrated filters reduce the need for external components.
- Wide supply voltage range supports unipolar or bipolar operation.
- Provides short-circuit clamping to limit gate voltage during faults.
Product Description
Infineon 1ED3120MC12HXUMA1 MOSFET Gate Driver is a high-performance power management IC designed for driving MOSFETs with dual outputs providing a peak output current of 5.5 A. The device is housed in a compact 8-pin DSO package optimized for surface mount technology. Operating voltage ranges between 3 V minimum and 15 V maximum, suitable for industrial and automotive electronic applications.
This gate driver features fast 30ns rise and fall times, enabling efficient switching and low propagation delay. It incorporates an active shutdown mechanism for safe IGBT operation when the output is disconnected, enhancing system reliability. The integrated short-circuit clamping protects the gate voltage during fault conditions.
Designed to operate over a broad temperature range from -40°C to 125°C, this device ensures dependable performance in harsh environments. Integrated filters minimize the need for additional external components, simplifying circuit design.
The 1ED3120MC12HXUMA1 supports both unipolar and bipolar supply voltage operation, offering flexibility in system applications. Its compact dimensions (7.5mm length, 6.4mm width, and 2.64mm height) make it suitable for dense PCB layouts.
This MOSFET Gate Driver is ideal for fast switching power circuits in industrial, automotive, manufacturing, and power supply applications requiring precise gate control and protection features.
Features fast rise and fall times of 30ns for efficient switching. Supports operation in ambient temperatures from -40°C to 125°C. Includes active shutdown for safe IGBT turn-off in disconnected states. Compact surface-mount design measuring 7.5mm length, 6.4mm width, and 2.64mm height.
Suitable for high ambient temperature and fast switching applications. Integrated filters reduce the need for external components. Wide supply voltage range supports unipolar or bipolar operation. Provides short-circuit clamping to limit gate voltage during faults.
Comprises the 1ED31xx family series known for stable timing and reliability. Explore other electronic components and gate drivers at EnvMart to find compatible parts for your designs and projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a peak output current of 5.5 A.
It operates with a supply voltage range from a minimum of 3 V to a maximum of 15 V.
The compact surface-mount design measures 7.5 mm in length, 6.4 mm in width, and 2.64 mm in height.
It features fast rise and fall times of 30 ns, enabling efficient switching.
It supports operation in ambient temperatures ranging from -40°C to 125°C.
This model has two outputs.
Yes, it includes an active shutdown mechanism for safe IGBT turn-off and short-circuit clamping to limit gate voltage during faults.
It is housed in an 8-pin DSO package optimized for surface mount technology.
It is suitable for fast switching power circuits in industrial, automotive, manufacturing, and power supply applications.
The integrated filters reduce the need for additional external components, simplifying circuit design.
It is part of the 1ED31xx family series known for stable timing and reliability.
This model is classified as a MOSFET driver.
