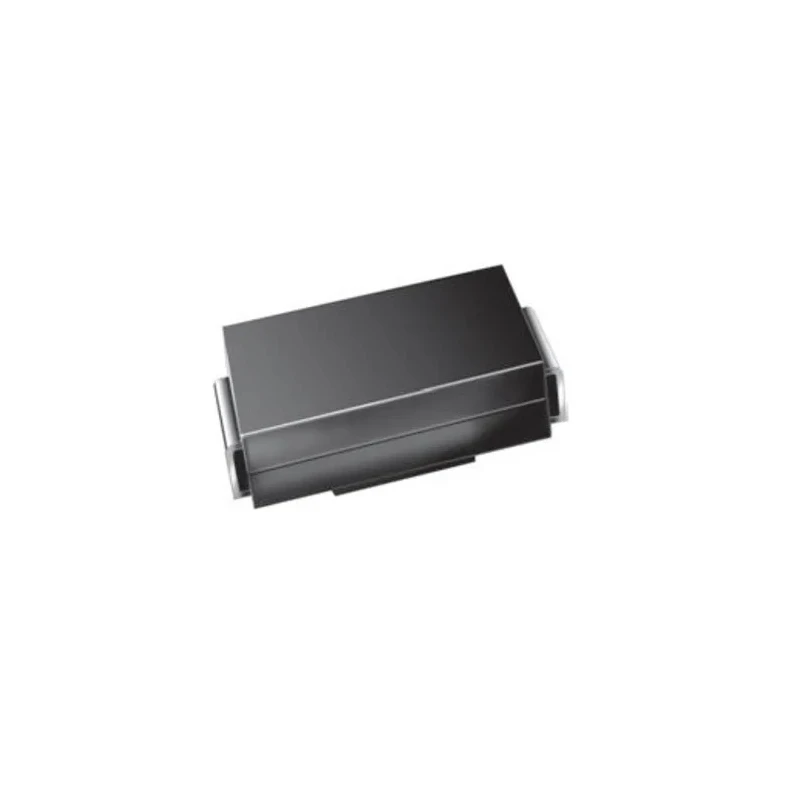

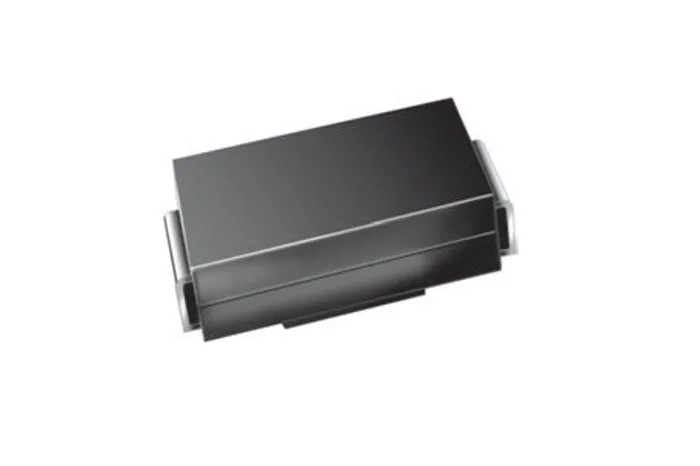

Vishay 68 V General Purpose Zener Diode Single 1 W Surface Mount SMA Package SML4760AHE3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.29mm |
| Length | 4.5mm |
| Model | SML4760AHE3_A/H |
| Mount Type | Surface |
| Series | SML47xx |
| Maximum Operating Temperature | 150°C |
| Package Type | SMA (DO-214AC) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 4mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 68V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 150Ω |
Key Features
- Single element Zener diode designed for surface mount applications.
- Nominal Zener voltage of 68 volts with ±5% tolerance.
- Power dissipation capacity of 1 watt ensures reliable operation.
- SMA package (DO-214AC) offering compact surface mount design.
- Low Zener impedance of 150 ohms enabling low regulation factor.
- Test current rated at 4 mA for voltage regulation accuracy.
- Maximum reverse leakage current of 5 microamperes ensures minimal leakage.
- Operating temperature range from -65°C to 150°C for harsh conditions.
Product Description
Vishay SML4760AHE3_A/H is a high-quality General Purpose Zener Diode with a nominal Zener voltage of 68 volts, designed for surface-mount applications in the SMA (DO-214AC) package. This diode delivers reliable voltage regulation with a 1 watt maximum power dissipation, making it suitable for a wide range of industrial, automotive, and electronic control systems.
The single-element diode features a low Zener impedance of 150 ohms, ensuring a low regulation factor and stable voltage output. It is rated for a test current of 4 mA which guarantees precise voltage clamping during operation. The device maintains a maximum reverse leakage current of just 5 microamperes, reducing power losses.
Engineered to operate in demanding environments, the diode supports temperatures ranging from -65°C to 150°C. This wide operating range makes it versatile for harsh industrial and automotive applications. The product complies with important industry standards including IEC 61000-4-2, IEC 61760-1, and RoHS, ensuring quality and environmental compliance. Additionally, it meets the automotive standard AEC-Q101, confirming its suitability for automotive electronics.
The compact SMA package allows efficient surface mounting, reducing PCB space and easing assembly for modern electronics manufacturing. Typical use cases include industrial power supplies, voltage regulation circuits, and electronic device protection in automotive and manufacturing equipment.
Single element, surface mount zener diode in SMA package. 68 V nominal voltage with 5% tolerance for accurate voltage regulation. Maximum power dissipation of 1 W supports reliable operation. Low zener impedance and leakage current for efficient performance.
Wide temperature range compatible with industrial and automotive use. Meets IEC and RoHS standards plus automotive AEC-Q101 certification. Compact package designed to save PCB space in electronics applications.
Vishay Zener Diodes like the SML4760AHE3_A/H model are ideal for ensuring steady voltage supplies in various electronics and electrical systems. Explore more Vishay semiconductor components on EnvMart to enhance your industrial and automotive projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 68 volts with a tolerance of ±5%.
This model has a maximum power dissipation capacity of 1 watt, ensuring reliable operation.
The operating temperature range for this diode is from -65°C to 150°C, making it suitable for harsh environments.
The maximum reverse leakage current is 5 microamperes, which helps minimize power losses.
It comes in an SMA (DO-214AC) package, which is designed for surface mount applications.
The Zener impedance of this model is 150 ohms, contributing to a low regulation factor.
The test current rated for this diode is 4 mA, which ensures voltage regulation accuracy.
This diode is a single-element configuration, designed for specific applications requiring a single Zener function.
It complies with the automotive standard AEC-Q101, confirming its suitability for automotive electronics.
The dimensions of this diode are 4.5 mm in length and 2.29 mm in height.
This Zener diode is suitable for industrial power supplies, voltage regulation circuits, and electronic device protection in automotive and manufacturing equipment.
The country of origin for this diode is India.
