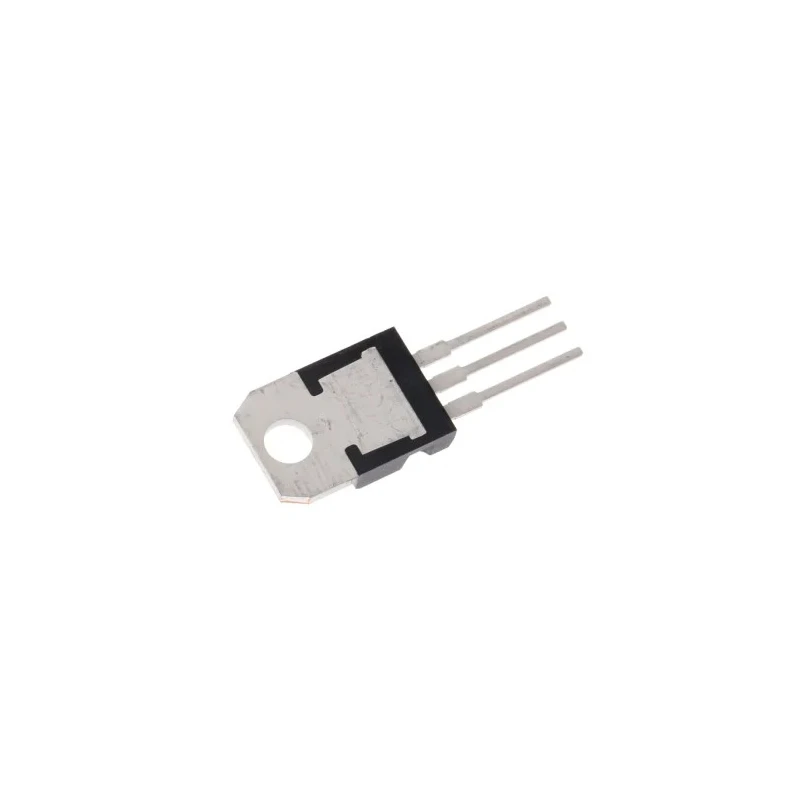

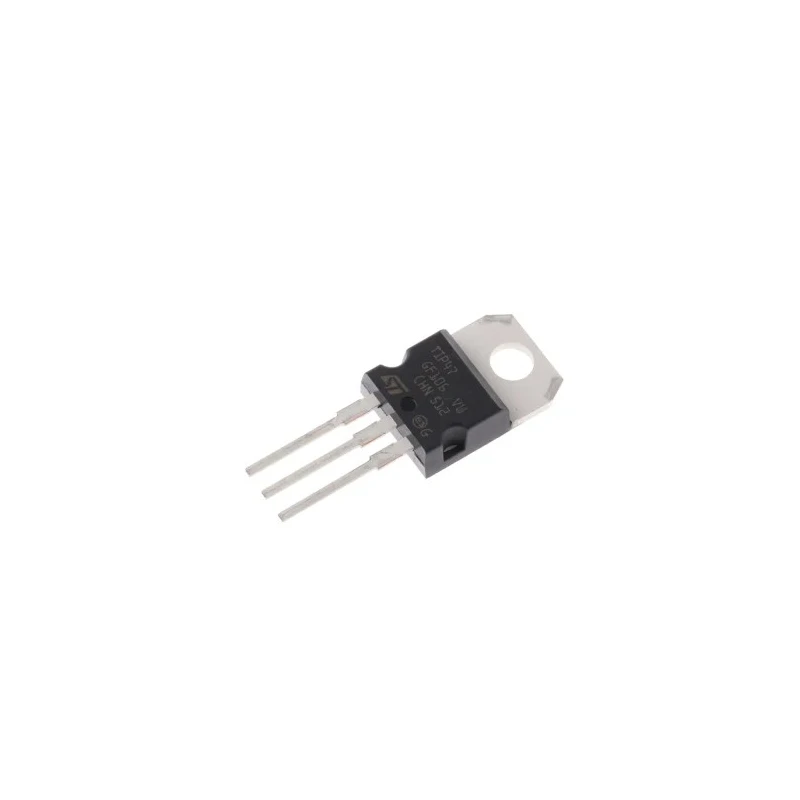

STMicroelectronics NPN Transistor 1 A 250 V TO-220 Package Through Hole TIP47

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics NPN Transistor 1 A 250 V TO-220 Package Through Hole TIP47

Name: STMicroelectronics NPN Transistor 1 A 250 V TO-220 Package Through Hole TIP47
Brand: STMicroelectronics
SKU: 189911
Price: 0.99 USD
Availability: InStock



Category Bipolar Transistors Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	29.75mm
Length	10.4mm
Model	TIP47
Width	4.6mm
Mount Type	Through Hole
Maximum Operating Temperature	150°C
Package Type	TO-220
Minimum Operating Temperature	0°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	250V
Minimum DC Current Gain hFE	10
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	350V
Maximum Power Dissipation Pd	2W
Maximum DC Collector Current Idc	1A
Transistor Configuration	Single
Maximum Transition Frequency ft	10MHz
Bourns TIP47 NPN Bipolar Transistor, 1 A, 250 V, 3-Pin TO-220Brand	Bourns

Key Features

Supports a maximum DC collector current of 1 ampere.
Maximum collector-emitter voltage rating of 250 volts.
Package type is TO-220 suitable for through-hole mounting.
Has a 3-pin configuration for standard transistor applications.
Maximum power dissipation is 2 watts.
Minimum DC current gain (hFE) is 10.
Operates reliably from 0°C to 150°C.
Maximum transition frequency is 10 MHz, suitable for moderate-speed switching.

Product Description

STMicroelectronics TIP47 is a high-voltage NPN bipolar junction transistor designed for power amplification and switching applications. Rated for a maximum collector current of 1 ampere and a collector-emitter voltage of 250 volts, it is housed in a TO-220 package ideal for through-hole mounting.

This transistor features a minimum DC current gain of 10 and can dissipate up to 2 watts of power, making it suitable for medium power discrete semiconductor circuits. Its operating temperature range spans from 0 to 150 degrees Celsius, providing robust performance in various industrial, electronic, and automotive environments.

With a maximum transition frequency of 10 MHz, the TIP47 can handle a range of switching and amplification tasks including signal modulation, power regulation, and motor control. The device’s pin count is three, arranged in a standard configuration for easy integration in circuit designs.

Typical applications include power regulation in electronic components, amplification stages in signal processing, and use in automotive and industrial control systems requiring reliable NPN transistor performance.

Supports a maximum DC collector current of 1 ampere. Maximum collector-emitter voltage rating of 250 volts. Package type is TO-220 suitable for through-hole mounting. Has a 3-pin configuration for standard transistor applications.

Maximum power dissipation is 2 watts. Minimum DC current gain (hFE) is 10. Operates reliably from 0°C to 150°C. Maximum transition frequency is 10 MHz, suitable for moderate-speed switching. Maximum collector-base voltage is 350 volts.

Transistor polarity is NPN, configured as a single transistor device.

STMicroelectronics delivers these transistors with consistent manufacturing quality and adherence to RoHS compliance, suitable for various industrial electronic assemblies and repair needs. EnvMart offers this reliable component within the Electronics & Electricals category under Semiconductor and Bipolar Transistors for seamless procurement.
