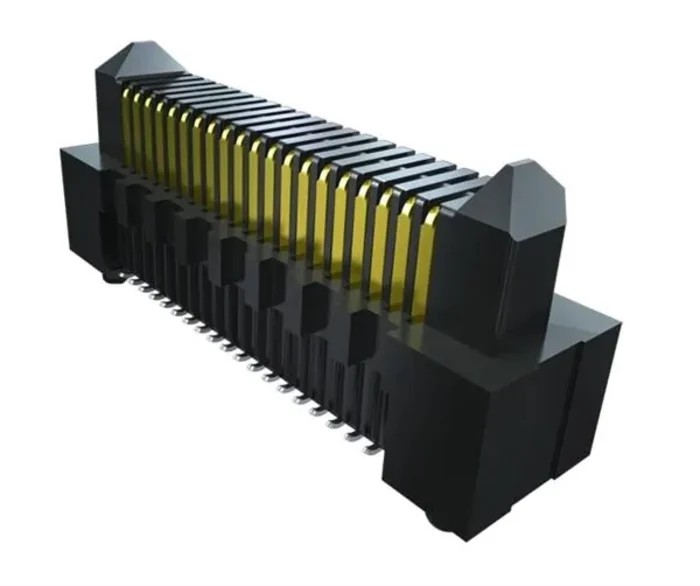

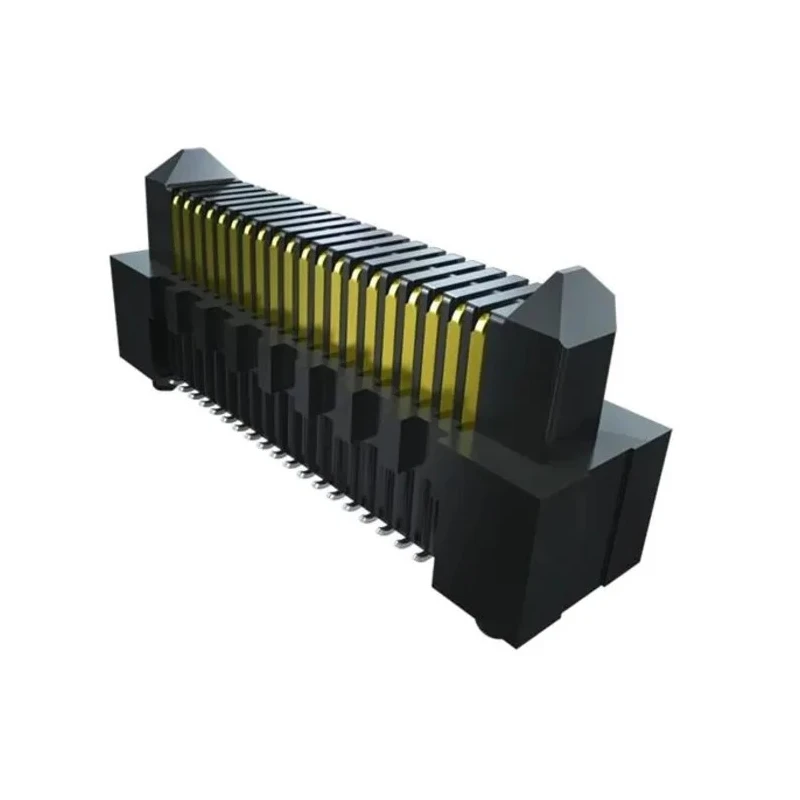

Samtec ERM8 Series Horizontal Surface PCB Header 120 Contacts 0.8 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 318V |
| Brand | Samtec |
| Orientation | Horizontal |
| Current | 1.4A |
| Model | ERM8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for high durability.
- Supports a current rating of 1.4 A per contact.
- Features gold-plated phosphor bronze contacts for reliable conduction.
- Horizontal orientation with two rows and shrouded design for protection.
- Operates within temperature range of -55°C to 125°C.
- Surface mount type suitable for high-density PCB assemblies.
- Rated for voltage up to 318 V ensuring safety and performance.
- Includes polyimide film pick and place pad and tape and reel packaging for automated assembly.
Product Description
The Samtec ERM8-060-08.0-L-DV-K-TR is a high-speed, rugged horizontal surface PCB Header designed for industrial and commercial electronic applications requiring reliable board-to-board connections. It features 120 contacts arranged in two rows with a pitch of 0.8 mm, delivering a compact and efficient interface.
Manufactured with a liquid crystal polymer housing, this shrouded connector ensures robust mechanical stability and resistance to harsh environmental conditions. The male contacts made of phosphor bronze are plated with light gold (0.000254 mm) on the contact area and matte tin on the tail, providing excellent conductivity and corrosion resistance.
This connector supports a current capacity of 1.4 A per contact and operates safely within a voltage rating of 318 V. It is engineered to withstand operating temperatures ranging from -55°C to 125°C, suitable for demanding industrial environments.
The horizontal orientation and surface mount design enable efficient PCB layout, while features like a polyimide film pick and place pad and tape and reel packaging facilitate automated manufacturing processes.
Ideal for applications in electronics manufacturing, telecommunications, computing, and industrial equipment, the ERM8 series ensures secure and efficient electrical connections essential for high-density PCBs.
Constructed with liquid crystal polymer housing for durability and performance. Phosphor bronze contacts gold plated for superior conductivity and longevity. Supports current rating of 1.4 A and voltage of 318 V. Operating temperature from -55°C to 125°C for versatility in harsh conditions.
Horizontal, shrouded, surface mount with two rows and 0.8 mm pitch spacing. Includes polyimide film pick and place pad for precise assembly. Packaged in tape and reel format compatible with automated pick and place machinery.
Explore a wide range of electronic components and PCB connectors at EnvMart to enhance the reliability and performance of your electronic assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.4 A per contact.
It is rated for a voltage of up to 318 V, ensuring safety and performance in electrical applications.
This connector operates within a temperature range of -55°C to 125°C, making it suitable for demanding environments.
It features 120 contacts arranged in two rows with a pitch of 0.8 mm.
The housing is made of liquid crystal polymer, and the contacts are made of phosphor bronze with gold plating for conductivity.
It utilizes a solder termination type for secure connections.
This model has a horizontal orientation, which aids in efficient PCB layout.
Yes, it includes a polyimide film pick and place pad and is packaged in tape and reel format for compatibility with automated pick and place machinery.
The shrouded design provides protection for the contacts, enhancing reliability during connections.
It is ideal for applications in electronics manufacturing, telecommunications, computing, and industrial equipment requiring reliable board-to-board connections.
The country of origin for this product is India.
The contacts have a pitch size of 0.8 mm, which allows for high-density PCB assemblies.
