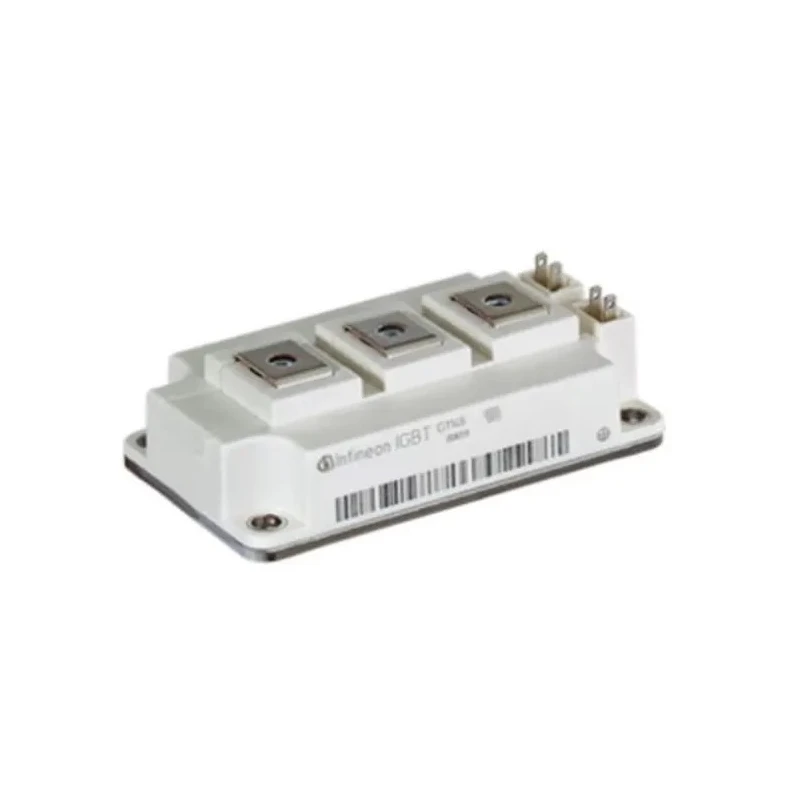

Infineon Type N-Channel IGBT Module 600 A 1200 V 7-Pin Standard Clamp FF600R12KE4EBOSA1

Infineon FF600R12KE4EBOSA1 Type N-Channel IGBT Module delivers robust performance with a maximum continuous collector current of 600 A and collector emitter voltage of 1200 V. This standard 7-pin clamp mount module offers a compact solution with a maximum power dissipation of 20 mW, optimized for high power industrial and commercial applications.

The module features emitter controlled HE diode and fast TRENCHSTOP IGBT4 technology within the 62mm C series, providing optimal electrical performance, increased reliability, and high power density. It operates effectively under a wide temperature range from -40°C to 150°C, suitable for demanding environments.

This IGBT module is UL approved (E83335), ensuring stringent safety and performance standards. It is designed to support motor control and drives, solar power systems, uninterruptible power supplies (UPS), and other high power converter applications where efficient energy management and reliability are critical.

Its clamp mounting and 7-pin standard package enable ease of integration in various industrial electronic assemblies. The module's low maximum collector emitter saturation voltage (VceSAT) of 75 V contributes to lower conduction losses, enhancing overall system efficiency.

Infineon’s IGBT module series is known for high creepage and clearance distances to improve safety and isolation, ideal for industrial and laboratory equipment manufacturing, renewable energy installations, and robust commercial electrical systems.

Designed with Type N-Channel IGBT for efficient switching performance. Standard 7-Pin package with clamp mount for reliable mechanical fixation. High maximum continuous collector current rating of 600 A at 1200 V voltage.

Wide operating temperature range suitable for harsh environments. UL safety approval certifies product quality and compliance. Low VceSAT voltage reduces power losses and increases efficiency. Ideal for motor control, solar energy, UPS, and power conversion industrial uses.

Part of the advanced 62mm C series with fast TRENCHSTOP technology.

This IGBT Module delivers premium performance for demanding electrical applications across industrial automation, renewable energy systems, and laboratory instrumentation. Explore more Infineon semiconductor modules and accessories at EnvMart for your electronic component needs.
