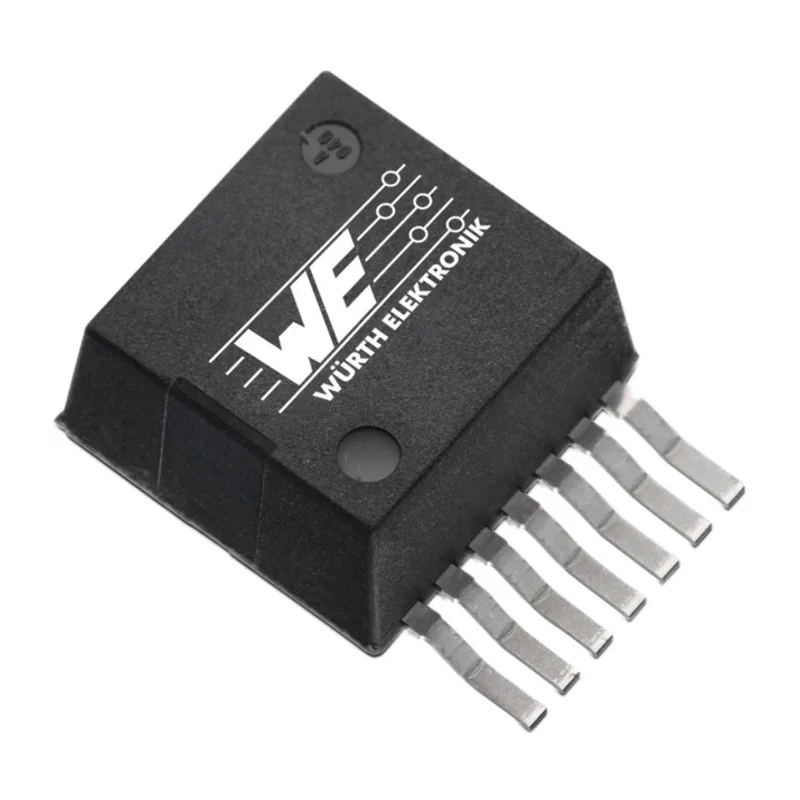

Wurth Elektronik 5-Channel DC/DC Power Supply Module, Adjustable Output, 24V, 5 V, 7-Pin PFM 171012402

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 5-Channel DC/DC Power Supply Module, Adjustable Output, 24V, 5 V, 7-Pin PFM 171012402

Name: Wurth Elektronik 5-Channel DC/DC Power Supply Module, Adjustable Output, 24V, 5 V, 7-Pin PFM 171012402
Brand: Wurth Elektronik
SKU: 110330



Category Power Module Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Malaysia
Brand	Wurth Elektronik
Height	4.57mm
Length	10.16mm
Width	9.85mm
Mount Type	Surface
Output type	Adjustable
Series	MagI3C
Topology	Step Down
Maximum Operating Temperature	125°C
Package Type	PFM
Minimum Operating Temperature	-40°C
Number of outputs	5
Maximum Input Voltage	42V
Protection	Thermal shut-down, inrush current, overvoltage and under-voltage
Maximum Switching Frequency	0.8MHz
Maximum Output Current	1.5A
Maximum Output Voltage	24V
Minimum Input Voltage	6V
Pin Count	7
Minimum Output Voltage	5V
7 PIN PFM (TO-263)	(L) 9.85 mm, (W) 10.16 mm, (H) 4.57 mm

Key Features

The module is designed for step-down topology with adjustable output voltages.
It operates with an input voltage range of 6V to 42V and a maximum output current of 1.5A per channel.
The 7-pin PFM package ensures compact surface mount installation.
Temperature range is from -40°C up to 125°C for reliable performance.
Includes protection features such as thermal shutdown, inrush current protection, overvoltage, and undervoltage protection.
It operates at a maximum switching frequency of 0.8 MHz to deliver efficient power conversion.
Peak efficiency ranges from 90 to 97%, meeting EN55022 class B EMI standards.
Compliant with RoHS and REACH environmental standards.

Product Description

Wurth Elektronik 171012402 5-Channel DC/DC Power Supply Module is a versatile variable step-down regulator module designed for efficient power management in electronic systems. It supports a maximum output voltage of 24V with adjustable outputs across five channels and operates over a wide input voltage range from 6V to 42V. Packaged in a compact 7-pin PFM surface-mount TO-263 package, it is suitable for space-constrained designs.

This power module uses step-down topology, featuring integrated current mode control with built-in compensation circuitry and soft start functionality to ensure smooth power-up and stable operation. The module offers protection features including thermal shutdown, inrush current protection, and overvoltage and undervoltage lockout protections to safeguard connected circuits.

Operating temperature range from -40°C to 125°C allows for reliable performance in harsh industrial environments. The module achieves peak efficiencies between 90% and 97%, complying with EN55022 class B EMI standards to minimize noise interference.

Its compact dimensions (10.16 mm length, 9.85 mm width, 4.57 mm height) and surface mount design allow easy integration into PCB layouts.

Typical applications include point of load DC-DC conversion, industrial control systems, telecommunications equipment, power supplies, and interfacing with microcontroller units (MCU), microprocessor units (MPU), digital signal processors (DSP), and field programmable gate arrays (FPGA).

The module provides adjustable voltage outputs optimized for various industrial and electronic applications. Integrated protection features enhance system reliability and longevity. Compact and efficient design supports modern PCB and electronic device standards.

High efficiency reduces power losses and thermal dissipation. Environmental compliance with RoHS and REACH standards ensures safety and sustainability. Explore related products and accessories in the Power Modules category at EnvMart for your electronic component needs.
