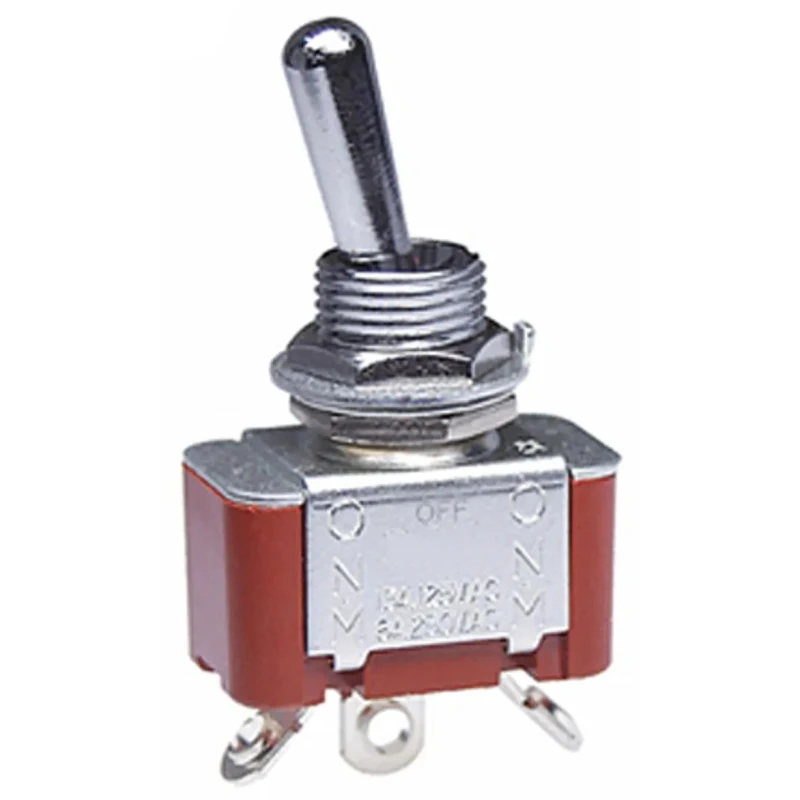

NKK Switches Toggle Switch Panel Mount On-Off-On SPDT Solder Terminal 30 V DC 125 V AC S308

Free Delivery in India | Lowest Global Shipping Charges

NKK Switches Toggle Switch Panel Mount On-Off-On SPDT Solder Terminal 30 V DC 125 V AC S308

Name: NKK Switches Toggle Switch Panel Mount On-Off-On SPDT Solder Terminal 30 V DC 125 V AC S308
Brand: NKK Switches
SKU: 195804
Price: 10.63 USD
Availability: InStock



Category Toggle Switch Brand NKK Switches Condition New

Specifications

Country of Origin	Japan
Brand	NKK Switches
Model	S308
Mount Type	Panel
Series	S
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	SPDT
Minimum Operating Temperature	-10°C
Panel Cutout Size	12.5 mm
Terminal type	Solder
Standards/Approvals	CSA Recognised
Switch Operation	On-Off-On
Actuator Length	17.5mm
Contact DC Voltage	30V dc
Switch Contact Current	15, 20A
Mechanical Life	50000Operations
Contact AC Voltage	125V ac
Actuator Material	Chrome Plated Brass

Key Features

Panel mount toggle switch with On-Off-On operation for versatile control applications.
SPDT contact configuration supports single pole double throw switching.
Solder terminal type for secure and durable electrical connections.
Operates safely at 30 V DC and 125 V AC voltage ratings.
Chrome plated brass actuator ensures durability and aesthetic finish.
Mechanical life rated for 50,000 operations ensuring long-term reliability.
Panel cutout size of 12.5 mm and actuator length of 17.5 mm for easy installation.
CSA recognized standard compliance assuring quality and safety.

Product Description

NKK Switches S308 Toggle Switch is a high-quality panel mount On-Off-On toggle switch with a SPDT contact configuration and solder termination. It is designed for medium to high capacity electrical switching applications requiring robust performance and reliable operation.

This toggle switch operates at 30 V DC and 125 V AC voltages, making it suitable for various industrial, automation, and electrical control applications. The chrome plated brass actuator provides excellent durability as well as resistance to corrosion and wear during extended use.

Installation is simplified with a panel cutout size of 12.5 mm and an actuator length of 17.5 mm. The device features a mechanical life expectancy rated at 50,000 operations, ensuring dependable performance over its lifespan. It is CSA recognized, reflecting adherence to relevant standards for safety and reliability.

The switch is intended for use in demanding operating environments, capable of withstanding temperatures from -10°C to 70°C. This flexibility expands its applicability in varied industrial, laboratory, and commercial electrical systems.

Panel mount toggle switch with On-Off-On operation for versatile control applications. SPDT contact configuration supports single pole double throw switching. Solder terminal type for secure and durable electrical connections.

Operates safely at 30 V DC and 125 V AC voltage ratings. Chrome plated brass actuator ensures durability and aesthetic finish. Mechanical life rated for 50,000 operations ensuring long-term reliability. Panel cutout size of 12.5 mm and actuator length of 17.5 mm for easy installation.

CSA recognized standard compliance assuring quality and safety. Operating temperature range from -10°C up to 70°C suitable for a variety of environments. This toggle switch is ideal for electrical, automation, industrial manufacturing, and HVAC control panel applications demanding reliable manual switching of mediums and signals.
