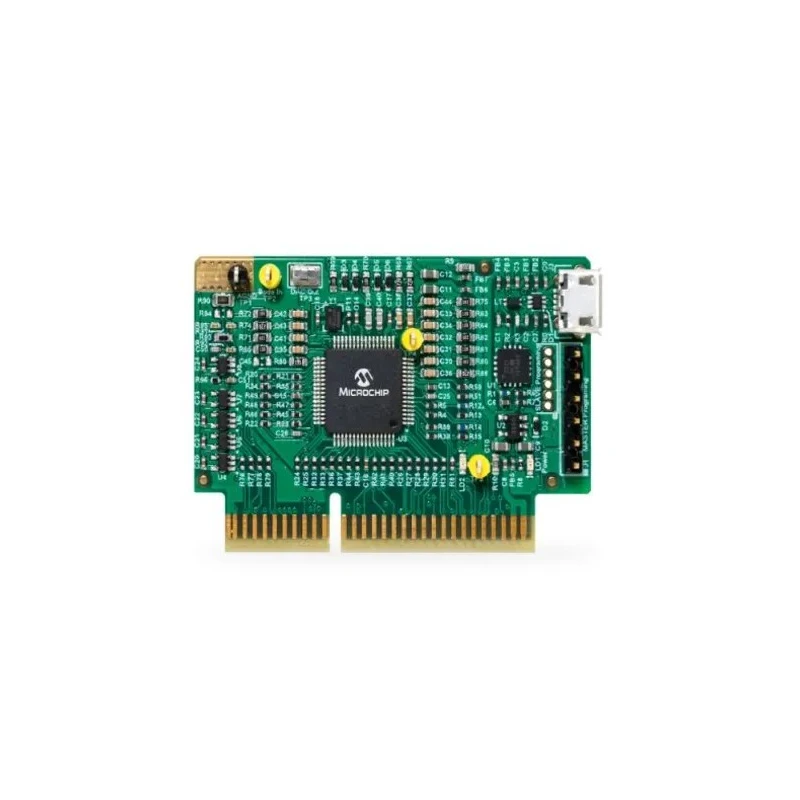

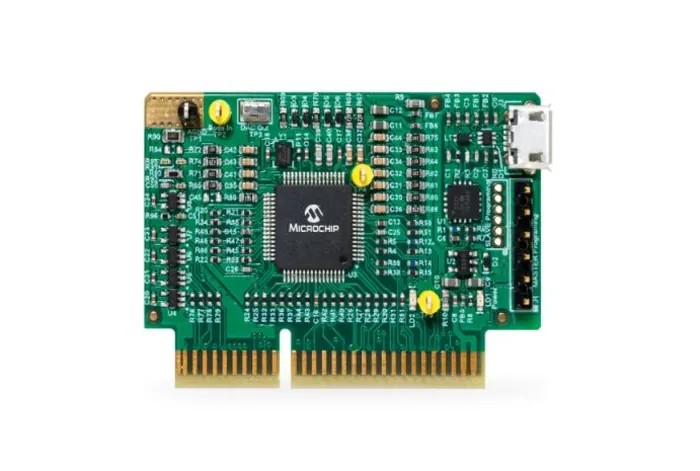

Microchip Digital Power PIM Power Module for dsPIC33CH512MP506 Digital Power Development Board MA330049
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MA330049 |
| Interfaces | USB connector |
| For Use With | Digital Power Development Board and Low Voltage PFC Development Board |
| Standards/Approvals | ISO |
| Kit Classification | Module |
| Featured Device | dsPIC33CH512MP506 |
| Kit Name | Digital Power PIM |
Key Features
- Integrates dsPIC33CH512MP506 dual-core digital signal controller for efficient power management.
- Includes on-board LDO with Power Good (PG) function for stable power supply.
- ICSP programming header allows programming and debugging of both cores through one interface.
- Equipped with Micro USB connector and MCP2221A USB to UART/I2C converter for versatile communication.
- Board edge connectors provide access to analog inputs, DAC output, PWM outputs, and GPIO ports.
- Test points enable monitoring of DAC output signals.
Product Description
Microchip MA330049 Digital Power PIM Power Module is a specialized plug-in module designed for use with Digital Power Development Boards and Low Voltage Power Factor Correction (PFC) development boards. It incorporates the dsPIC33CH512MP506 16-bit Digital Signal Controller, a dual-core DSC architecture aimed at enhancing digital power applications.
The module provides a comprehensive set of interfaces, including analog inputs, Digital-to-Analog Converter (DAC) outputs, Pulse-Width Modulation (PWM) signals, and General Purpose Input/Output (GPIO) ports through convenient board edge connectors. Both cores of the dsPIC33CH512MP506 can be programmed and debugged via a single ICSP™ interface simplifying development workflows.
Further communication flexibility is offered by the onboard MCP2221A USB to UART/I2C serial converter and a micro USB connector. An onboard low-dropout regulator (LDO) with Power Good indicator ensures reliable power supply conditions. Test points on the board facilitate easy signal monitoring, particularly of the DAC output, aiding developers in debugging and tuning their power applications.
This module is tailored for industrial and laboratory use cases involving digital power control, motor control, and power electronics research, providing a robust platform for developing and demonstrating power management solutions. It is compliant with ISO standards and is suitable for integration within advanced power management systems.
Integrates dsPIC33CH512MP506 dual-core DSC for powerful digital control. On-board LDO regulator with Power Good signal ensures stable operation. Single ICSP programming header supports both cores for streamlined debugging.
Micro USB and MCP2221A converter provide multiple communication interfaces. Accessible board edge connectors for analog and digital I/O expandability. Test points available for real-time DAC output monitoring. Explore Microchip products and digital Power Modules to enhance your development projects in power electronics, motor controls, and digital signal control applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip MA330049 power module is designed to enhance digital power applications by integrating the dsPIC33CH512MP506 dual-core digital signal controller for efficient power management.
This module is compatible with the Digital Power Development Board and Low Voltage Power Factor Correction (PFC) Development Board.
It features a Micro USB connector and an MCP2221A USB to UART/I2C serial converter for versatile communication options.
The dsPIC33CH512MP506 is a dual-core digital signal controller designed for powerful digital control, enhancing the module's capabilities in power management applications.
The onboard low-dropout regulator (LDO) ensures stable power supply conditions and includes a Power Good indicator for reliable operation.
The board edge connectors provide access to analog inputs, Digital-to-Analog Converter (DAC) outputs, Pulse-Width Modulation (PWM) signals, and General Purpose Input/Output (GPIO) ports.
The ICSP programming header allows for the programming and debugging of both cores of the dsPIC33CH512MP506 through a single interface, streamlining development workflows.
Yes, test points on the board facilitate easy monitoring of DAC output signals, aiding in debugging and tuning power applications.
This module is compliant with ISO standards, ensuring it meets certain quality and safety benchmarks.
The Microchip MA330049 power module is manufactured in India.
It is tailored for industrial and laboratory use cases involving digital power control, motor control, and power electronics research.
The kit classification for this product is a module, specifically identified as a Digital Power PIM.
