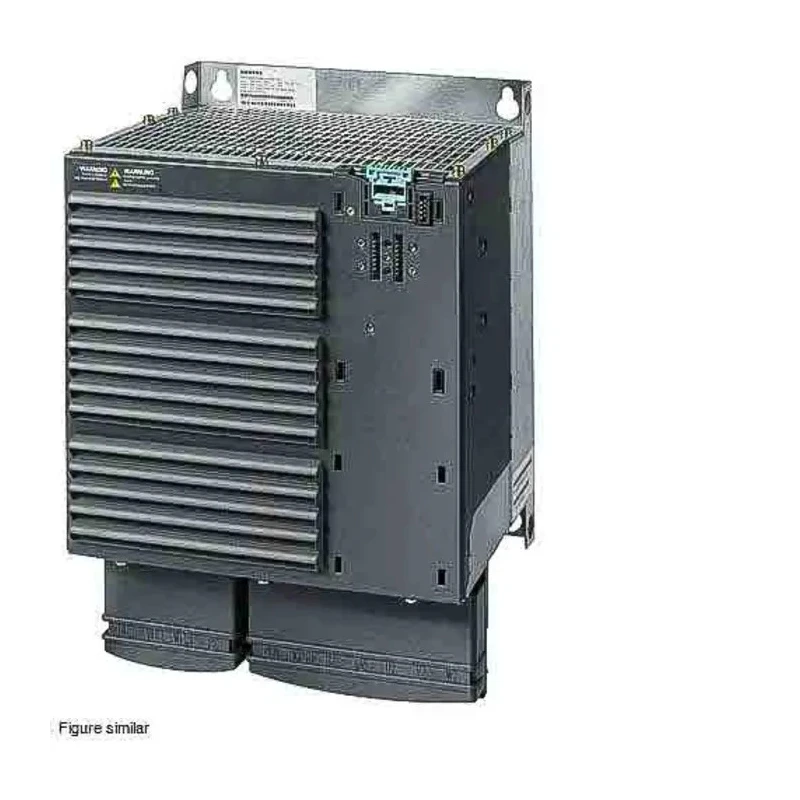

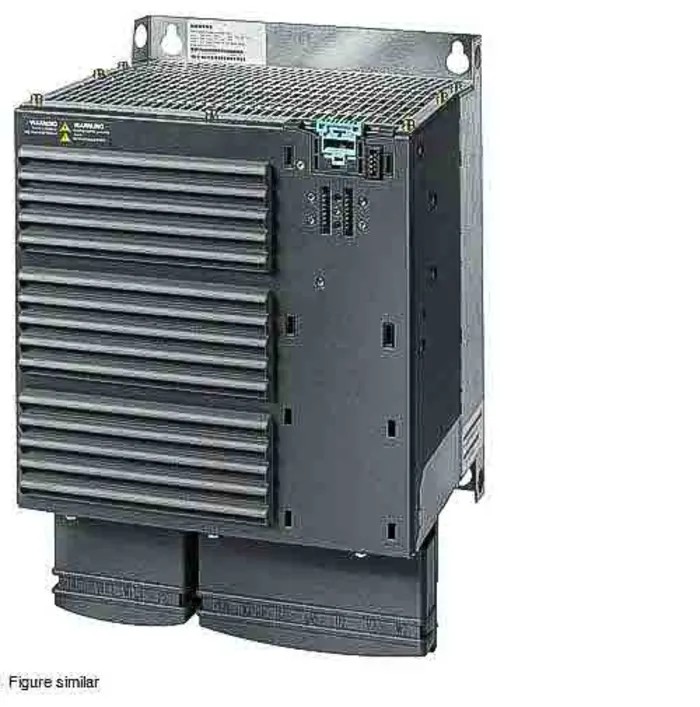

Siemens Power Module 15 kW 3 Phase SINAMICS G120 Series 480V 18A 6SL3225-0BE31-5AA0
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Model | 6SL3225-0BE31-5AA0 |
| IP Rating | IP20 |
| Drive Type | Vector Control |
| Mount Type | Panel |
| Overall Length | 275mm |
| Series | SINAMICS G120 |
| Overall Width | 204mm |
| Power Rating | 15kW |
| Maximum Operating Temperature | 40°C |
| Output Frequency | 200Hz |
| Minimum Operating Temperature | 0°C |
| Number of Phases | 3 |
| Maximum Output Current | 18A |
| Standards/Approvals | C-Tick (RCM), CE, UL, cUL |
| Maximum Supply Voltage | 480V |
| Overall Depth | 512mm |
| Minimum Supply Voltage | 380V |
| Compatible Motor Type | AC Motor |
Key Features
- Supports a wide input voltage range of 380V to 480V with +10/-10% tolerance.
- Built-in Class A EMI filter for enhanced electrical noise suppression.
- Operates efficiently between 0°C to 40°C with an overload capacity of up to 18.5 kW under light load conditions.
- Compact size with panel mount type, dimensions measuring 512 x 275 x 204 mm (Depth x Length x Width).
- Features vector control drive type with AC motor compatibility for precise output frequency up to 200 Hz.
- IP20 rated enclosure providing basic protection against solids and no protection against liquids.
- Engineered and manufactured in Germany ensuring high quality and compliance with CE, UL, cUL, and C-Tick (RCM) standards.
Product Description
The Siemens 6SL3225-0BE31-5AA0 Power Module is a high-performance 15 kW module designed for industrial automation and electric motor drive applications. This 3-phase power module is part of the SINAMICS G120 series, widely known for robust and efficient inverter drives. Operating at a nominal supply voltage between 380V and 480V with a flexible tolerance of +10/-10%, it supports vector control drive types suitable for AC motors.
This power module incorporates a Class A built-in EMI filter that reduces electrical noise and enhances drive performance. It features an overload capacity that can handle up to 15 kW for short periods (200% overload for 3 seconds) and a light overload capacity of 18.5 kW for 3 seconds under specific ambient conditions.
Designed for panel mounting, the power module measures 512 mm in depth, 275 mm in length, and 204 mm in width, making it suitable for compact integration in control panels while maintaining optimal cooling and accessibility.
The device is built to operate in ambient temperatures ranging from 0°C to 40°C, catering to demanding industrial environments with an output frequency capability up to 200 Hz, allowing flexible motor speed control. The IP20 rating offers protection against solid objects to prevent contact with live parts.
This power module is manufactured in Germany, adhering to international standards including CE, UL, cUL, and C-Tick (RCM) certifications, ensuring safety and reliability. It is ideal for applications in electrical automation, manufacturing plants, and industrial motor control setups requiring precise and efficient power management.
Supports a wide input voltage range of 380V to 480V with +10/-10% tolerance. Built-in Class A EMI filter for enhanced electrical noise suppression. Operates efficiently between 0°C to 40°C with an overload capacity of up to 18.5 kW under light load conditions.
Compact size with panel mount type, dimensions measuring 512 x 275 x 204 mm (Depth x Length x Width). Features vector control drive type with AC motor compatibility for precise output frequency up to 200 Hz. IP20 rated enclosure providing basic protection against solids and no protection against liquids.
Engineered and manufactured in Germany ensuring high quality and compliance with CE, UL, cUL, and C-Tick (RCM) standards. Explore the range of Siemens Power Modules on EnvMart for reliable and efficient automation solutions tailored to meet industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 15 kW.
It supports a wide input voltage range of 380V to 480V with a tolerance of +10/-10%.
This unit features a vector control drive type, which is compatible with AC motors.
The maximum output current for this model is 18A.
It operates efficiently between 0°C to 40°C.
The dimensions are 512 mm in depth, 275 mm in length, and 204 mm in width.
It has an output frequency capability of up to 200 Hz.
The power module has an IP20 rating, providing basic protection against solid objects.
This model is engineered and manufactured in Germany.
It complies with CE, UL, cUL, and C-Tick (RCM) standards.
It is designed for panel mounting.
It has an overload capacity of up to 18.5 kW under light load conditions for short periods.
