NKK Switches Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 12V dc 125V ac G-12CHR

Free Delivery in India | Lowest Global Shipping Charges

NKK Switches Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 12V dc 125V ac G-12CHR

Name: NKK Switches Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 12V dc 125V ac G-12CHR
Brand: NKK Switches
SKU: 187083
Price: 5.3 USD
Availability: InStock



Category Toggle Switch Brand NKK Switches Condition New

Specifications

Country of Origin	Japan
Brand	NKK Switches
Height	23.7mm
Length	32.4mm
Model	G-12CHR
IP Rating	IP68S
Width	12.45mm
Mount Type	PCB
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-25°C
Terminal type	Through Hole
Standards/Approvals	UL, CSA, CE, RoHS
Switch Operation	On-On
Actuator Length	3.8mm
Contact DC Voltage	12V dc
Switch Contact Current	100mA
Mechanical Life	100000Operations
Contact AC Voltage	125V ac
Actuator Material	Polyamide

Key Features

Toggle switch designed for PCB mounting with through hole terminals.
SPDT contact configuration with On-On switch operation.
Rated for 12 V DC and 125 V AC contact voltages.
Epoxy sealed terminals and sealed body construction ensuring IP68S rating.
Polyamide actuator material with 3.8 mm actuator length.
Mechanical life of 100,000 operations ensuring durability.
Operates reliably from -25°C to +55°C.
Compliant with UL, CSA, CE, and RoHS standards.

Product Description

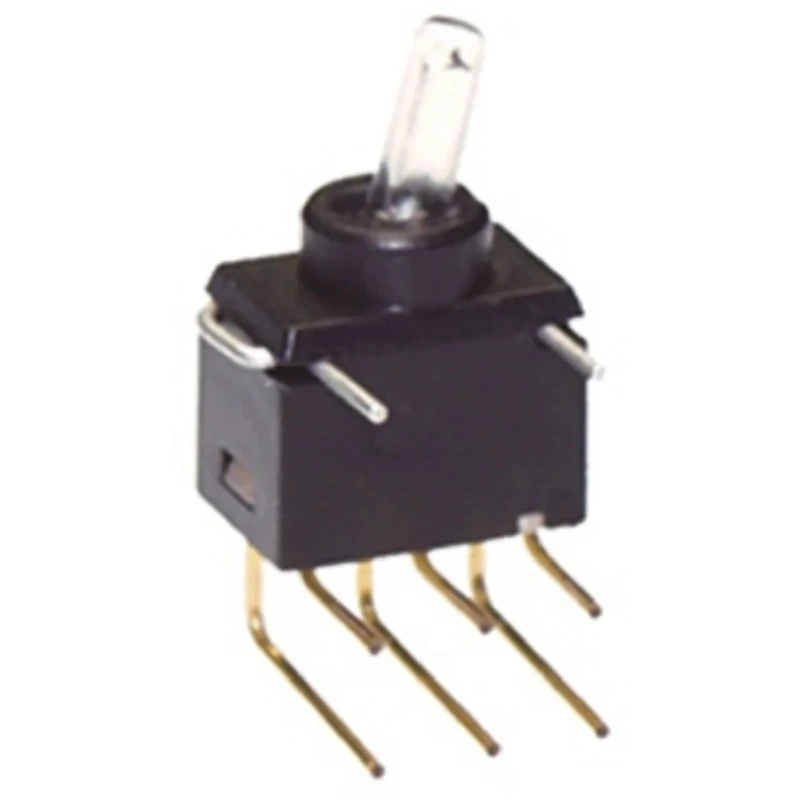

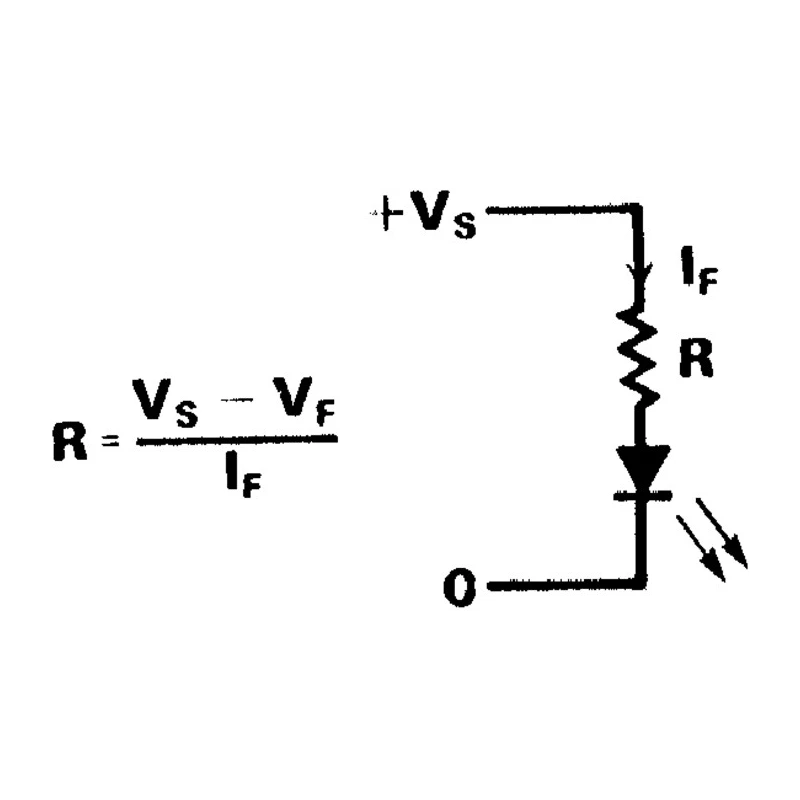

NKK Switches G-12CHR Toggle Switch PCB Mount On-On SPDT is a high-quality miniature toggle switch designed for PCB mounting applications. This fully illuminated switch features a unique sliding twin crossbar contact mechanism which provides high contact reliability even at low voltages and currents.

The switch operates in an On-On configuration with SPDT contact type, suitable for controlling circuits requiring alternate switching between two output states. It supports contact voltages up to 12 V DC and 125 V AC with a contact current rating of 100 mA.

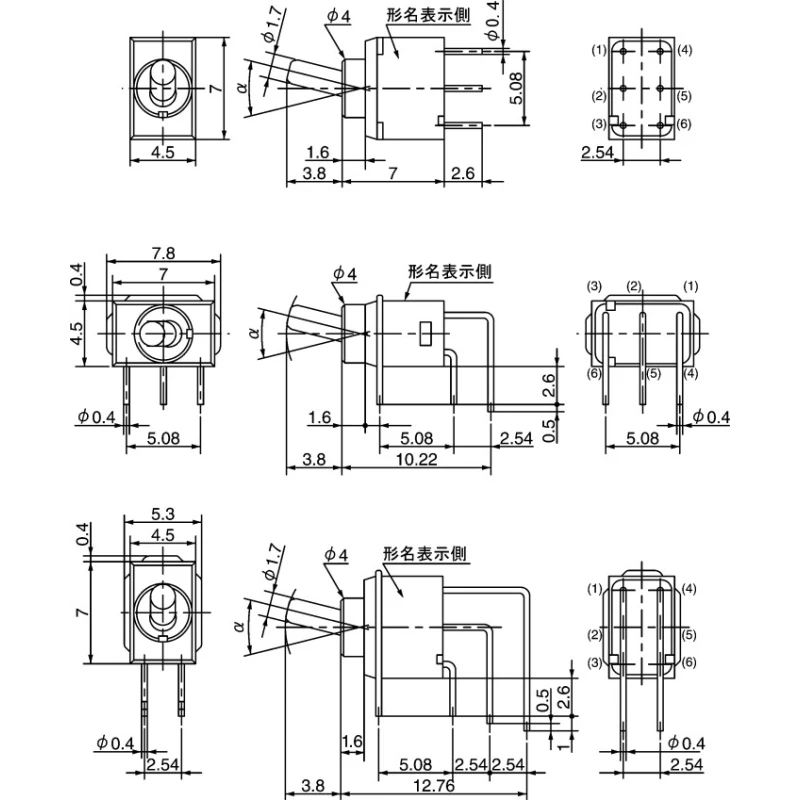

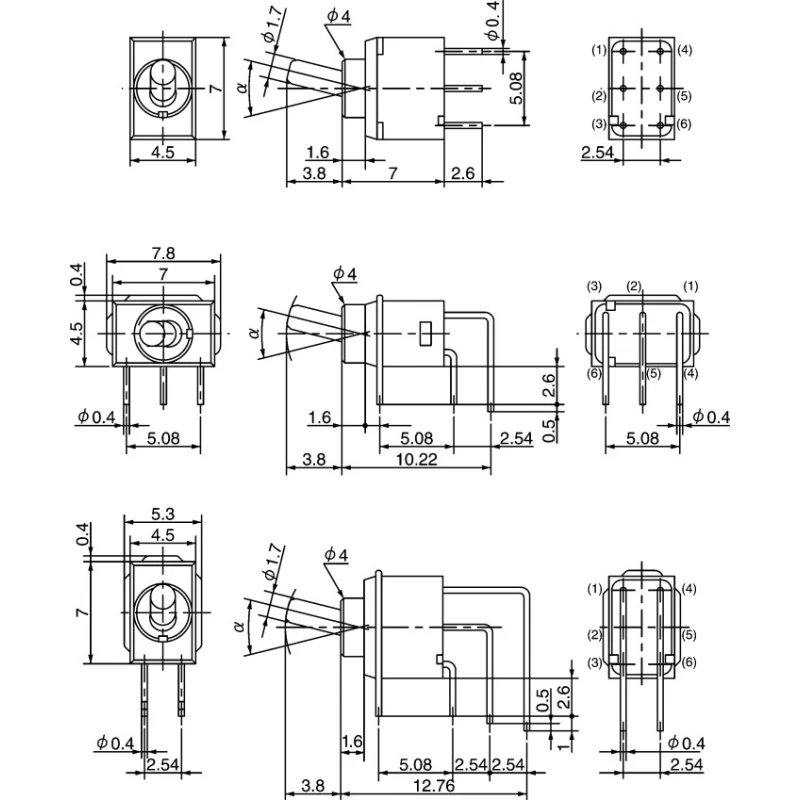

Its epoxy-sealed terminals and fully sealed body construction give it an IP68S ingress protection rating, making it resistant to contaminants such as dust, solvents, and flux. The actuator is made of durable polyamide with a length of 3.8 mm, offering smooth and reliable operation. The compact physical size of this toggle switch (32.4 mm length, 23.7 mm height, and 12.45 mm width) allows easy integration into tight PCB layouts with standard 2.54 x 2.54 mm terminal spacing.

Engineered for extended service life, the G-12CHR model is rated for a mechanical life of 100,000 operations and can function in environments between -25°C and 55°C. It meets important safety and environmental standards including UL, CSA, CE, and RoHS compliance. Manufactured in Japan, this toggle switch is ideal for industrial, laboratory, automation, and electronic device applications where durability and reliability are paramount.

Toggle Switch designed for PCB mounting with through hole terminals. SPDT contact configuration with On-On switch operation. Rated for 12 V DC and 125 V AC contact voltages. Epoxy sealed terminals and sealed body construction ensuring IP68S rating.

Polyamide actuator material with 3.8 mm actuator length. Mechanical life of 100,000 operations ensuring durability. Compact dimensions: 32.4 mm length, 23.7 mm height, and 12.45 mm width. Operates reliably from -25°C to +55°C.

Compliant with UL, CSA, CE, and RoHS standards. Manufactured in Japan for superior quality assurance. Explore the range of electronic switches at EnvMart for reliable components compatible with various industrial and automation systems.
