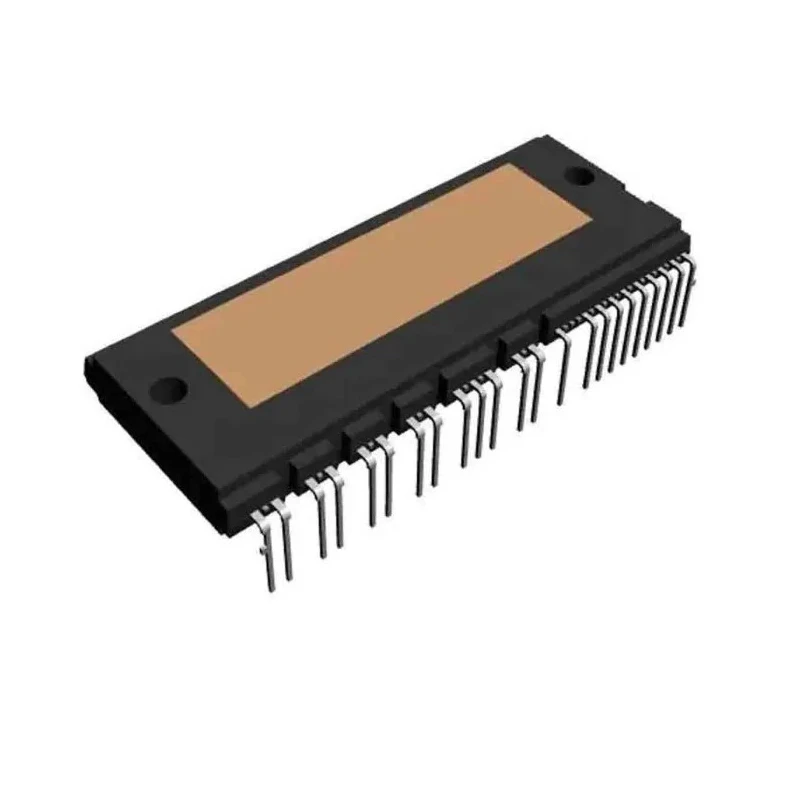

onsemi Type N-Channel Smart Power Module 50 A 650 V 30-Pin SPM49-CAB Through Hole NFAL5065L4BT
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 8.8mm |
| Length | 79.2mm |
| Model | NFAL5065L4BT |
| Width | 31.2mm |
| Mount Type | Through Hole |
| Series | SPM |
| Maximum Operating Temperature | 150°C |
| Package Type | SPM49-CAB |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 30 |
| Maximum Continuous Collector Current Ic | 50A |
| Maximum Collector Emitter Voltage Vceo | 650V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.05V |
| Channel Type | Type N |
| Maximum Power Dissipation Pd | 192W |
| Maximum Gate Emitter Voltage VGEO | 15 V |
Key Features
- This smart power module supports high-performance inverter stages for AC induction, BLDC, and PMSM motors.
- Integrated optimized gate drive minimizes EMI and power losses.
- Features on-module protection mechanisms for enhanced reliability.
- Includes built-in high-speed HVIC and NTC thermistor for temperature monitoring.
- Operating temperature range from -40°C up to 150°C ensuring robust performance.
- Compact dimensions with length 79.2 mm, width 31.2 mm, and height 8.8 mm.
- Package type SPM49-CAB with through-hole mounting for easy PCB integration.
- Maximum gate emitter voltage rating is 15 V maintaining safe operation.
Product Description
onsemi NFAL5065L4BT is a Type N-Channel Smart Power Module rated for a maximum continuous collector current of 50 A and a collector-emitter voltage of 650 V. It comes in a 30-pin SPM49-CAB package suitable for through-hole mounting on printed circuit boards.
This module integrates optimized gate drive circuitry for the built-in IGBTs to reduce electromagnetic interference and power losses, thus improving overall inverter efficiency. It provides a fully-featured, high-performance output stage suited for AC induction motors, brushless DC motors (BLDC), and permanent magnet synchronous motors (PMSM).
The embedded high-speed HVIC and built-in NTC thermistor facilitate precise temperature monitoring and management, enhancing device reliability and longevity in demanding industrial environments. Designed to operate between -40°C and 150°C, this power module offers robust performance under wide temperature ranges.
With compact dimensions measuring 79.2 mm in length, 31.2 mm in width, and 8.8 mm in height, the NFAL5065L4BT fits efficiently in power electronics assemblies. Its specifications include a maximum gate emitter voltage of 15 V and a maximum collector emitter saturation voltage of 2.05 V, which help maintain the module’s efficiency and safe operation.
The NFAL5065L4BT module complies with RoHS standards but is not designed specifically to automotive standards. Its through-hole mounting design eases integration into industrial PCBs and power modules for semiconductor and power control applications.
This smart power module supports high-performance inverter stages for AC induction, BLDC, and PMSM motors. Integrated optimized gate drive minimizes EMI and power losses. Features on-module protection mechanisms for enhanced reliability.
Includes built-in high-speed HVIC and NTC thermistor for temperature monitoring. Operating temperature range from -40°C up to 150°C ensuring robust performance. Compact dimensions with length 79.2 mm, width 31.2 mm, and height 8.8 mm.
Package type SPM49-CAB with through-hole mounting for easy PCB integration. Maximum gate emitter voltage rating is 15 V maintaining safe operation. Maximum collector emitter saturation voltage is 2.05 V enhancing efficiency.
Designed for industrial and semiconductor applications requiring smart power control.
Ideal for industrial electronics, motor drive control, power inverter designs, and semiconductor manufacturing applications. Explore EnvMart for more onsemi Power Modules and smart power devices suitable for your electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NFAL5065L4BT has a maximum continuous collector current rating of 50 A.
This model operates within a temperature range of -40°C to 150°C.
The maximum collector-emitter voltage rating for this module is 650 V.
The dimensions of this power module are 79.2 mm in length, 31.2 mm in width, and 8.8 mm in height.
It features a through-hole mounting design, making it suitable for easy integration into printed circuit boards.
The maximum gate emitter voltage rating for this module is 15 V.
The NFAL5065L4BT comes in an SPM49-CAB package type.
The maximum collector-emitter saturation voltage is 2.05 V, which helps maintain the module's efficiency.
Yes, it includes on-module protection mechanisms to enhance reliability.
This smart power module supports high-performance inverter stages for AC induction, BLDC, and PMSM motors.
This module complies with RoHS standards.
It includes a built-in high-speed HVIC and an NTC thermistor for temperature monitoring.
