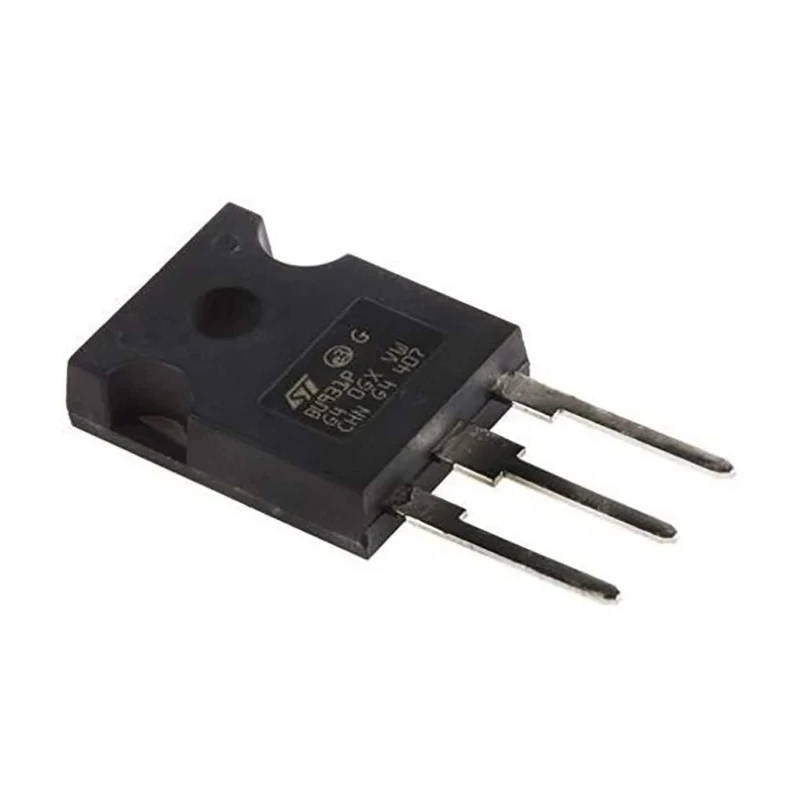

STMicroelectronics N-Channel Silicon Carbide Power Module, 16 A, 1200 V Depletion Mode, 3-Pin Hip-247 Package SCT20N120AG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.8mm |
| Length | 10.4mm |
| Model | SCT20N120AG |
| Mount Type | Through Hole |
| Series | SCT |
| Maximum Operating Temperature | 200°C |
| Package Type | Hip-247 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 16A |
| Maximum Drain Source Voltage Vds | 1200V |
| Maximum Drain Source Resistance Rds | 0.52Ω |
| Channel Mode | Depletion |
| Maximum Power Dissipation Pd | 153W |
| Typical Gate Charge Qg @ Vgs | 45nC |
| Forward Voltage Vf | 3.6V |
Key Features
- Rated for a maximum continuous drain current of 16 A at 1200 V voltage.
- Features a depletion mode channel with low drain-source resistance of 0.52 ohms.
- Equipped with a 3-pin Hip-247 through-hole package for reliable mounting.
- Supports high power dissipation up to 153 W suitable for demanding environments.
- Operates efficiently within a temperature range from -55°C to 200°C.
- Includes a typical gate charge of 45 nC at gate-source voltage for fast switching.
- Incorporates a forward voltage of 3.6 V ensuring minimal energy loss.
- Compliant with automotive standard AEC-Q101 for quality and reliability.
Product Description
STMicroelectronics SCT20N120AG N-Channel Silicon Carbide Power Module delivers advanced performance for industrial, automotive, and power electronics applications requiring high voltage and current capabilities. Its silicon carbide technology offers enhanced thermal performance and durability, making it suitable for applications demanding high operating temperatures up to 200°C.
This power module features a low on-resistance channel mode (depletion mode) and a drain-source resistance of 0.52 Ω, combined with a typical gate charge of 45 nC to ensure efficient switching and reduced power losses. Its 3-pin Hip-247 package supports through-hole mounting techniques, providing secure and stable installation.
The device supports a maximum continuous drain current of 16 A at 1200 V drain-source voltage, capable of handling power dissipation of 153 W. Designed with automotive-grade standards including AEC-Q101 certification, it guarantees reliable operation under harsh industrial environments.
Additional benefits include a fast intrinsic body diode and low capacitance, optimizing it for power conversion, motor drives, and high-frequency switching applications. This power module fits well into power management systems in sectors such as manufacturing, automotive electronics, renewable energy inverters, and heavy machinery controls.
Rated for 16 A continuous drain current and 1200 V voltage for robust application needs. Low on-resistance and depletion mode channel optimize efficiency and thermal management. Automotive standard compliance guarantees ruggedness and reliability.
Supports operating temperature range between -55°C and 200°C for versatile deployments. Through-hole 3-pin Hip-247 package ensures secure mechanical and electrical connections.
Choose the STMicroelectronics SCT20N120AG for reliable, high-performance silicon carbide power modules within your electronic industrial and automotive systems. Explore EnvMart's Electronics & Electricals category for compatible Power Modules and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 16 A.
This power module has a maximum drain-source voltage rating of 1200 V.
It operates efficiently within a temperature range of -55°C to 200°C.
This model is equipped with a 3-pin Hip-247 through-hole package.
The drain-source resistance is specified at 0.52 Ω.
It has a typical gate charge of 45 nC at gate-source voltage.
The SCT20N120AG is compliant with the automotive standard AEC-Q101.
It supports a maximum power dissipation of 153 W.
This power module features a depletion mode channel.
The dimensions of this module are 15.8 mm in height and 10.4 mm in length.
It is suitable for industrial, automotive, and power electronics applications requiring high voltage and current capabilities.
Its low on-resistance and fast intrinsic body diode optimize efficiency and reduce power losses in power conversion applications.
