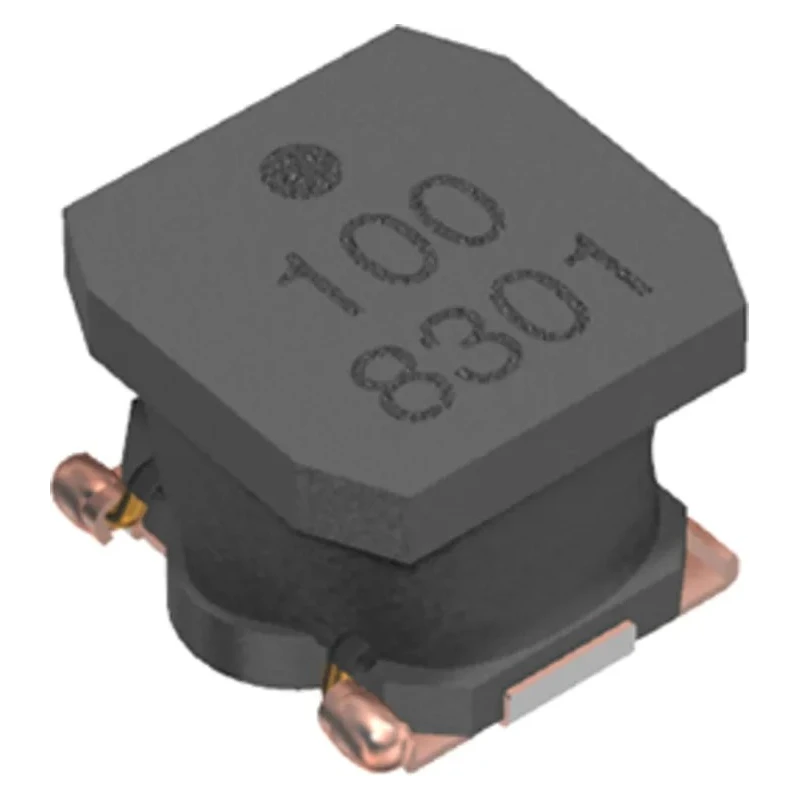

TDK Shielded Wirewound Surface Mount Inductor 6045 Case, Ferrite Core, 100 μH ±20% Inductance, 1.1 A VLS6045EX-101M-H
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | TDK |
| Height | 4.5mm |
| Length | 6mm |
| Model | VLS6045EX-101M-H |
| Depth | 6.3mm |
| Packaging | Tape & Reel |
| Series | VLS-EX-H |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 6045 |
| Maximum DC Current | 1.1A |
| Maximum DC Resistance | 611mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a ferrite core for enhanced magnetic performance.
- Constructed with a magnetic shield to reduce electromagnetic interference.
- Complies with automotive standard AEC-Q200 for reliability.
- Packaged in a 6045 case with tape and reel suitable for automated assembly.
- Operates reliably between -40°C and 125°C ambient temperatures.
- Maximum DC resistance is 611 mΩ ensuring efficient current flow.
- Designed for surface mount termination style enabling compact PCB layouts.
- Optimized for high current applications with reduced Rdc for lower losses.
Product Description
TDK VLS6045EX-101M-H is a shielded wirewound surface mount inductor featuring a ferrite core and magnetic shield construction. This 6045 case size inductor offers 100 μH inductance with ±20% tolerance and is rated for a maximum DC current of 1.1 A, making it suitable for various power circuit applications requiring compact high-current inductors.
The ferrite core enables high magnetic shielding effectiveness, minimizing electromagnetic interference in densely packed electronic assemblies. Its robust design complies with the automotive AEC-Q200 standard assuring dependable performance in automotive and industrial environments.
Packaged on tape and reel, the inductor supports automated pick-and-place assembly processes. It operates over a wide temperature range from -40°C to 125°C, suitable for harsh environments.
The maximum DC resistance of 611 mΩ ensures efficient current handling with minimal losses. The surface mount termination style promotes space-saving layouts on PCBs for modern electronic equipment.
Features a ferrite core for enhanced magnetic performance. Constructed with a magnetic shield to reduce electromagnetic interference. Complies with automotive standard AEC-Q200 for reliability. Packaged in a 6045 case with tape and reel suitable for automated assembly.
Operates reliably between -40°C and 125°C ambient temperatures. Maximum DC resistance is 611 mΩ ensuring efficient current flow. Designed for surface mount termination style enabling compact PCB layouts. Optimized for high current applications with reduced Rdc for lower losses.
This inductor is ideal for industrial, automotive, telecommunications, and consumer electronic applications requiring stable inductance and high reliability under demanding conditions. Explore a wide array of Surface Mount Inductors at EnvMart for your next design project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDK VLS6045EX-101M-H has an inductance value of 100 μH with a tolerance of ±20%.
This inductor is rated for a maximum DC current of 1.1 A, making it suitable for high current applications.
The dimensions of the TDK VLS6045EX-101M-H are 6 mm in length, 6.3 mm in depth, and 4.5 mm in height.
It operates reliably in ambient temperatures ranging from -40°C to 125°C.
This model features a ferrite core, which enhances its magnetic performance and reduces electromagnetic interference.
It is packaged in tape and reel format, which is suitable for automated pick-and-place assembly processes.
The maximum DC resistance is 611 mΩ, ensuring efficient current flow with minimal losses.
Yes, it complies with the automotive standard AEC-Q200, ensuring reliability in automotive applications.
The termination style is surface mount, which allows for compact PCB layouts.
This model complies with RoHS standards, ensuring it meets environmental regulations.
It is suitable for industrial, automotive, telecommunications, and consumer electronic applications requiring stable inductance and high reliability.
This inductor is part of the VLS-EX-H series from TDK.
