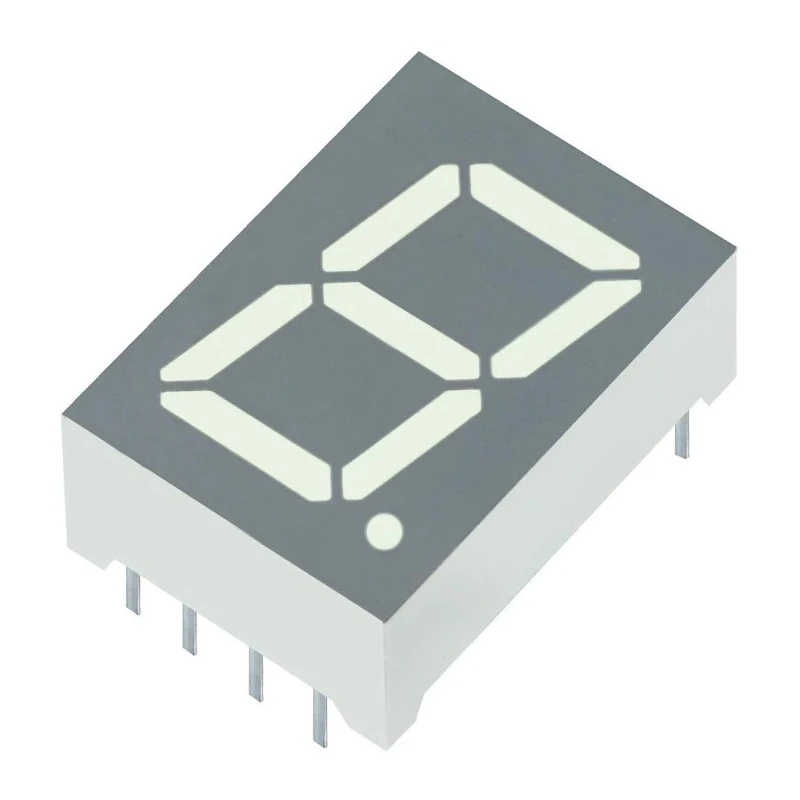

Kingbright 1 Digit 7 Segment Red LED Display Anode 2.5V 11mcd 13.2 mm Height SA52-11SURKWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SA52-11SURKWA |
| Mount Type | Through Hole |
| Series | SA52 |
| Character height | 13.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 17.5mm |
| External Depth | 12.4mm |
| External Height | 7mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 11mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2.5V |
| Forward Current | 185mA |
| Number of Characters | 1 |
| Character Width | 7.6mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- This 7 segment LED display operates with a forward voltage of 2.5 volts.
- It offers a luminous intensity of 11 millicandela for high visibility.
- Character width measures 7.6 mm, with a grey face and white segments for clear reading.
- Designed for through-hole mounting, suitable for easy PCB installation.
- Rated for forward current of 185mA and power dissipation up to 75mW.
- Operates reliably within a temperature range of -40°C to 85°C.
- Decimal orientation is right side, making it suitable for specific display arrangements.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Kingbright SA52-11SURKWA is a high-quality 7 segment LED display designed for electronic applications requiring single digit numeric display. This red anode type display delivers a luminous intensity of 11mcd with a dominant wavelength of 630nm, ensuring excellent visibility and contrast. The character height of 13.2 mm and width of 7.6 mm provide clear and legible readouts for various digital displays.
The display employs a through-hole mount type for secure installation on printed circuit boards, supporting industrial and commercial electronic device manufacturing. Its grey face and white segments enhance visual clarity and ease of reading. The display operates at a forward voltage of 2.5 volts with a forward current rating of 185mA, suitable for low current consumption designs.
Designed to withstand industrial environments, it supports a wide operating temperature range from -40°C to 85°C. Power dissipation is rated at 75mW, maintaining efficient energy consumption. The right side decimal orientation facilitates tailored display configurations.
Kingbright SA52-11SURKWA adheres to RoHS compliance, ensuring it meets environmental and safety regulations. Its robust construction provides mechanical ruggedness for reliable, long-lasting performance in manufacturing, industrial instrumentation, consumer electronics, laboratory equipment, and automotive applications.
This model features a single digit 7 segment LED configuration with red color segments. Mounting is through-hole type which provides easy PCB assembly. The display is compliant with RoHS environmental standards. Luminous intensity of 11mcd supports clear numeric indication.
Operating temperature ranges from -40°C to 85°C for versatile applications. Compact external dimensions of 17.5 mm by 7 mm by 12.4 mm. Forward voltage of 2.5 volts and forward current of 185mA. Grey face with white segments for optimal contrast and appearance.
Suitable for industrial, laboratory, consumer electronics, and automotive use cases. Explore EnvMart's extensive selection of LED Displays for enhanced digital readout solutions and industrial electronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this 7 segment LED display is 2.5 volts.
This model has a luminous intensity of 11 millicandela, ensuring high visibility.
The character height of this LED display is 13.2 mm.
It operates reliably within a temperature range of -40°C to 85°C.
This LED display employs a through-hole mounting type for secure installation on printed circuit boards.
The power dissipation for this model is rated at 75mW.
The character width measures 7.6 mm.
The external dimensions are 17.5 mm in width, 12.4 mm in depth, and 7 mm in height.
The dominant wavelength of the red segments is 630 nm.
This model features a common anode connection.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety regulations.
This model is suitable for various applications including industrial instrumentation, consumer electronics, and automotive use cases.
