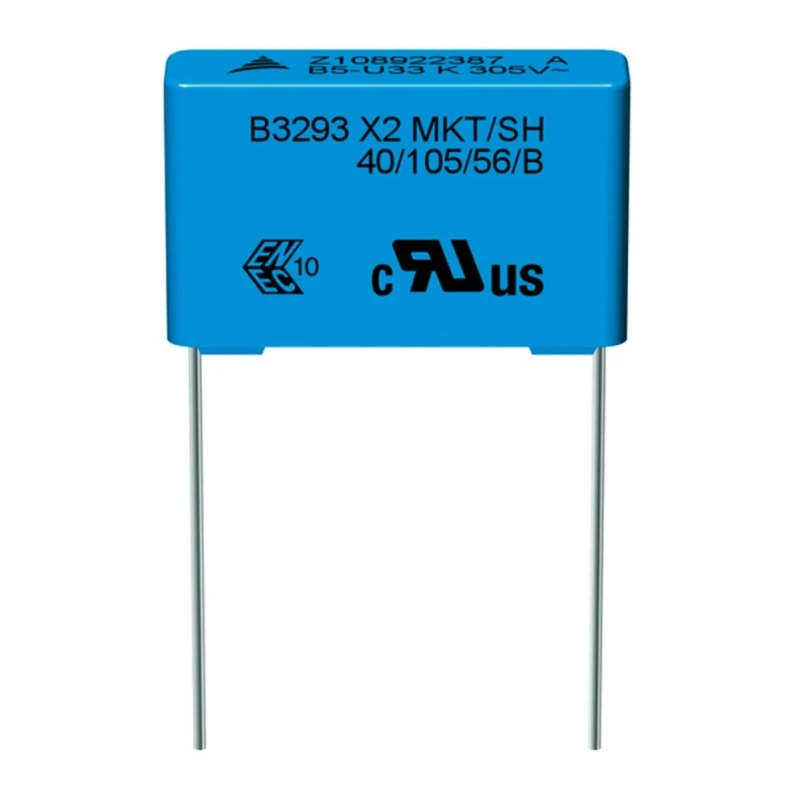

TDK B3293 Series Metallised Polyester Film Capacitor 330 nF 305V AC 305 V DC Through Hole 2 Pin B32932A3334K000

TDK B32932A3334K000 is a Film Capacitor from the B3293 series, featuring metallised polyester film technology that provides stable capacitance of 330 nF for electronic circuit applications. This capacitor supports a rated AC voltage of 305 V as well as a rated DC voltage of 305 V, which makes it suitable for use in both AC and DC power circuits.

The capacitor is designed with a through hole mount type, offering reliable mechanical and electrical connection with a 2-pin lead pitch spacing of 15 mm and lead diameter of 0.8 mm. Its plastic case is epoxy resin sealed and complies with UL 94 V-0 flame retardant standards, ensuring safety and durability under demanding electrical conditions.

Operating at temperatures up to 105°C, it is suited for use in harsh ambient environments and automotive-grade applications certified by the AEC-Q200 Rev D standard. The component holds X2 suppression class approval, indicating its applicability for capacitive power supply circuits and noise suppression running in series with mains power.

Physical dimensions are compact with a length of 18 mm, width of 9 mm, and height of 17.5 mm. The product is RoHS compliant, indicating environmental friendliness, and has UL approval for quality assurance.

Typical industrial uses include integration within power supplies, energy meters, and suppression circuits in automotive and industrial electronic equipment. The B3293 series capacitors provide enhanced stability and flame retardant properties for safety critical and long-life applications in electronic devices.

Provides stable capacitance with metallised polyester film construction. Class X2 safety rated capacitor suitable for suppression applications. Complies with automotive standard AEC-Q200 Rev D for reliability. Epoxy resin sealed plastic case with UL 94 V-0 flame retardant rating.

Maximum operating temperature is 105°C ensuring tolerance to high ambient conditions. Lead pitch is 15 mm with 0.8 mm lead diameter ensuring secure PCB mounting. Dimensions include length 18 mm, width 9 mm, and height 17.5 mm.

Approved under UL and RoHS standards ensuring quality and environmental compliance. Explore more capacitors and electronic components from TDK and other leading brands at EnvMart for your industrial, automotive, and electronic design projects.
