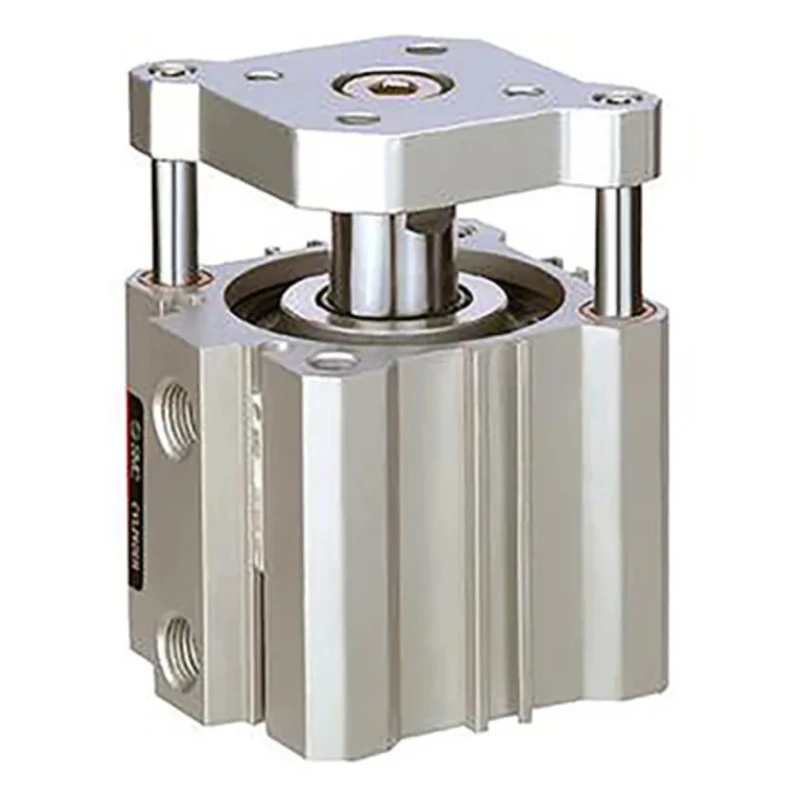

SMC Pneumatic Guided Cylinder Bore 16mm, Stroke 20mm, Aluminium Alloy Body, Rubber Bumper Cushioning CQMB16-20
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Height | 29mm |
| Length | 46.5mm |
| Model | CQMB16-20 |
| Gross Weight | 87g |
| Width | 29mm |
| Mount Type | Through Hole, Both Ends Tapped |
| Series | CQM |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 20mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Cushioning Type | Rubber Bumper |
| Guide Type | Slide Bearing |
Key Features
- Constructed with an aluminium alloy body for durability and corrosion resistance.
- Equipped with a rubber bumper cushioning type for smooth stroke termination.
- Mount type includes through hole and both ends tapped for flexible installation.
- Operable within temperatures ranging from -10°C to 70°C.
- Maximum operating pressure of 1 Mpa ensures reliable pneumatic force.
- Slide bearing guide type provides smooth linear motion and enhanced stability.
- Designed for a maximum piston speed of 500 mm/s to accommodate fast operations.
- Compact dimensions with length 46.5 mm, height 29 mm, and width 29 mm enable easy integration.
Product Description
SMC CQMB16-20 Pneumatic Guided Cylinder is a compact, high precision pneumatic actuator designed for industrial applications requiring reliable linear motion with guidance. Featuring a 16mm bore and 20mm stroke, this cylinder utilizes an aluminium alloy body combined with rubber bumper cushioning to protect the assembly and enable smooth operation.
The CQMB series is an advancement of the CQ2 series, incorporating refined mounting grooves that allow installation of auto switches on any of the four sides, offering versatile sensor placement and improved operational safety. Through hole mounting and tapped ends enhance installation flexibility across various setups.
Operating parameters include a maximum pressure of 1 Mpa and a piston speed limit of 500 mm/s. The slide bearing guide type ensures steady and precise linear movement, essential for automation and control systems in manufacturing, laboratory, robotic, and pneumatic tooling environments.
The compact form factor with dimensions of 46.5 mm length, 29 mm width, 29 mm height, and a weight of 87 grams makes it suitable for applications where space and weight constraints are critical.
Constructed with aluminium alloy body providing strength and corrosion resistance. Rubber bumper cushioning reduces vibration and impact force at stroke ends. Through hole and both ends tapped mounting configurations allow flexible fixing options.
Wide operating temperature range from -10°C to 70°C supports varied industrial conditions. Maximum operating pressure of 1 Mpa for dependable pneumatic control. Slide bearing guide ensures precise and smooth guided motion.
Compact size and low weight for easy integration in automated systems. Mounting grooves designed for safe and versatile auto switch installation. Manufactured in Japan, ensuring quality and performance standards.
This Pneumatic Guided Cylinder is ideal for industrial applications including mechanical machinery, automation components, pneumatic tooling, and fluid power systems. Its design caters to industries requiring high precision actuation combined with guided stability such as robotics, manufacturing automation, and process control equipment.
Explore our extensive range of pneumatic components and cylinders to find the perfect match for your industrial pneumatic automation needs at EnvMart.
