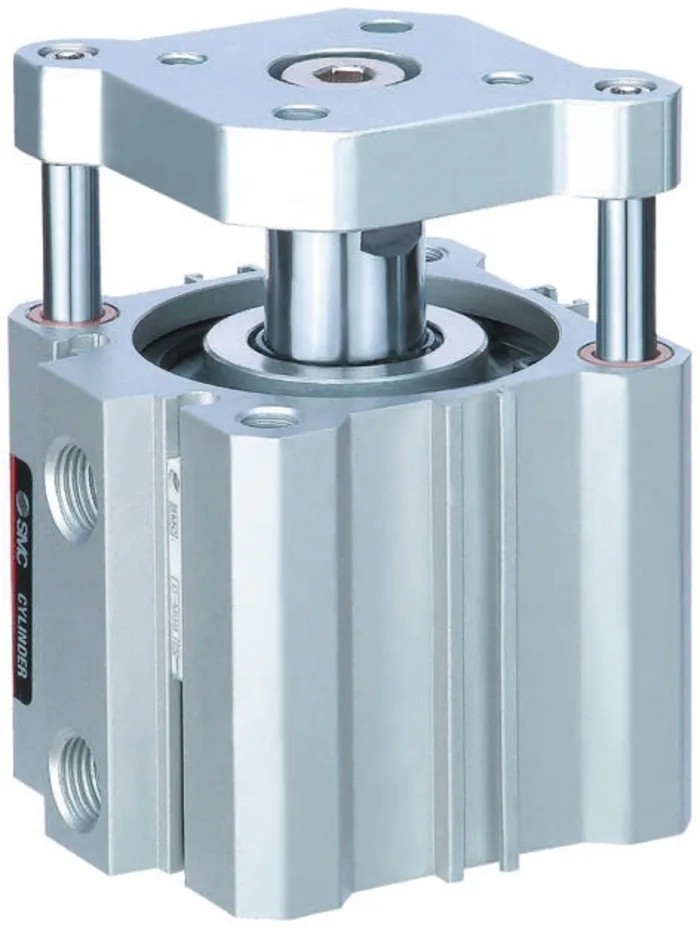

SMC Pneumatic Guided Cylinder 20mm Bore CQM Series 15mm Stroke Double Acting Through Hole Aluminium Alloy CDQMB20-15

SMC CDQMB20-15 Pneumatic Guided Cylinder is a high-precision linear actuator engineered for demanding automation and pneumatic applications. This model features a 20mm bore and a 15mm stroke, making it suitable for compact and high-load scenarios within the broader CQM Series. The double acting design allows reciprocal motion with consistent force output, while the robust through hole mount ensures easy installation in industrial settings.

Built with a hard anodized aluminium alloy body, the cylinder provides excellent durability and resistance to corrosion, making it ideal for continuous use in operational environments. The slide bearing guide type enhances lateral load resistance, delivering performance two to four times greater than standard SMC CQ cylinders. The single rod configuration and rubber cushioning type minimize operational vibration and noise, fostering longevity.

With a maximum operating pressure of 1 Mpa, this cylinder safely delivers actuator functionality in automated manufacturing, material handling, and process control systems. Typical applications include robotics, assembly lines, and packaging machinery that require reliable motion control under varying conditions.

The device incorporates a minimum operating temperature of -10°C and a maximum of 70°C, permitting use in temperature-variable settings. Its compact physical footprint - 57mm in length, 36mm in height and width - makes it suitable for installations where space is limited.

The CQM Series' compatibility with SMC CQS and CQ2 mounting points ensures easy replacement and system upgrades. The inclusion of a magnetic piston as standard further enables precise sensing and control when paired with suitable sensors.

Provides versatile and robust pneumatic actuation for industrial automation. Delivers lateral load resistance superior to conventional designs within SMC's portfolio. Suits applications requiring compact form but high stability and repeatability.

Formulated for reliable operation in tough environments, including manufacturing, material handling, and assembly automation. Browse more Pneumatic Guided Cylinders, actuators, and automation solutions in Hydraulic & Pneumatic Tools from SMC on EnvMart.
