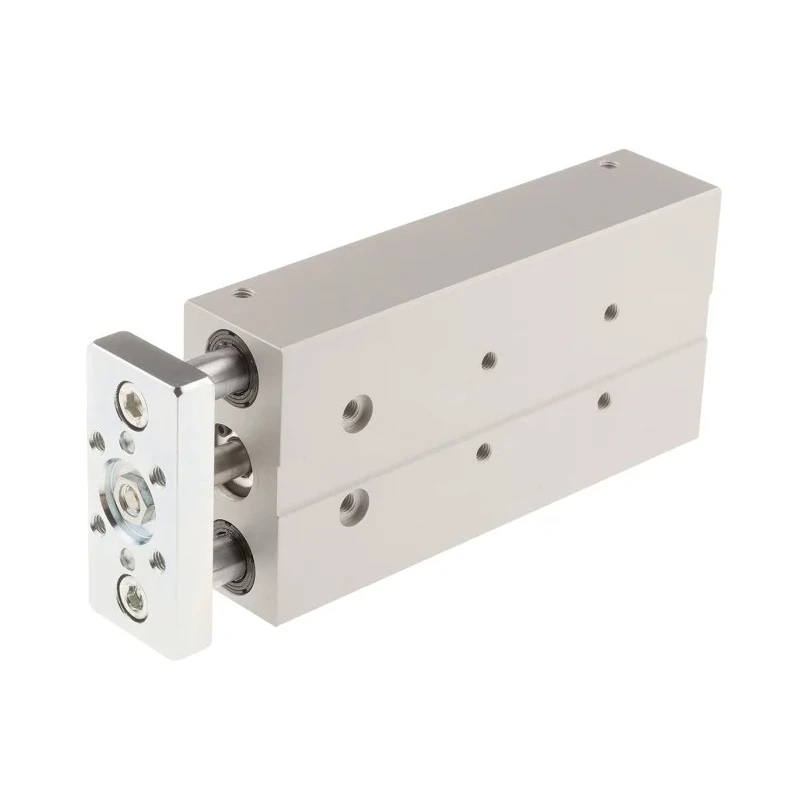

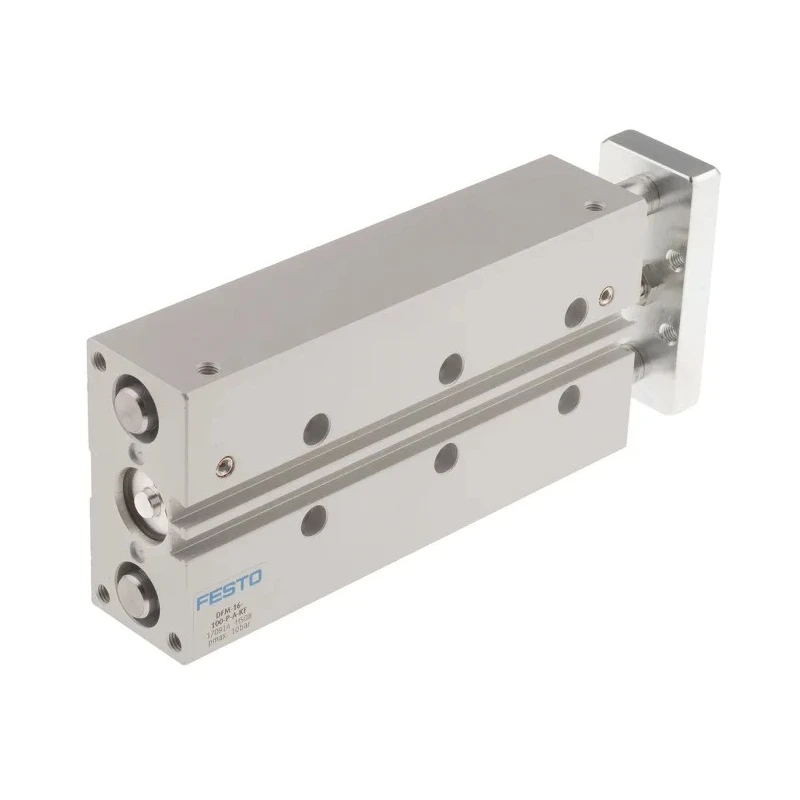

Festo Pneumatic Guided Cylinder 16mm Bore, Double Acting, 100mm Stroke, Wrought Aluminium Alloy DFM-16-100-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 32mm |
| Length | 167mm |
| Model | DFM-16-100-P-A-KF |
| Gross Weight | 988g |
| Width | 67mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 100mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS, VDMA24364-B1/B2-L, Cleanroom Class 6, ISO 8573-1:2010 (7:4:4) |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing |
| Maximum Piston Speed | 0.8m/s |
| Piston Rod Thread Size | M5 |
| Standards/Approvals RoHS, VDMA24364-B1/B2-L, Cleanroom Class 6, ISO 8573-1 | 2010 (7:4:4) |
Key Features
- Double acting pneumatic cylinder for efficient linear actuation.
- Robust construction with wrought aluminium alloy body.
- Maximum operating pressure of 10 bar.
- Recirculating ball bearing guide rods for high torque loads.
- Flexible elastomer cushioning for reduced operational noise and enhanced service life.
- Compact design with integrated piston rod and guide body construction.
- Air supply ports on both top and side for mounting flexibility.
- Suitable for clamping, lifting, stopping, and material handling tasks.
Product Description
Festo DFM-16-100-P-A-KF Pneumatic Guided Cylinder is engineered for precise and high-load industrial applications. With a 16mm bore diameter and a 100mm stroke length, this double-acting cylinder delivers reliable performance and longevity.
Crafted from wrought aluminium alloy, the cylinder features a robust recirculating ball bearing guide mechanism that allows it to withstand torque and lateral forces in applications such as clamping, stopping, lifting, and material handling. Its compact unit integrates the piston rod and guide body, simplifying installation and minimizing maintenance.
Flexible elastomer cushioning ensures quieter operation and extends product life. Air supply ports located on both the top and side of the actuator provide mounting flexibility, making it easy to adapt for different setups. Integrated sensor slots enable precise measurement of piston position when proximity sensors are required.
Double acting, offering smooth and consistent actuation. Ball bearing guide type supports applications involving high torque loads. Wrought aluminium alloy body provides lightweight durability. Maximum operating pressure up to 10 bar, with a maximum piston speed of 0.8 m/s.
Operating temperature range from -5°C to 60°C to suit varied environments. Thread size M5 for piston rod connection. Compliant with RoHS and VDMA24364-B1/B2-L standards, Cleanroom Class 6, and ISO 8573-1:2010 (7:4:4).
The Festo DFM series is maintenance-free and highly resistant to torque and lateral external forces, suitable for industrial, manufacturing, automation, and cleanroom applications.
Typical use cases include clamping, lifting, and stopping tasks in demanding environments. Whether used in material handling or dynamic load applications, it provides reliability and flexibility.
Explore more Pneumatic Guided Cylinders in the EnvMart catalog for your fluid power and automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic guided cylinder is 10 bar.
This model has a height of 32mm, a length of 167mm, and a width of 67mm.
The stroke length is 100mm and the bore diameter is 16mm.
It is constructed from wrought aluminium alloy, providing a lightweight and durable body.
This unit features a double acting action type, allowing for efficient linear actuation.
The maximum piston speed is 0.8 m/s.
It utilizes flexible elastomer cushioning to reduce operational noise and enhance service life.
The operating temperature range is from -5°C to 60°C.
It complies with RoHS, VDMA24364-B1/B2-L, Cleanroom Class 6, and ISO 8573-1:2010 (7:4:4) standards.
This model features a ball bearing guide type, which supports applications involving high torque loads.
The piston rod has a thread size of M5 for connection.
The mounting type for this unit is through hole, allowing for flexible installation options.
