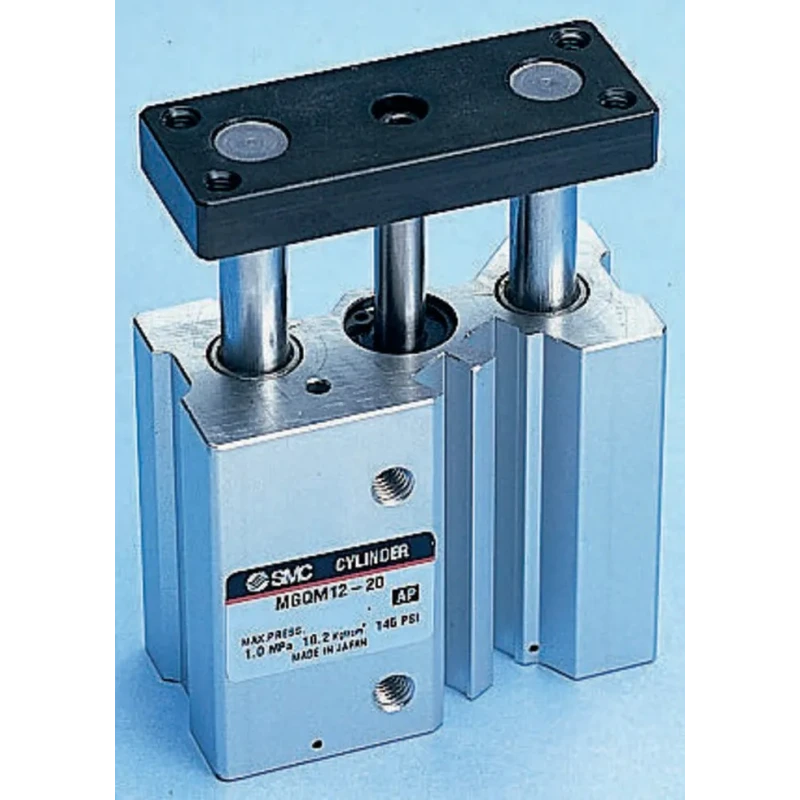

SMC Pneumatic Guided Cylinder 12mm Bore, MGQ Series, Double Acting, 20mm Stroke MGQM12-20
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 1 Mpa |
| Height | 58mm |
| Length | 59mm |
| Model | MGQM12-20 |
| Gross Weight | 270g |
| Width | 29mm |
| Mount Type | Direct |
| Series | MGQ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 20mm |
| Bore Diameter | 12mm |
| Rod Type | Guide Rod |
| Action Type | Double Acting |
| Cushioning Type | Rubber Cushioning at Both Ends |
| Guide Type | Slide Bearing, Ball Bearing |
Key Features
- Compact pneumatic guided cylinder designed for material handling and high load applications.
- Features a 12mm bore size and provides a stroke length of 20mm.
- Double acting mechanism ensures efficient linear movement in industrial automation.
- Rubber cushioning at both ends for smooth operation and increased durability.
- Guide rods with slide and ball bearings maintain high non-rotational accuracy.
- Direct mount design allows easy installation and secure attachment of fixtures.
- Maximum operating pressure up to 1 MPa for robust performance under demanding conditions.
- Operating temperature range from -10°C to 60°C suitable for tough environments.
Product Description
SMC MGQM12-20 Pneumatic Guided Cylinder is a high-performance, compact actuator designed for precise linear motion control in industrial and automation environments. Featuring a 12mm bore diameter and a 20mm stroke length, this double acting cylinder ensures reliable bidirectional movement for applications subject to high loads.
The MGQ series incorporates robust guide rods with slide and ball bearing options, delivering excellent non-rotational accuracy and resistance to side loading. Rubber cushioning at both ends smooths cylinder operation, reduces impact, and extends service life. Its pre-tapped mounting holes and direct mount configuration facilitate quick and secure installation.
Engineered to operate at a maximum pressure of 1 MPa, the MGQM12-20 cylinder withstands demanding industrial pressures, while its wide operating temperature range (-10°C to 60°C) ensures suitability for varied working conditions. The compact form factor, with dimensions of 59mm in length, 29mm in width, and 58mm in height, supports efficient use of workspace and integration into automation systems.
Compact pneumatic guided cylinder designed for material handling and high load applications. Features a 12mm bore size and provides a stroke length of 20mm. Double acting mechanism ensures efficient linear movement in industrial automation.
Rubber cushioning at both ends for smooth operation and increased durability. Guide rods with slide and ball bearings maintain high non-rotational accuracy. Direct mount design allows easy installation and secure attachment of fixtures.
Maximum operating pressure up to 1 MPa for robust performance under demanding conditions. Operating temperature range from -10°C to 60°C suitable for tough environments. Compact overall dimension: 59mm length × 29mm width × 58mm height.
Ideal for industrial, manufacturing, automation, and material handling applications.
This SMC MGQ series guided cylinder is ideal for manufacturing, material handling, packaging, and general industrial automation where accurate linear movement, compact size, and reliability are required.
Explore more Pneumatic Guided Cylinders and SMC products in the Hydraulic & Pneumatic Tools category at EnvMart for various industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this cylinder is 12mm.
The stroke length of the MGQM12-20 is 20mm.
It can operate at a maximum pressure of 1 MPa.
The operating temperature range is from -10°C to 60°C.
The cylinder features rubber cushioning at both ends, which helps to smooth operation and reduce impact.
It uses a direct mount design for easy installation and secure attachment of fixtures.
The dimensions are 59mm in length, 29mm in width, and 58mm in height.
This model uses guide rods with slide and ball bearings, ensuring high non-rotational accuracy.
It is suitable for applications in manufacturing, material handling, packaging, and general industrial automation.
The gross weight of the MGQM12-20 is 270g.
This cylinder belongs to the MGQ series.
It features a double acting mechanism for efficient linear movement.
