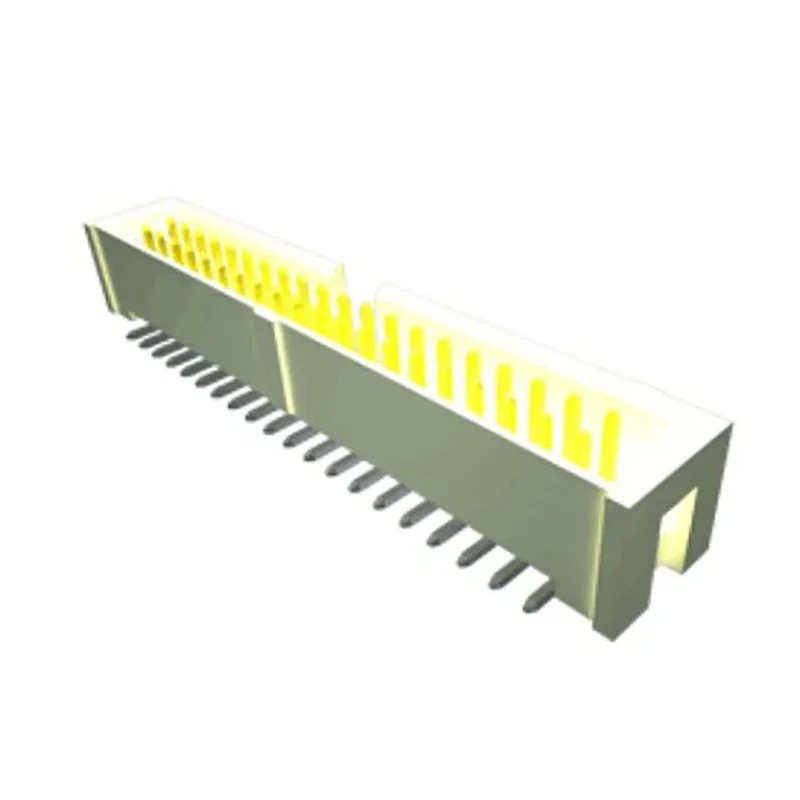

Samtec HTST Series Right Angle Surface PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded HTST-120-01-L-DV-P-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 3.4A |
| Model | HTST-120-01-L-DV-P-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | HTST |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The header includes 40 male contacts arranged in 2 rows.
- Pitch between contacts is 2.54 mm (0.100 inch) ensuring compatibility with standard PCB footprints.
- Housing is made of durable Liquid Crystal Polymer material suitable for high-performance applications.
- Contact material is phosphor bronze plated with gold for enhanced conductivity and corrosion resistance.
- Designed to operate safely within -55°C to 125°C temperature range.
- Right angle orientation with shrouded connectors supports robust board-to-board connection.
- Termination type is solder, compatible with surface mount PCB assembly processes.
- Widely used in electronics manufacturing, industrial control, and communication hardware systems.
Product Description
The Samtec HTST-120-01-L-DV-P-TR is a high-quality Right Angle Surface PCB Header designed for board-to-board connections with 40 male contacts in two rows. Featuring a compact 2.54 mm pitch, this header assures reliable electrical performance and mechanical fit for various electronic assemblies.
Its housing is constructed from Liquid Crystal Polymer, providing excellent mechanical strength and thermal stability across a broad operating range from -55°C to 125°C. The phosphor bronze contacts are plated with gold, which enhances conductivity and durability against corrosion, vital for industrial and commercial applications.
This component supports a current rating of 3.4 A and voltage rating of 600 V, making it suitable for circuits requiring moderate power levels. Shrouded and right angle design enhances connector protection and facilitates precise surface mount installation, optimizing PCB space usage.
The header offers 40 male contacts arranged in 2 rows for dense and reliable interconnections. The 2.54 mm standard pitch matches typical PCB layouts used in electronics and industrial devices. Liquid Crystal Polymer housing ensures durability and high-temperature resistance.
Gold-plated phosphor bronze contacts provide excellent electrical characteristics and longevity. Operating temperature range of -55°C to 125°C supports diverse environmental conditions. 600 V voltage and 3.4 A current ratings cover various electronic applications.
Right angle, shrouded design improves connection stability and protection. Solder termination enables secure and permanent attachment on surface mount PCBs. Ideal for use in industrial control systems, communication equipment, and electronic devices requiring robust connectivity.
Explore more PCB Headers and electronic components in the Electronics & Electricals category on EnvMart to find the right components for your projects and manufacturing needs.
