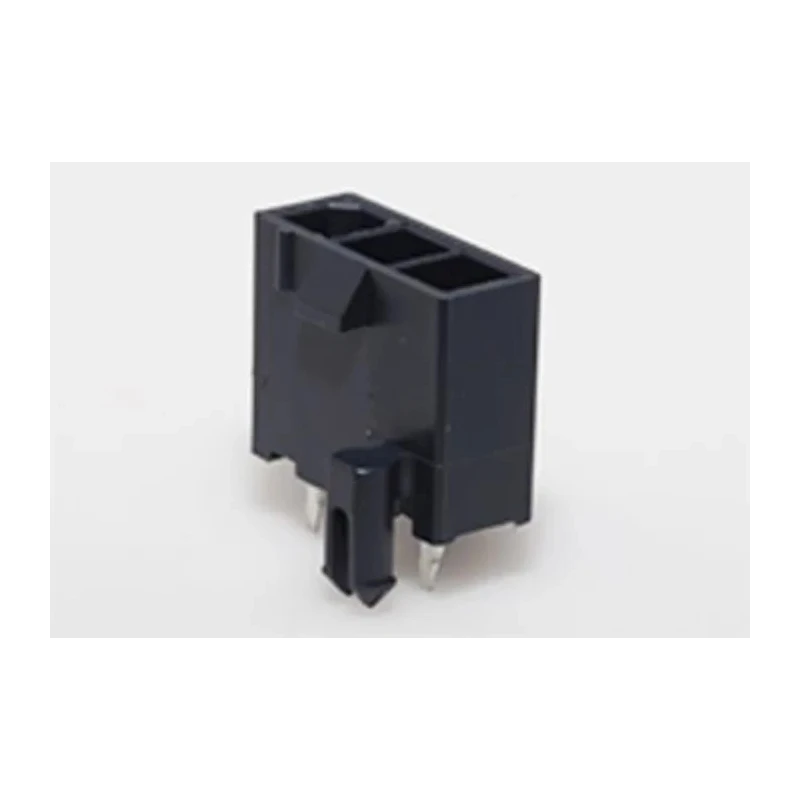

Molex Mini-Fit Jr Series Vertical Through Hole PCB Header, 3 Contacts, 4.2 mm Pitch, 1 Row, Shrouded 1726470103
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 13A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 4.2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Constructed with nylon housing ensuring durability and electrical insulation.
- Features shrouded design for added protection and secure mating.
- Supports a current rating of 13 A and voltage up to 600 V.
- Operates efficiently within -40° to 105°C temperature range.
- Through hole mount type with a single row and 3 male contacts.
- Contact plating of tin improves corrosion resistance and solderability.
- Terminated by solder, optimizing for PCB assembly processes.
- Complies with RoHS standards, ensuring environmental safety.
Product Description
Molex 1726470103 Mini-Fit Jr Series Vertical Through Hole PCB Header is a high-quality connector designed for electronic assembly and wire-to-board applications. This PCB header features a 3-contact configuration arranged in a single vertical row with a 4.2 mm pitch, suitable for reliable power and signal connections.
The housing is constructed from durable nylon material, providing excellent insulation and mechanical protection. The connector is shrouded, enhancing mating safety by preventing misalignment and mechanical damage.
Rated for 13 A current and 600 V voltage, this header performs reliably in demanding environments. Its operating temperature range spans from -40° C to a maximum of 105° C, making it suitable for industrial, automotive, and commercial electronics applications.
Durable nylon housing for environmental resilience. Shrouded design prevents connector damage and incorrect mating. High-current rating supports power applications up to 13 A. Wide operating temperature range for diverse environments.
Tin-plated brass contacts ensure strong solder joints and corrosion resistance. Through hole mounting compatible with standard PCB assembly techniques. Compliant with RoHS directive for environmental and safety standards.
Precision-manufactured in Mexico, assuring quality and reliability.
This Molex Mini-Fit Jr PCB Header is ideal for integration into electronic devices, power supplies, and control systems where compact, dependable, and high-performance connectors are required. Its compact 4.2 mm pitch and robust design support compact PCB layouts while maintaining electrical integrity.
Add this connector to your inventory for efficient, high-quality PCB interconnections suitable for industrial, laboratory, automotive, manufacturing, and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 13 A.
It is rated for a maximum voltage of 600 V.
The operating temperature range spans from -40°C to 105°C.
It features 3 male contacts arranged in a single row.
This model utilizes a through hole mount type for PCB assembly.
The housing is constructed from durable nylon, providing electrical insulation.
Yes, it complies with RoHS standards for environmental safety.
It features a solder termination type, optimizing it for PCB assembly processes.
The pitch of this PCB header is 4.2 mm.
The tail pin length is 3.5 mm.
It has a shrouded design that prevents misalignment and mechanical damage during mating.
This PCB header is precision-manufactured in Mexico.
