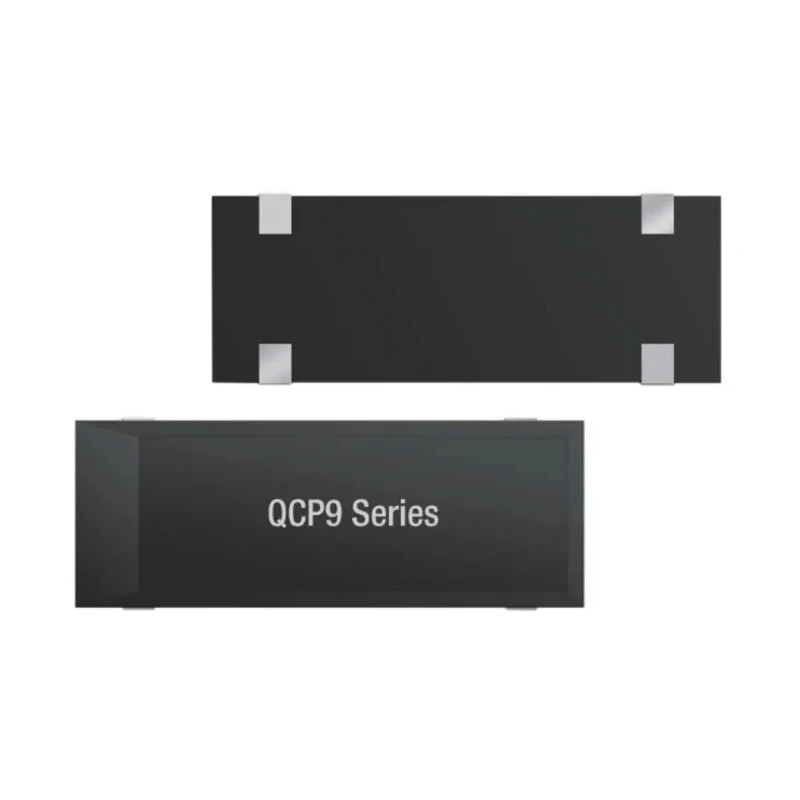

QANTEK 3.6864 MHz Crystal Unit ±30 ppm Surface Mount 4-Pin 3.7 mm Height 12.5 mm Length 4.6 mm Width QCP93.68640F18B35R
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 3.7mm |
| Length | 12.5mm |
| Model | QCP93.68640F18B35R |
| Packaging | Tape & Reel |
| Width | 4.6mm |
| Mount Type | Surface |
| Series | QCP9 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 3.6864MHz |
| Load Capacitance | 18pF |
| Series Resistance | 200Ω |
Key Features
- Standard frequency of 3.6864 MHz with ±30 ppm tolerance ensures precision operation.
- Surface mount package with 4 pins designed for easy PCB integration.
- Load capacitance of 18 pF suitable for typical electronic circuits.
- Wide operating temperature range from -40 °C to 85 °C for harsh industrial environments.
- Series resistance rating up to 200 Ω for stable oscillation.
- Compliant with RoHS standards, ensuring environmental safety.
- Supplied in tape and reel packaging for automated assembly processes.
- QCP9 series designed for commercial and industrial applications.
Product Description
QANTEK QCP93.68640F18B35R is a 3.6864 MHz crystal unit designed for surface mount applications in industrial and commercial electronics. This crystal unit features a 4-pin surface mount package offering ease of integration into printed circuit boards, with precise frequency tolerance of ±30 ppm to fulfill demanding timing and frequency control requirements.
The unit measures 12.5 mm in length, 4.6 mm in width, and 3.7 mm in height, making it compact yet sufficiently robust. Its load capacitance of 18 pF and series resistance of 200 Ω ensure optimal oscillator performance for a range of electronic devices.
Built to withstand extended temperature ranges from -40°C to +85°C, this crystal unit is suitable for harsh environments in industries such as industrial automation, telecommunications, instrumentation, and other embedded systems requiring reliable frequency sources.
Compliant with RoHS standards, the QCP9 series crystal units are manufactured with environmentally safe materials. They are supplied in tape and reel packaging format, enabling high-volume automated manufacturing and assembly processes.
This product is ideal for laboratory, electronic manufacturing, and commercial electronics applications where precise, stable frequency control is critical. The combination of durability, industrial-grade specifications, and surface mount form factor makes it a versatile choice for modern electronics design.
Standard frequency of 3.6864 MHz with ±30 ppm tolerance for accuracy. Compact 4-pin surface mount package (12.5 x 4.6 x 3.7 mm). Load capacitance of 18 pF optimizes operation in oscillator circuits. Wide operating temperature range from -40°C to 85°C for industrial resilience.
Series resistance of 200 Ω ensures stability in oscillation. RoHS compliant for environmental safety. Supplied in tape & reel packaging for automated PCB assembly. Manufactured in China under stringent quality standards.
This QANTEK crystal unit is part of a trusted range of components for electronics engineers, ideal for incorporation in industrial machines, telecom equipment, embedded systems, and other electronics applications requiring precision timing. Explore EnvMart's broad selection of Crystal Units for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 3.6864 MHz with a tolerance of ±30 ppm.
This model measures 12.5 mm in length, 4.6 mm in width, and 3.7 mm in height.
The load capacitance of this crystal unit is 18 pF, which is suitable for typical electronic circuits.
The series resistance rating for this model is up to 200 Ω, ensuring stable oscillation.
The operating temperature range for this unit is from -40 °C to 85 °C, making it suitable for harsh industrial environments.
It is supplied in tape and reel packaging, which facilitates automated assembly processes.
This model features a surface mount package with 4 pins for easy integration into printed circuit boards.
Yes, this crystal unit is compliant with RoHS standards, ensuring environmental safety.
This crystal unit is part of the QCP9 series, designed for commercial and industrial applications.
This model is suitable for applications in industrial automation, telecommunications, instrumentation, and embedded systems requiring reliable frequency sources.
The pin count for this crystal unit is 4, allowing for straightforward PCB integration.
This product is manufactured in China under stringent quality standards.
