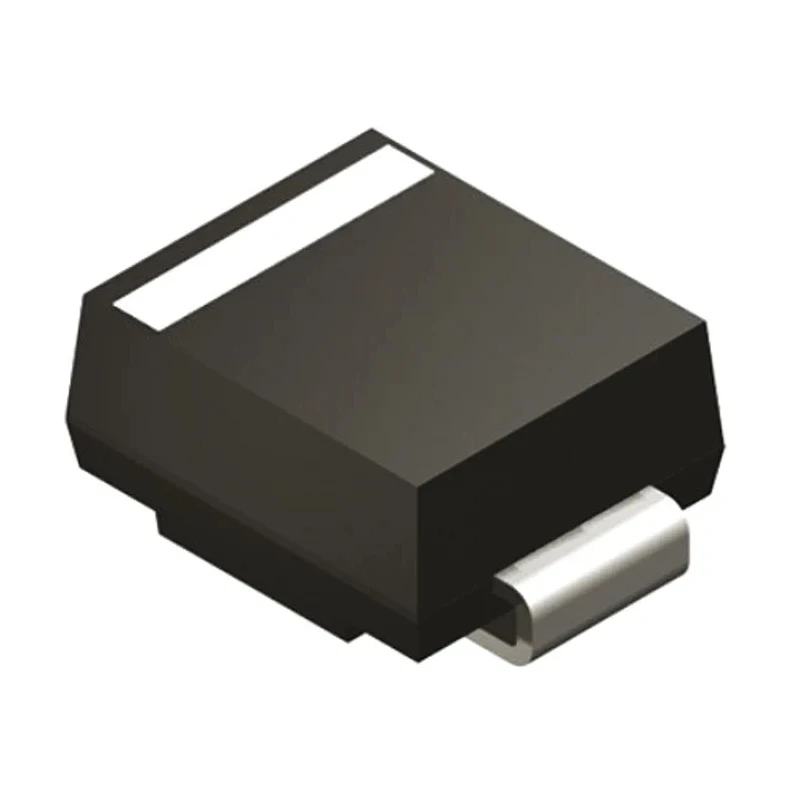

DiodesZetex 1-Element Uni-Directional TVS Diode 600W Surface Mount DO-214 SMBJ54A-13-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 2.42mm |
| Length | 4.57mm |
| Model | SMBJ54A-13-F |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 87.1V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 60V |
| Maximum Reverse Stand-off Voltage Vwm | 54V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 6.9A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- This TVS diode features a single diode configuration for transient voltage suppression.
- It has a minimum breakdown voltage of 60 V ensuring reliable protection against voltage spikes.
- The device supports a maximum reverse stand-off voltage of 54 V suitable for board level protection.
- The clamping voltage is specified at 87.1 V to clamp surges effectively.
- This diode supports operating temperatures from -55°C up to 150°C for robust performance.
- The peak pulse current rating is 6.9 A for handling transient surges with 600 W power rating.
- Compact dimensions with a length of 4.57 mm, width of 3.94 mm and height of 2.42 mm aid in space-saving PCB layouts.
- The package type DO-214 and 2-pin configuration facilitates easy surface mounting.
Product Description
The DiodesZetex SMBJ54A-13-F is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode that provides robust protection against voltage transients in electronic circuits. Engineered with a reliable single diode configuration, this device is designed for surface-mount technology with a DO-214 package.
With a peak pulse power dissipation of 600 W and a peak pulse current rating of 6.9 A, the SMBJ54A-13-F effectively clamps high energy transients, protecting sensitive electronic components from damage. It features a minimum breakdown voltage of 60 V and a maximum reverse stand-off voltage of 54 V, suitable for a wide range of power supply and signal line protection applications.
The device operates reliably across a temperature range of -55°C to 150°C, ensuring durability in diverse environmental conditions. It also boasts a low maximum reverse leakage current of 5 μA, contributing to its high efficiency and minimal power loss. Compact dimensions (4.57 mm length, 3.94 mm width, and 2.42 mm height) facilitate high-density circuit board designs.
This TVS diode is ideal for industrial electronics, power supplies, automotive electronics (non-automotive standard compliant), telecommunications, and consumer electronics to safeguard circuits from voltage spikes and electrostatic discharge events.
This device has a single diode configuration for voltage transient suppression. Uni-directional TVS diode designed for protection against positive voltage transients. Peak pulse power rating of 600 W protects against high energy surges.
Compact surface mount DO-214 package eases PCB assembly and space utilization. Wide operating temperature range from -55°C to 150°C for industrial applications. Low maximum reverse leakage current of 5 μA to minimize power loss.
Maximum peak pulse current of 6.9 A for absorbing transient currents. Provides reliable overvoltage protection in electronic circuit designs.
As part of the SMBJ series, this diode ensures quality and dependable performance for voltage protection. It is a vital component for engineers and designers working on transient voltage suppression to enhance the reliability and longevity of electronic devices.
Explore further in the EnvMart TVS Diode category for related protective semiconductor components.
