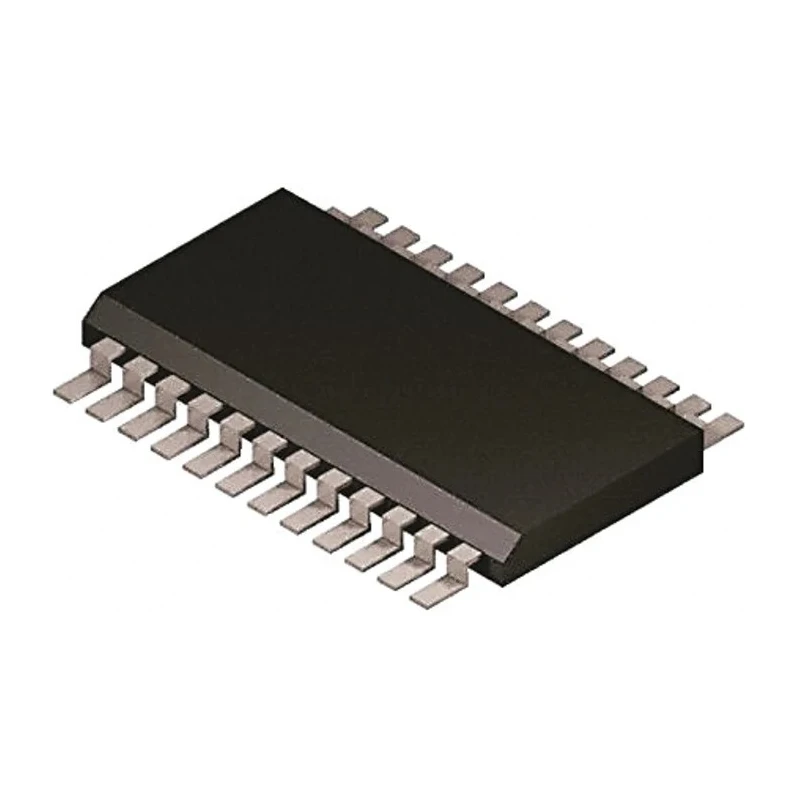

MaxLinear Multiprotocol Transceiver 24-Pin TSSOP Surface Mount, RS232 RS422 RS485, 3 - 5.5V Supply, 20Mbps SP330EEY-L
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.05mm |
| Length | 7.9mm |
| Model | SP330EEY-L |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | SP330E |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 2.5mA |
| Maximum Data Rate | 20Mbps |
| Number of Transceivers | 1 |
| Number of Receivers | 2 |
| Number of Transmitters | 2 |
| Transmitter Signal Type | Differential |
| Interface Standards | RS232, RS422, RS485 |
Key Features
- Operates with a single supply voltage ranging from 3V to 5.5V.
- Includes 2 transmitters and 2 receivers in a compact surface mount package.
- High reliability across operating temperatures from -40°C to 85°C.
- Implements differential transmitter and receiver signal types for robust communication.
- Meets RoHS and IEC 61000-4-2 standards for environmental and electrostatic compliance.
- Compact dimensions of 7.9mm length, 4.5mm width, and 1.05mm height suit space-constrained designs.
- Typical supply current around 2.5mA ensuring low power consumption.
Product Description
MaxLinear SP330EEY-L is a multiprotocol transceiver designed for surface mount applications, providing support for RS232, RS422, and RS485 communication standards at data rates up to 20Mbps. This device comes in a 24-pin TSSOP package with precise dimensions of 7.9mm length, 4.5mm width, and 1.05mm height, making it suitable for compact and dense PCB layouts.
The transceiver features 2 transmitters and 2 receivers with differential signaling, facilitating robust data transfer in industrial and embedded system applications. It operates on a single power supply voltage from 3V to 5.5V with a low supply current of approximately 2.5mA, providing energy-efficient design benefits.
Designed for harsh environments, it supports a wide operating temperature range from -40°C to 85°C and complies with RoHS environmental directives and IEC 61000-4-2 standards for electrostatic discharge immunity.
Typical applications include industrial and single board computers, process control equipment, point-of-sale systems, and building security automation. Operates with a 3V to 5.5V single supply voltage. Supports multiple interface standards: RS232, RS422, and RS485.
Surface mount 24-pin TSSOP package with compact dimensions. 2 transmitters and 2 receivers for multiprotocol communication. Differential signal types for transmitters and receivers for noise immunity. Wide operating temperature range of -40°C to 85°C suitable for industrial environments.
Meets RoHS and IEC 61000-4-2 standards for environmental and ESD compliance. Explore more MaxLinear semiconductor products and Multiprotocol Transceivers on EnvMart to meet your industrial and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this multiprotocol transceiver is 20Mbps.
It supports RS232, RS422, and RS485 communication standards.
This transceiver operates with a single supply voltage ranging from 3V to 5.5V.
The typical supply current is approximately 2.5mA, ensuring low power consumption.
The transceiver has compact dimensions of 7.9mm in length, 4.5mm in width, and 1.05mm in height.
It operates within a wide temperature range from -40°C to 85°C.
This model includes 2 transmitters and 2 receivers for multiprotocol communication.
It comes in a 24-pin TSSOP surface mount package.
This transceiver meets RoHS and IEC 61000-4-2 standards for environmental and electrostatic compliance.
It implements differential signaling for both transmitters and receivers, enhancing noise immunity.
Typical applications include industrial and single board computers, process control equipment, and point-of-sale systems.
The country of origin for this transceiver is India.
