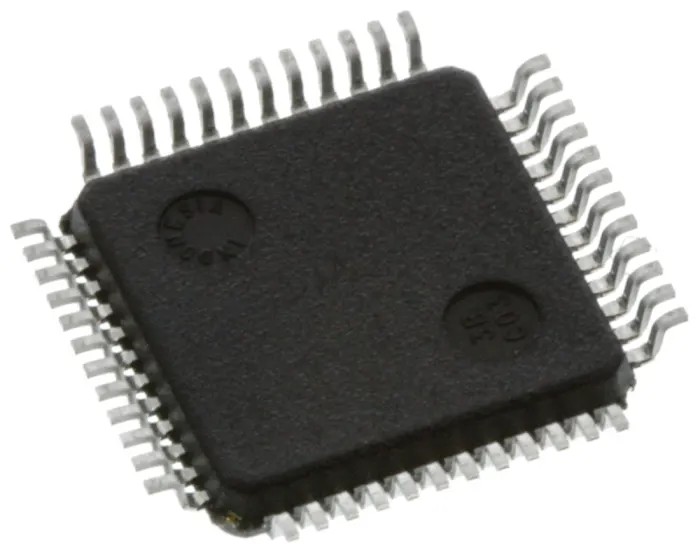

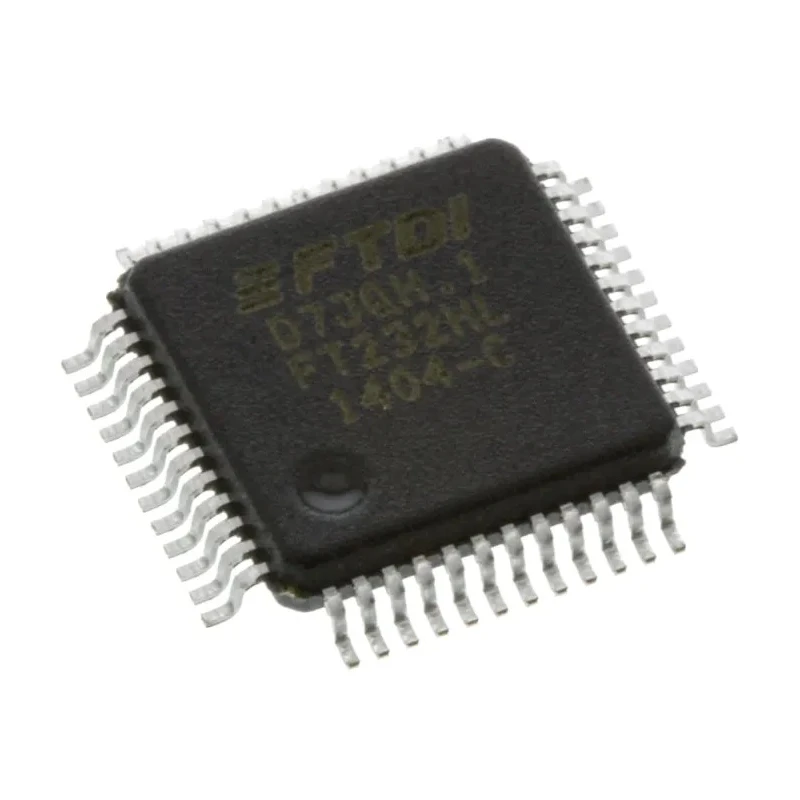

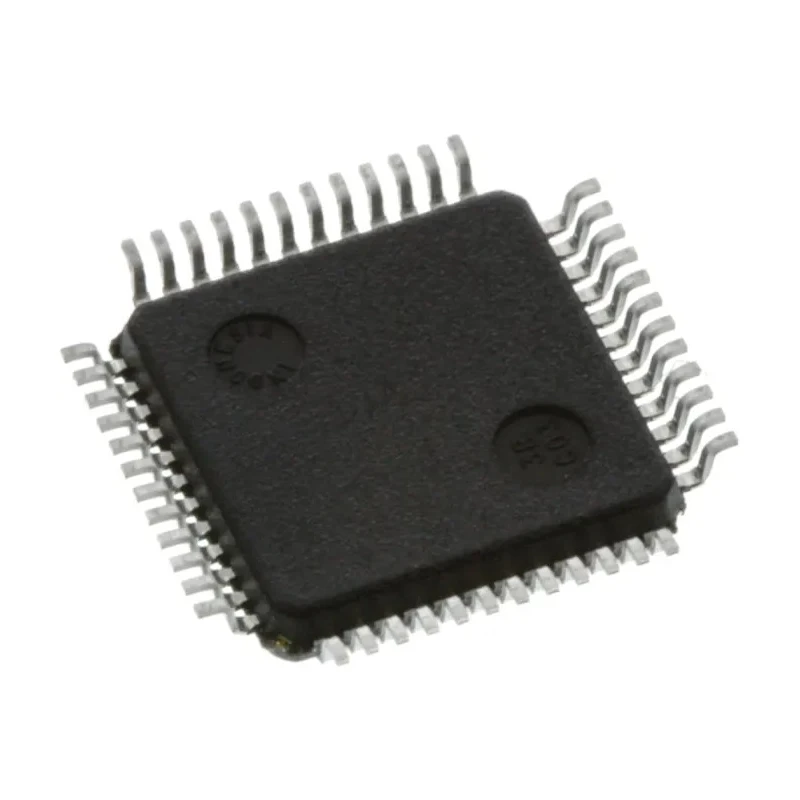

FTDI Chip Multiprotocol Transceiver 48-Pin LQFP, 12Mbps Data Rate, Surface Mount FT232HL-REEL
Specifications
| Country of Origin | India |
|---|---|
| Brand | FTDI Chip |
| Model | FT232HL-REEL |
| Mount Type | Surface |
| Series | FT232H |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | USB-IF Test-ID (TID) 40770005, RoHS (Lead (Pb) Free) |
| Pin Count | 48 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 50mA |
| Maximum Data Rate | 12Mbps |
| Number of Transceivers | 1 |
| Number of Receivers | 1 |
| Number of Transmitters | 1 |
| Interface Standards | CPU-style FIFO, SPI, JTAG, Bit-Bang, I2C, UART, USB 2.0, FT1248, FIFO |
Key Features
- Supports a maximum data rate of 12Mbps for high-speed communication.
- Includes 1 transmitter, 1 receiver, and 1 transceiver integrated in a compact 48-pin LQFP package.
- Operates with a minimum supply voltage of 1.8V up to a maximum of 5V.
- Interface standards include CPU-style FIFO, SPI, JTAG, Bit-Bang, I2C, UART, USB 2.0, FT1248, and FIFO modes.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- Supply current is approximately 50mA for efficient power consumption.
- Complies with USB-IF Test-ID 40770005 and RoHS lead-free standards assuring quality and safety.
- Surface mount mount type allows integration into modern PCB assembly lines.
Product Description
The FTDI Chip FT232HL-REEL is a multiprotocol transceiver designed for high-speed data communication in embedded and industrial applications. This device supports an impressive maximum data rate of 12Mbps, which facilitates efficient and fast data transfer across multiple interfaces.
Housed in a 48-pin LQFP surface mount package, the transceiver integrates one transmitter, one receiver, and one transceiver, providing versatile and compact design benefits. It operates with a supply voltage range from 1.8V to 5V, making it suitable for diverse operating conditions hardened for industrial use with a temperature range of -40°C to +85°C.
This chip supports a wide array of interface standards including CPU-style FIFO, SPI, JTAG, Bit-Bang, I2C, UART, USB 2.0, FT1248, and FIFO, allowing it to adapt to various communication protocols required in modern embedded systems.
The device complies with USB-IF Test-ID 40770005 and is RoHS lead-free, ensuring it meets compliance and environmental regulations. Its supply current is a low 50mA, which keeps power consumption efficient for battery-operated or low-power applications.
Delivered on a reel, this packaging format is optimized for automated assembly, improving production efficiency. This multiprotocol transceiver is ideal for use in industrial electronics, computing devices, and any application requiring reliable serial I/O peripheral connectivity.
Supports 12Mbps maximum data rate for fast communication. Integrated transmitter and receiver in 48-pin LQFP surface mount package. Wide voltage operation from 1.8V to 5V for flexible power options. Multiple interface protocols supported including SPI, JTAG, UART, and USB 2.0.
Industrial temperature range from -40°C to 85°C. Low power consumption with 50mA supply current. Meets USB-IF and RoHS standards for compliance. Reel packaging suitable for automated manufacturing. Versatile component for embedded system designs and industrial use.
Explore similar Multiprotocol Transceivers and FTDI Chip products in the EnvMart Electronics & Electricals category for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FT232HL-REEL supports a maximum data rate of 12Mbps, facilitating high-speed communication.
This model operates with a supply voltage range from 1.8V to 5V, allowing for flexible power options in various applications.
It can operate within a wide temperature range from -40°C to 85°C, making it suitable for industrial environments.
The FT232HL-REEL supports multiple interface standards including CPU-style FIFO, SPI, JTAG, Bit-Bang, I2C, UART, USB 2.0, FT1248, and FIFO modes.
The supply current for this model is approximately 50mA, which contributes to efficient power consumption.
It is housed in a 48-pin LQFP (Low-Profile Quad Flat Package) surface mount package, suitable for modern PCB assembly.
This model integrates one transmitter and one receiver, along with one transceiver in its design.
Yes, it complies with USB-IF Test-ID 40770005 and RoHS lead-free standards, ensuring quality and safety.
The dimensions are defined by its 48-pin LQFP package, but specific measurements are not provided in the data.
This transceiver utilizes a surface mount type, which is optimized for automated assembly processes.
It is ideal for use in industrial electronics, computing devices, and applications requiring reliable serial I/O peripheral connectivity.
The country of origin for this model is India.
