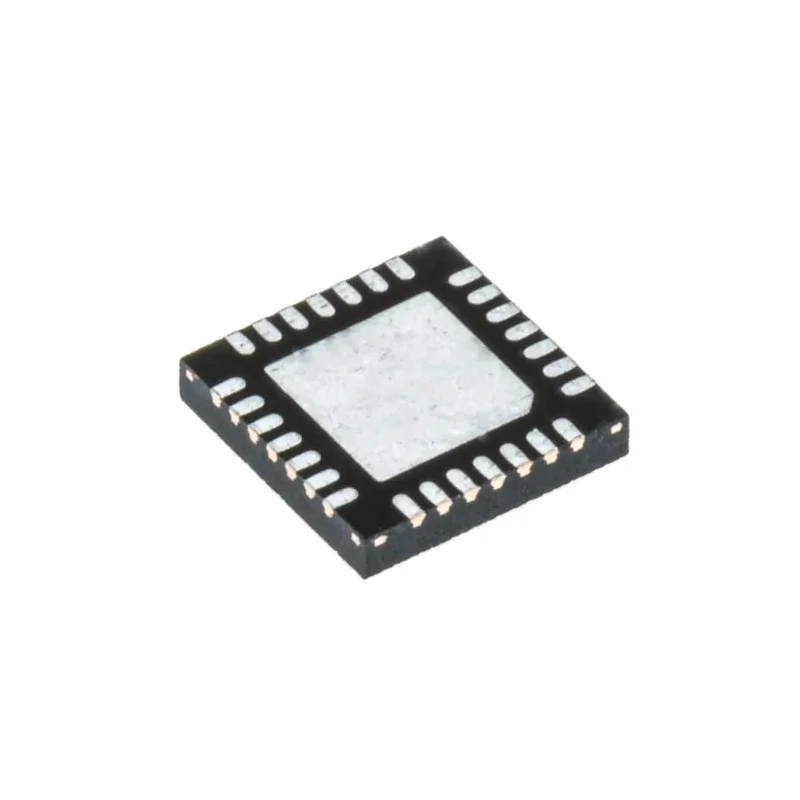

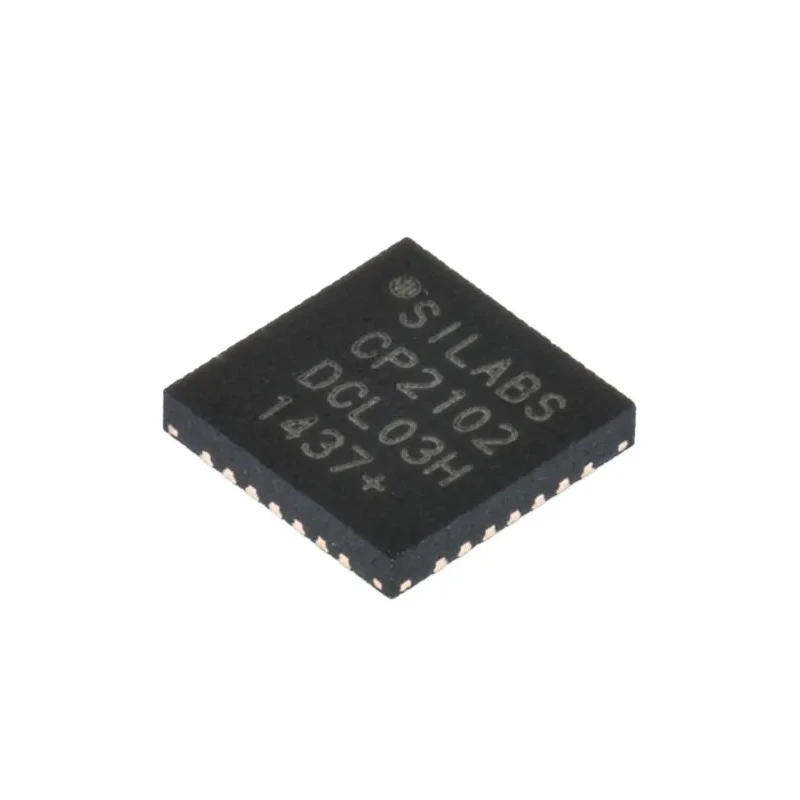

Silicon Labs Programmable Transceiver 28-Pin QFN, UART Interface, 3.3V-5.25V Supply, CP2102-GM

Free Delivery in India | Lowest Global Shipping Charges

Silicon Labs Programmable Transceiver 28-Pin QFN, UART Interface, 3.3V-5.25V Supply, CP2102-GM

Name: Silicon Labs Programmable Transceiver 28-Pin QFN, UART Interface, 3.3V-5.25V Supply, CP2102-GM
Brand: Silicon Labs
SKU: 194397
Price: 8.94 USD
Availability: InStock



Category Multiprotocol Transceivers Brand Silicon Labs Condition New

Specifications

Country of Origin	India
Brand	Silicon Labs
Height	880μm
Length	5mm
Model	CP2102-GM
Width	5mm
Mount Type	Surface
Series	CP2102
Maximum Operating Temperature	85°C
Package Type	QFN
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	28
Maximum Supply Voltage	5.25V
Minimum Supply Voltage	3.3V
Supply Current	20mA
Maximum Data Rate	12Mbps
Number of Transceivers	1
Number of Receivers	1
Number of Transmitters	1
Transmitter Signal Type	Single Ended
Interface Standards	UART

Key Features

Supports a maximum data rate of 12 Mbps for high-speed data transfer.
Single-ended transmitter and receiver signal types for optimized signal integrity.
Surface mount device with compact 5mm length, 5mm width, and 880μm height.
Operating temperature range from -40°C to 85°C ensures reliability in harsh environments.
Low supply current consumption of 20mA for energy-efficient operation.
RoHS compliant, meeting environmental and safety standards.
Designed to interface with UART standards suitable for multiple serial I/O applications.
Single transmitter and receiver integrated in one transceiver chip.

Product Description

Silicon Labs CP2102-GM is a programmable transceiver available in a 28-pin QFN package, designed to provide robust serial communication for electronic components. It operates with a supply voltage ranging from 3.3V to 5.25V, adhering to UART interface standards.

This transceiver supports a maximum data rate of 12 Mbps, enabling efficient high-speed data transfer applications. The device features single-ended transmitter and receiver signal types, ensuring signal reliability and compatibility with various industrial and commercial electronic designs.

The package is a surface mount type with precise dimensions of 5mm width, 5mm length, and 880μm height, enabling compact PCB layouts. It has an operating temperature range from -40°C to 85°C, making it suitable for use in a wide range of environmental conditions, ranging from industrial to commercial applications.

The supply current is low at 20mA, contributing to energy-efficient system designs. Additionally, it is RoHS compliant, meeting environmental safety standards for electronics manufacturing.

The CP2102 series includes one transmitter and one receiver consolidated in a single transceiver device, offering streamlined design and integration within serial communication systems. Although it does not conform to automotive standards, it is ideal for a broad spectrum of industrial, laboratory, and commercial electronics use cases.

Supports maximum data rate of 12 Mbps. Single-ended transmitter and receiver signals. Surface mount device in 28-pin QFN package. Operating voltage range 3.3V to 5.25V. Operating temperature from -40°C to 85°C. Low supply current of 20 mA.

RoHS compliant for environmental safety. UART interface compatibility. One transmitter and one receiver integrated. Designed for industrial and commercial electronic applications. Explore additional Silicon Labs transceivers and related semiconductor components in EnvMart's Electronics & Electricals section.
