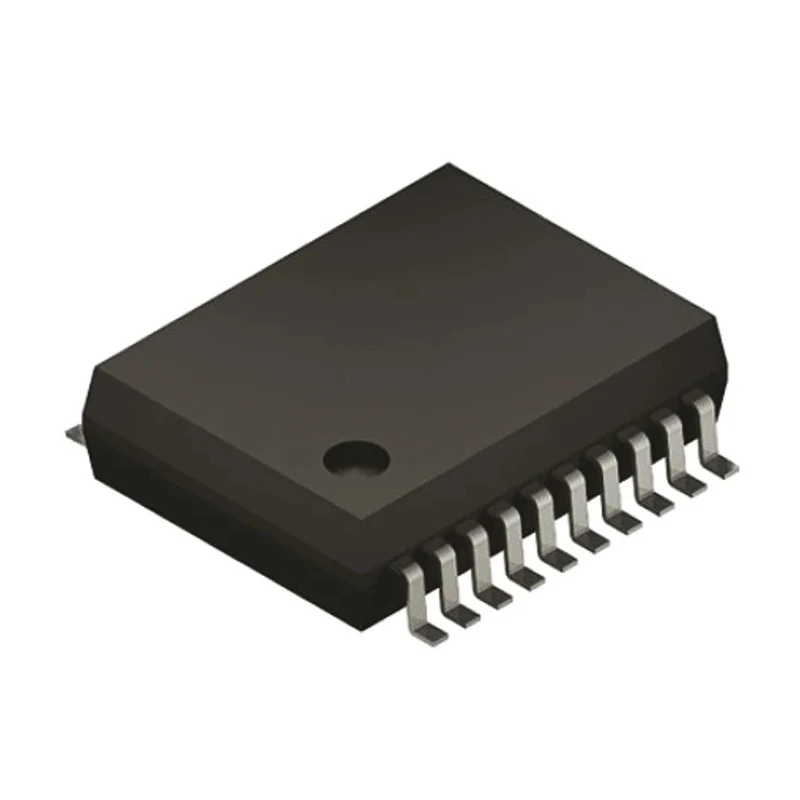

MaxLinear Multiprotocol Transceiver 20-Pin SSOP Surface Mount, 3 - 5.5 V Supply, Differential Signal XR3160EIU-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.85mm |
| Length | 7.5mm |
| Model | XR3160EIU-F |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | XR3160 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 2.5mA |
| Transmitter Signal Type | Differential |
| Interface Standards | EIA/TIA485 |
Key Features
- Operates with a supply voltage range from 3 V to 5.5 V.
- Supports interface standards including EIA/TIA485.
- Functions reliably in temperatures ranging from -40°C to 85°C.
- Compact SSOP package with dimensions 7.5 mm length, 5.6 mm width, and 1.85 mm height.
- Low supply current consumption of 2.5 mA enhances energy efficiency.
- RS-232, RS-422, and RS-485 compatible transceiver series XR3160.
- Ideal for industrial, control, building automation, and point-of-sale equipment applications.
- Compliance with RoHS standards ensures environmental safety.
Product Description
The MaxLinear XR3160EIU-F is a multiprotocol transceiver designed for seamless communication in industrial and embedded systems. Packaged in a compact 20-pin SSOP surface mount device, it supports a wide voltage range from 3 to 5.5 volts, facilitating flexible deployment in various electronic equipment.
The transceiver supports differential transmitter and receiver signals, conforming to the EIA/TIA485 interface standards, making it suitable for RS-232, RS-422, and RS-485 communication protocols. Operating temperature ranges from -40°C to 85°C allow it to withstand harsh environmental conditions typically found in industrial automation and control systems.
Featuring low power consumption with a supply current of only 2.5 mA, the XR3160EIU-F contributes to energy-efficient device designs. Its small footprint with dimensions of 7.5 mm in length, 5.6 mm in width, and 1.85 mm in height ensures efficient PCB space utilization.
This transceiver finds applications in industrial and single board computers, process control equipment, building security and automation systems, and point-of-sale devices. The product is RoHS compliant, supporting environmentally responsible manufacturing practices.
Surface mount 20-pin SSOP package for easy PCB integration. Multiprotocol support including RS-232, RS-422, and RS-485 standards. Wide voltage supply: 3V min to 5.5V max. Operating temperature range supports industrial environments.
Power efficient design with 2.5 mA supply current. Compact size optimizes board layout. Applicable to industrial, automation, and commercial electronics. Meets RoHS environmental standards.
MaxLinear products empower innovative electronic designs. Explore the extensive range of semiconductor solutions in EnvMart’s Electronics & Electricals category to suit your industrial and commercial needs.
Explore more products in our Multiprotocol Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range from 3 V to 5.5 V.
The dimensions are 7.5 mm in length, 5.6 mm in width, and 1.85 mm in height.
It supports EIA/TIA485 interface standards, making it compatible with RS-232, RS-422, and RS-485 communication protocols.
The operating temperature range is from -40°C to 85°C, suitable for harsh industrial environments.
It has a low supply current consumption of 2.5 mA, enhancing energy efficiency.
The transceiver is packaged in a compact 20-pin SSOP surface mount device.
It transmits differential signals, which are essential for reliable communication in various applications.
Yes, it complies with RoHS standards, ensuring environmental safety in its manufacturing.
This model is suitable for industrial automation, control systems, building security, and point-of-sale equipment applications.
The XR3160EIU-F has a pin count of 20.
Differential signal types help reduce noise and improve the integrity of the transmitted data over longer distances, making it ideal for industrial applications.
The country of origin for this model is India.
