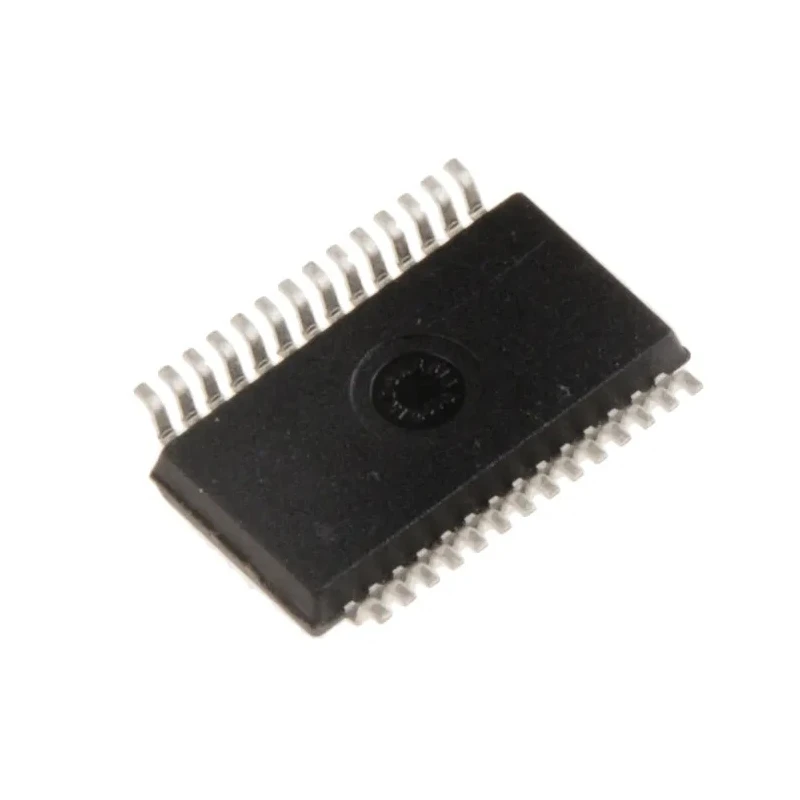

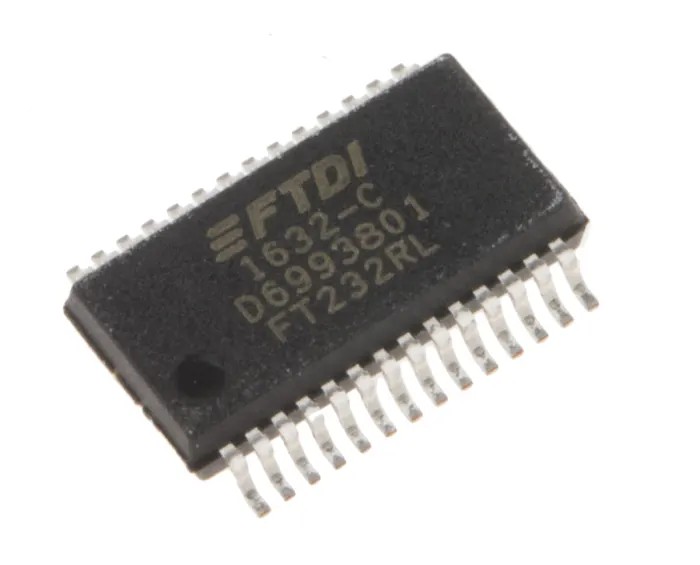

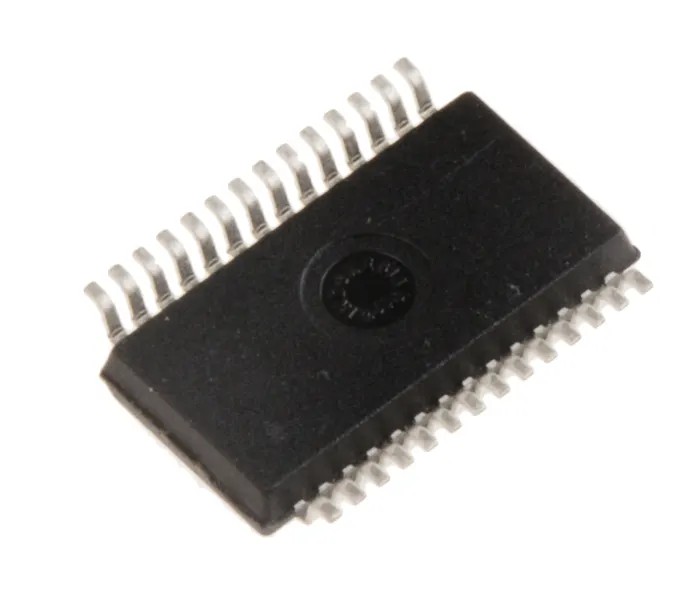

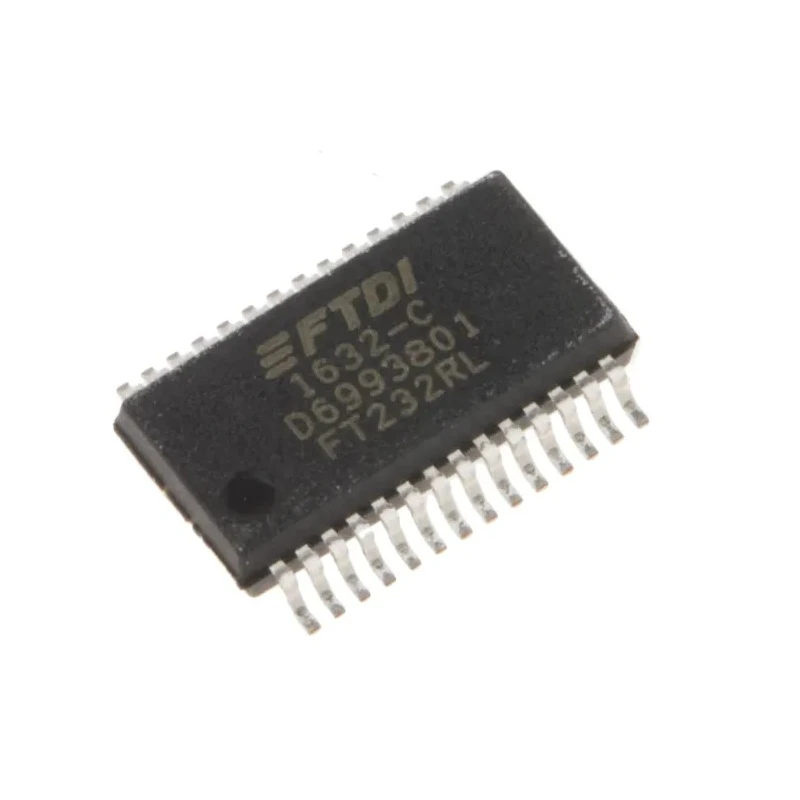

FTDI Chip Multiprotocol Transceiver 28-Pin SSOP, USB to Serial UART Interface, 1 Transmitter, 1 Receiver, 3MBd FT232RL-REEL

FTDI Chip FT232RL-REEL is a high-performance multiprotocol transceiver packaged in a compact 28-Pin SSOP surface mount. This device integrates a USB to serial UART interface with an optional clock generator output, supporting asynchronous and synchronous bit bang interface modes. It includes an embedded 1024-bit EEPROM, clock circuitry, and USB resistors, effectively making it a "3 in 1" chip for various applications.

The internally generated clock frequencies of 6 MHz, 12 MHz, 24 MHz, and 48 MHz can drive microcontrollers or external logic. Additionally, each unit is uniquely identifiable by a burnt-in FTDIChip-ID, enabling protection mechanisms for customer software against unauthorized copying.

This transceiver supports data transfer rates ranging from 300 Baud up to 3 MBaud using RS422, RS485, or RS232 interfacing at TTL levels. It features a 128-byte receive buffer and a 256-byte transmit buffer with smoothing technology to ensure high throughput.

Designed for surface mounting, the 28-pin SSOP package measures 10.2mm in length, 5.3mm in width, and 1.75mm in height, operating reliably between -40°C and 85°C with supply voltage between 1.8V and 5.25V.

Typical applications for the FT232RL include USB industrial control, bar code reading, digital camera interfaces, wireless modems, PDA to USB transfers, card readers, USB FLASH memory readers/writers, USB audio devices, and low bandwidth video data transfers.

Single chip USB to asynchronous serial data transfer interface. Entire USB protocol handled on-chip requiring no USB-specific firmware. Fully integrated 1024-bit EEPROM for device descriptors and CBUS I/O configuration. Supports data rates from 300 Baud to 3 MBaud with buffer smoothing technology.

Integrated clock generation with multiple output frequencies, without external crystal. Compact 28-Pin SSOP surface mount package. Wide operating temperature range from -40°C to 85°C for industrial applications. Low supply current of 15mA with wide supply voltage range.

Unique FTDIChip-ID embedded for security dongle applications. Manufactured in Taiwan, Province Of China. Explore more semiconductor products in the Multiprotocol Transceivers category at EnvMart for advanced electronic component needs.
