FTDI Chip 3.3 V TTL Evaluation Board USB to UART Converter for Microcontroller TTL-232R-3V3-PCB

Free Delivery in India | Lowest Global Shipping Charges

FTDI Chip 3.3 V TTL Evaluation Board USB to UART Converter for Microcontroller TTL-232R-3V3-PCB

Name: FTDI Chip 3.3 V TTL Evaluation Board USB to UART Converter for Microcontroller TTL-232R-3V3-PCB
Brand: FTDI Chip
SKU: 137431



Category Communication & Wireless Development Tool Brand FTDI Chip Condition New

Specifications

Country of Origin	China
Brand	FTDI Chip
Model	TTL-232R-3V3-PCB
Interfaces	USB powered, no external supply required
Interface Type	UART, USB
For Use With	Microcontroller
Standards/Approvals	RoHS
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Kit Classification	Evaluation Board
Kit Name	3.3 V TTL

Key Features

Supports 3.3 V UART signalling with USB 2.0 full speed compatibility.
Enables data transfer rates from 300 baud to 3 Mbaud at TTL levels.
Includes FT232RQ USB to serial UART IC for handling USB protocols.
USB powered PCB requires no external supply, with 5 V or 75 mA output.
Supports user-writable internal EEPROM for configuration.
Compatible with UHCI, OHCI and EHCI host controllers.
Suitable for USB instrumentation, industrial control, and encryption dongles.
Complies with RoHS standards and ANSI/ESD S20.20 and BS EN 61340-5-1 certifications.

Product Description

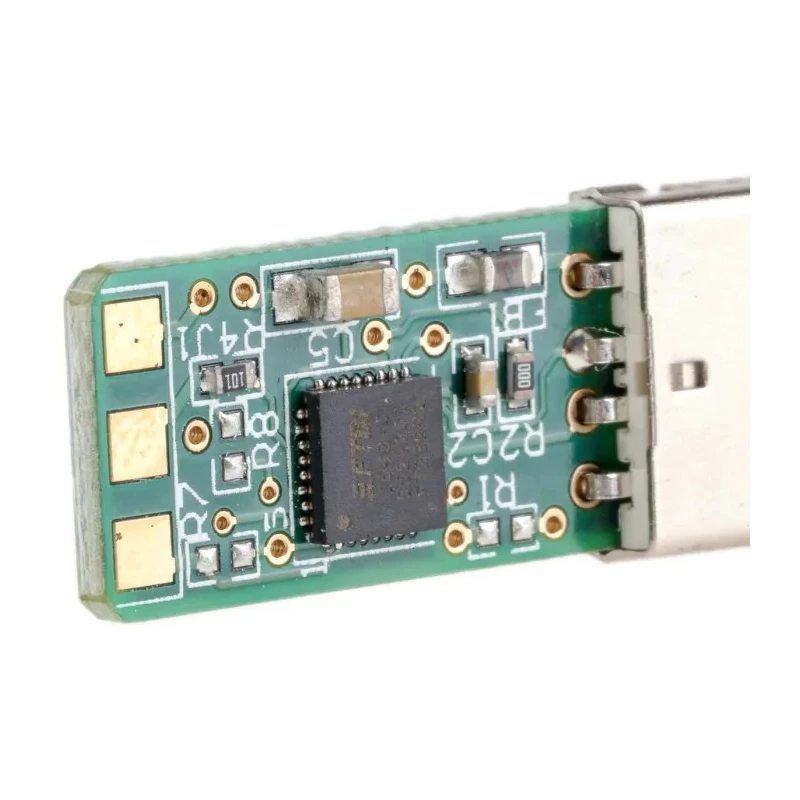

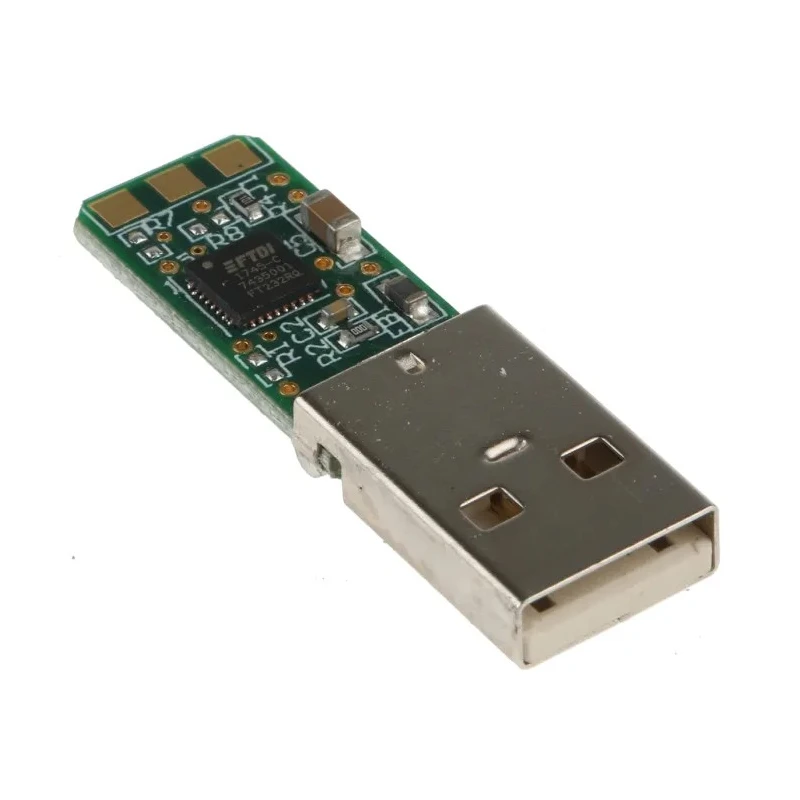

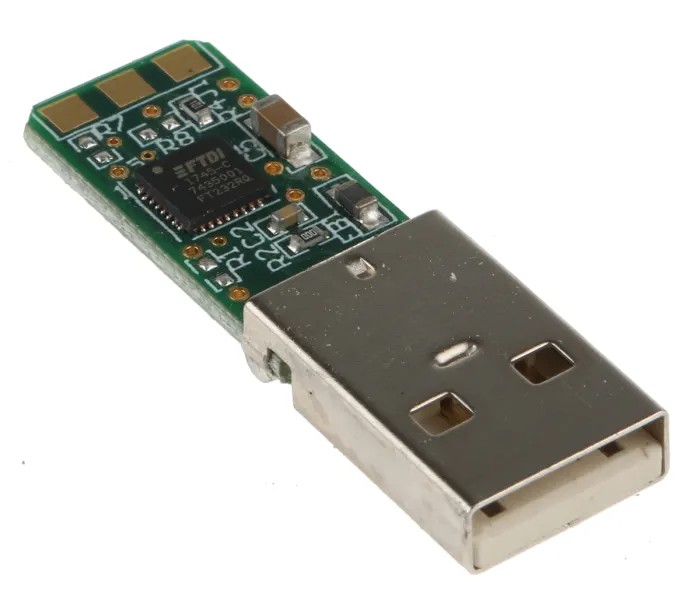

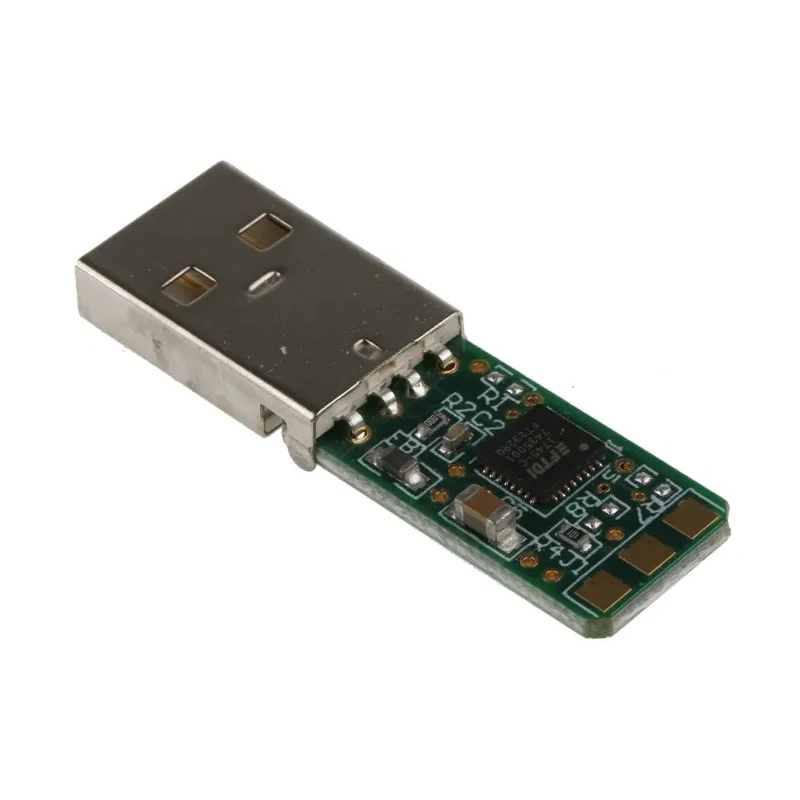

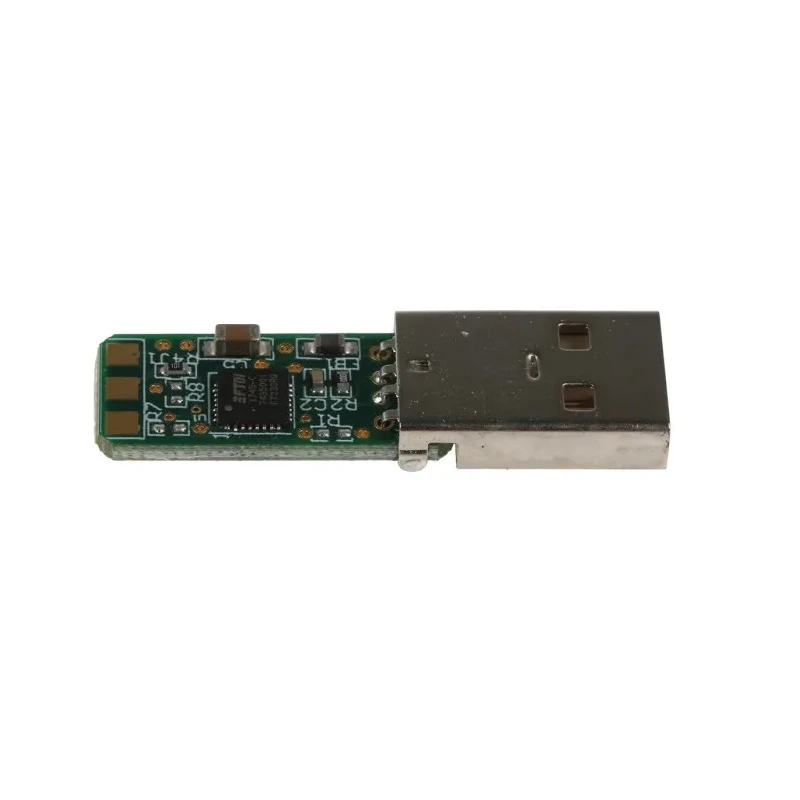

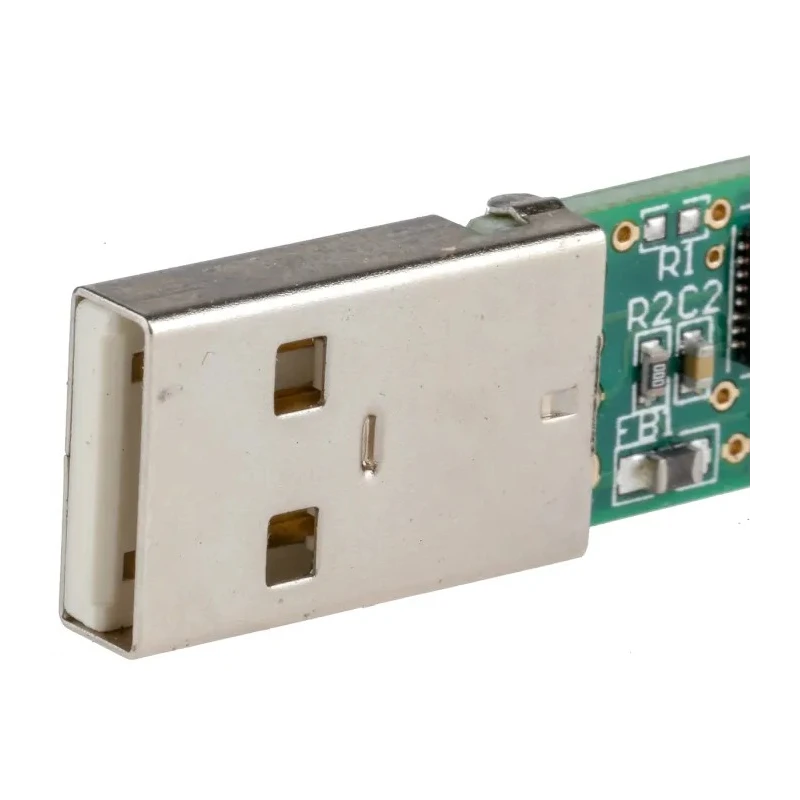

FTDI Chip TTL-232R-3V3-PCB 3.3 V TTL Evaluation Board is a USB to UART serial converter designed for microcontroller TTL interfaces. Featuring the FTDI FT232RQ USB to serial UART IC, this evaluation board handles all USB signalling and protocols, simplifying integration of TTL devices with USB hosts.

This PCB supports UART signalling at 3.3 V logic levels and enables data transfer speeds ranging from 300 baud up to 3 million baud. It is USB powered, eliminating the need for external power supplies, and can deliver 5 V or 75 mA power output.

The device includes a user-writable internal EEPROM, supporting customization and storing configuration settings. Additionally, it incorporates FTDI's security feature, the FT232R Chip-ID, providing enhanced security for applications.

This evaluation board is fully compatible with USB 2.0 full speed and standard host controllers including UHCI, OHCI, and EHCI, ensuring broad system compatibility.

Key industrial applications include USB to serial TTL conversion, upgrading legacy devices to USB connectivity, interface solutions for microcontrollers and FPGAs, USB instrumentation, industrial control, and security encryption dongles.

The product adheres to international standards such as RoHS compliance, ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic discharge protection. Supports 3.3 V UART signalling at TTL levels with FT232RQ IC integration.

USB powered solution, eliminating external power requirements. User-writable EEPROM for flexible configuration. Compatible with UHCI, OHCI, EHCI USB host controllers and USB 2.0 full speed. Wide industrial applications including instrumentation, control, and encryption.

Compliant with RoHS, ANSI/ESD S20.20, and BS EN 61340-5-1 standards. Features FTDI Chip-ID security enhancement for improved device protection.

This FTDI evaluation board is ideal for industrial, laboratory, development, and embedded system applications requiring efficient USB to TTL serial conversion. Explore our extensive range of communication and wireless development tools at EnvMart for further solutions and accessories.
