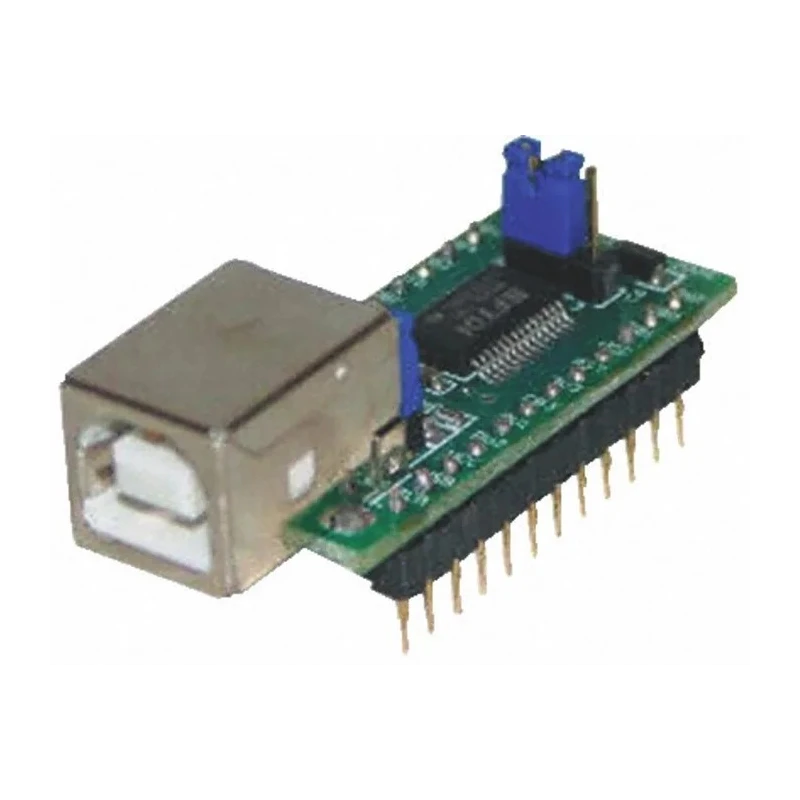

FTDI Chip USB-Serial UART Development Module UM232R with FT232RL, 48MHz, USB 2.0 Full Speed Compatible
Specifications
| Country of Origin | India |
|---|---|
| Brand | FTDI Chip |
| Model | UM232R |
| Technology | CMOS |
| Interfaces | USB protocol handled on the chip, no USB-specific firmware programming required |
| Interface Type | USB, UART |
| For Use With | Standard 0.6 in wide 24 pin DIP socket |
| Standards/Approvals | USB 2.0 Full Speed compatible, European Union directive 2002/95/EC, Pb-free (RoHS compliant) |
| Maximum Frequency | 48MHz |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Kit Classification | Development Board |
| Featured Device | FT232RL |
| Kit Name | UM232R USB-Serial UART Development Module |
Key Features
- This module supports USB to UART serial communication with high data throughput.
- It features integrated EEPROM for USB VID, PID, serial number, and configuration storage.
- The board is designed for standard 0.6 inch wide 24-pin DIP socket compatibility.
- Includes integrated power-on-reset circuit and USB resistors for reliable operation.
- Low operating current and USB suspend current minimize power consumption.
- Supports operating temperature range from -40°C to 85°C ensuring reliable performance in diverse environments.
- Applications include USB bar code readers, industrial control, medical applications, and encryption dongles.
- Built-in unique device ID makes it suitable for security dongle protection.
Product Description
FTDI Chip UM232R USB-Serial UART Development Module featuring the FT232RL IC provides a robust USB to UART interface for serial data communication. This development board operates at a maximum frequency of 48MHz and complies with USB 2.0 Full Speed standards.
The module supports USB data transfer rates ranging from 300 baud up to 1 Mega baud and includes integrated hardware features such as power-on-reset circuitry and USB resistors. Its CMOS technology ensures low power consumption with minimized USB bandwidth usage.
Designed for use with standard 0.6 inch wide 24-pin DIP sockets, it facilitates easy integration in embedded and industrial projects requiring USB serial interfaces.
Security applications benefit from the built-in unique chip ID burned during manufacture, enabling development of encryption dongles and secure USB devices. The internal 1024 bit EEPROM stores USB VID, PID, serial numbers, product descriptors, and CBUS I/O configurations, enabling flexible customization.
Common industrial applications include USB bar code readers, digital camera interfaces, hardware modems, medical instrumentation, MP3 player interfaces, smart card readers, wireless modems, and industrial control systems.
This USB-Serial UART development board integrates the FT232RL chip for efficient USB communication. Supports high data rates and low power operation for demanding applications. Compliant with RoHS and EU regulatory standards ensuring environmental compliance.
Operating temperature range suits diverse industrial and commercial environments. Provides a cost-effective solution for embedded system USB interfacing needs. This product is ideal for industrial, laboratory, communications, and commercial project needs requiring reliable USB to UART interfacing.
Explore more products in Communication & Wireless Development Tools on EnvMart for comprehensive industrial electronics solutions.
Explore more products in our Communication & Wireless Development Tool category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The UM232R module operates at a maximum frequency of 48MHz.
It supports USB and UART interfaces, with USB protocol handled directly on the chip without the need for USB-specific firmware programming.
This model is designed for use with standard 0.6 inch wide 24-pin DIP sockets.
It is compliant with USB 2.0 Full Speed standards and RoHS regulations.
The module utilizes CMOS technology, ensuring low power consumption and efficient operation.
The built-in unique device ID allows for security applications, such as the development of encryption dongles and secure USB devices.
The UM232R is manufactured in India.
