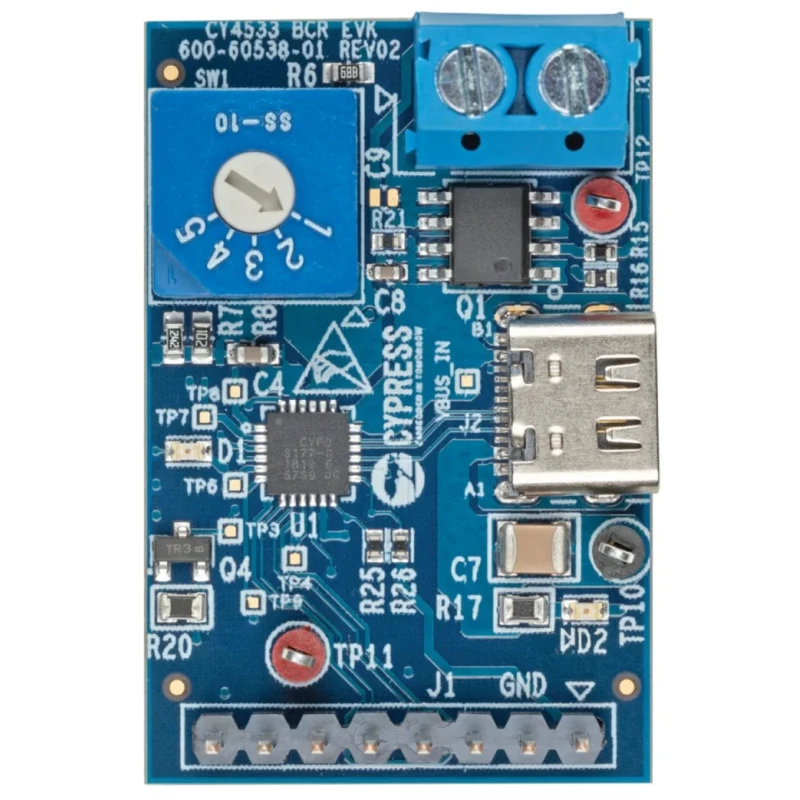

Infineon Highly Integrated USB Type C Port Controller EZ-PD Barrel Connector Replacement Evaluation Kit CY4533
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | CY4533 |
| Technology | Highly Integrated USB Type C Port Controller |
| Interfaces | USB Type-C and USB-PD Support |
| For Use With | Electronic Devices, Drones, Smart Speakers, Power Tools, And Other Rechargeable Devices |
| Standards/Approvals | Apple Charger specification, USB Type-C, IEC61000-4-2 level 4C, USB BC 1.2, USB Power Delivery (PD) |
| Maximum Frequency | 24MHz |
| Kit Classification | Evaluation Kit |
| Featured Device | CY4533 |
| Kit Name | EZ-PD Barrel Connector Replacement (BCR) Evaluation Kit |
Key Features
- Supports USB Power Delivery 3.0 version 1.1 including programmable power supply mode.
- Integrates USB Type-C port controller with on-chip overvoltage and system-level fault protection.
- Complies with Apple Charger specification, USB BC 1.2, USB PD, and IEC61000-4-2 level 4C standards.
- Features integrated oscillator eliminating external clock requirement.
- Supports up to 24 MHz maximum frequency with 24-pin QFN package.
- Operates within extended industrial temperature range from - 40 °C to +105 °C.
- Includes legacy charging sink block with 2.4A Apple charging support.
- System-level ESD protection on multiple pins enhancing reliability.
Product Description
Infineon CY4533 is a highly integrated USB Type C port controller designed for communication and wireless development tool applications such as electronic devices, drones, smart speakers, and power tools. This evaluation kit provides a comprehensive solution for USB Power Delivery, including programmable power supply modes and legacy charging support.
The kit supports USB PD 3.0 Version 1.1 specification and complies with industry standards including Apple Charger specification, USB BC 1.2, and IEC61000-4-2 level 4C for robust electrostatic discharge protection. Its integrated oscillator design eliminates the need for an external clock, simplifying system design.
Operating at a maximum frequency of 24 MHz, the CY4533 device is packaged in a compact 24-pin QFN package and supports extended industrial temperature range of - 40 °C to +105 °C, making it suitable for demanding industrial and commercial applications.
The evaluation kit features system-level fault protection such as VBUS to CC short protection and on-chip overvoltage protection. It integrates all required terminations on the D+/D- lines ensuring compatibility with a wide range of USB charging sources.
Designed for diverse applications, this kit facilitates development and testing in fields including industrial electronics, consumer electronics, IoT devices, and renewable energy systems. Typical use cases include USB-C power delivery management in rechargeable devices and enhanced charging support for smart tools and drones.
Supports USB Power Delivery 3.0 and legacy charging protocols. Highly integrated port controller with robust fault and ESD protections. Compliant with recognized USB and Apple charging standards. Compact QFN package with industrial temperature rating.
Eliminates external clock by integrating oscillator internally. Designed for efficient development in communication and wireless tools. Ideal for application in drones, electronic gadgets, and power tools. Set contains the EZ-PD Barrel Connector Replacement (BCR) Evaluation Kit featuring the CY4533 device to facilitate advanced USB Type-C power delivery development and testing.
Explore more products in the Communication & Wireless Development Tools category at EnvMart for a wide range of electronic development kits and components from leading brands.
Explore more products in our Communication & Wireless Development Tool category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CY4533 supports a maximum frequency of 24 MHz.
It complies with the Apple Charger specification, USB BC 1.2, USB Power Delivery (PD), and IEC61000-4-2 level 4C standards.
The CY4533 supports USB Type-C and USB Power Delivery interfaces.
It includes system-level fault protection such as VBUS to CC short protection and on-chip overvoltage protection.
The operating temperature range for this model is from -40 °C to +105 °C.
Yes, the integrated oscillator in the CY4533 eliminates the need for an external clock, simplifying system design.
The CY4533 is classified as an Evaluation Kit.
It is packaged in a compact 24-pin QFN package.
The kit features system-level ESD protection on multiple pins, enhancing reliability.
Yes, it is suitable for demanding industrial and commercial applications due to its extended temperature range and robust features.

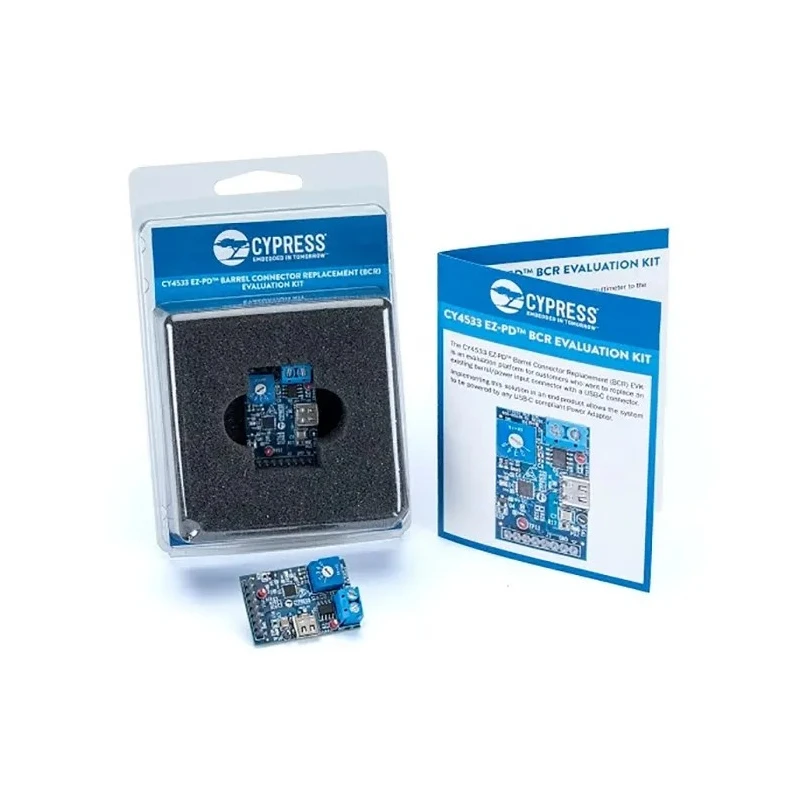

The kit includes the CY4533 device and is designed to facilitate advanced USB Type-C power delivery development and testing.
