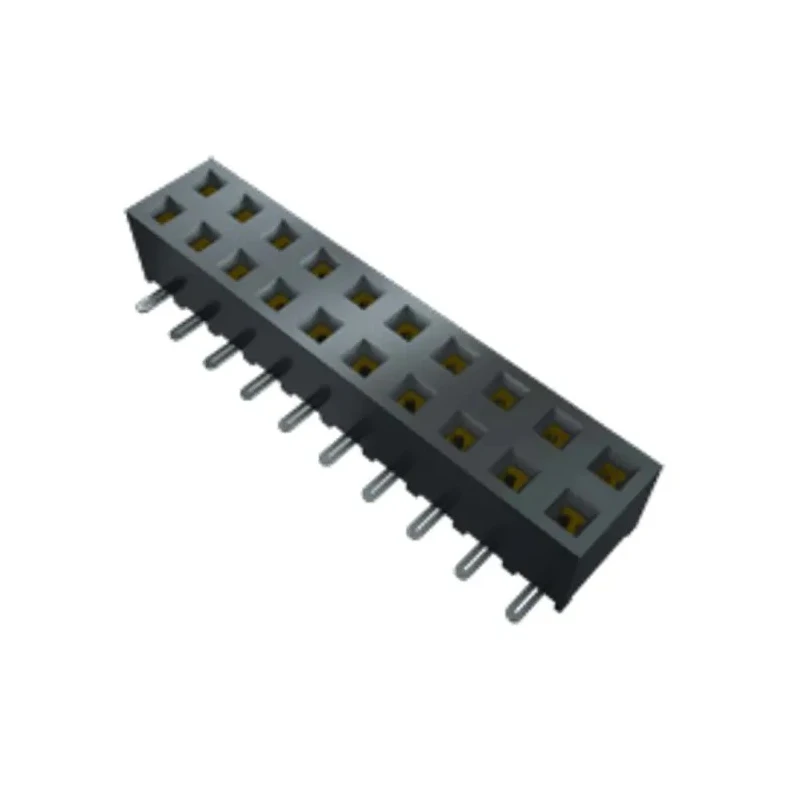

Samtec High-Reliability SMM Series Straight Surface PCB Socket 30-Contact 2 Row 2 mm Pitch Surface Mount SMM-115-01-S-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | SMM-115-01-S-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SMM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 1.27mm |
Key Features
- Constructed with black liquid crystal polymer housing for durability.
- Features beryllium copper alloy contacts with gold plating for enhanced conductivity.
- Supports a current rating of 3.2 A per pin with 2 pins powered.
- Wide operating temperature range from -55°C to 125°C.
- Designed for board-to-board connector systems with straight orientation.
- Offers 350 V voltage rating ensuring reliable performance.
- Surface mount termination for easy PCB assembly.
- RoHS compliant meeting environmental safety standards.
Product Description
Samtec SMM-115-01-S-D is a high-reliability straight surface mount PCB socket featuring a 30-contact configuration arranged in 2 rows, each with a 2 mm pitch. Manufactured with premium black liquid crystal polymer housing, this socket is designed for optimal durability and performance in electronics applications.
The contacts are made of beryllium copper alloy, plated with gold to ensure superior conductivity and corrosion resistance. It supports a current rating of 3.2 amperes per pin with dual pins powered, making it suitable for demanding electrical loads.
Operating within a broad temperature range from minus 55 degrees Celsius up to 125 degrees Celsius, the socket maintains stable performance in harsh industrial environments. With a voltage rating of 350 volts, it guarantees safe and reliable board-to-board connections.
The component is designed with a surface mount termination style and a straight orientation, facilitating seamless integration into printed circuit boards. Its 1.27 mm row pitch and 2 mm contact pitch maintain precise alignment and connectivity for complex electronics.
Being RoHS compliant, this PCB socket adheres to environmental and safety standards essential for modern manufacturing processes. Durable black liquid crystal polymer housing. Beryllium copper alloy contacts plated with gold.
Supports 3.2 A current rating per pin. Wide operating temperature from -55°C to 125°C. 350 V voltage rating suitable for various applications. Board-to-board connector system with surface mount termination. Straight orientation for reliable connections.
RoHS compliant for environmental safety.
This PCB socket is widely used in industrial, electronics manufacturing, telecommunications, and other applications requiring robust and precise board-to-board connections. Discover more products in the PCB Sockets category at EnvMart for your electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3.2 A per pin with two pins powered.
The voltage rating is 350 V, ensuring reliable performance in various applications.
The housing is made of black liquid crystal polymer, and the contacts are beryllium copper alloy with gold plating for enhanced conductivity.
It operates within a wide temperature range from -55°C to 125°C.
This PCB socket features 30 contacts arranged in 2 rows.
It utilizes a surface mount termination style, making it suitable for easy PCB assembly.
The contact pitch is 2 mm, with a row pitch of 1.27 mm.
The socket is designed with a straight orientation for board-to-board connections.
Yes, it is RoHS compliant, meeting environmental safety standards.
It is designed for board-to-board connector systems.
The SMM-115-01-S-D is manufactured in India.
It is widely used in industrial, electronics manufacturing, telecommunications, and other applications requiring robust and precise board-to-board connections.
